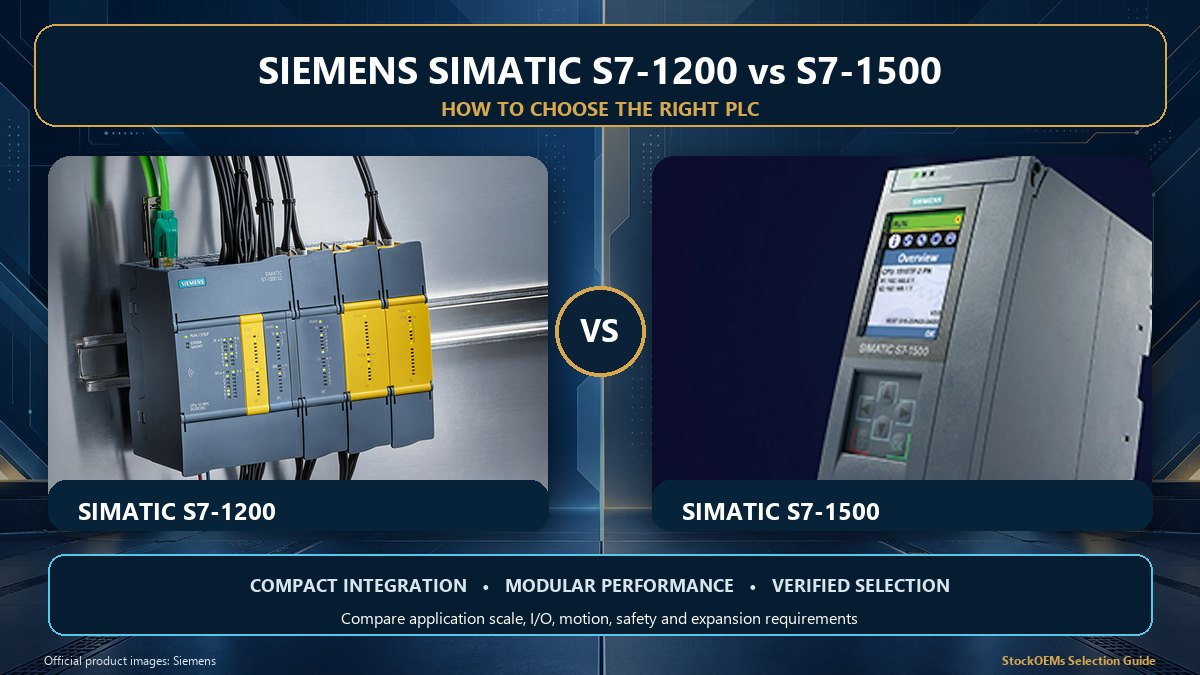

Siemens positions S7-1200 Basic Controllers for applications in the low-to-mid performance range, where integrated inputs, outputs and technology functions support compact and cost-conscious solutions. SIMATIC S7-1500 is a modular high-performance controller family for demanding machines and industrial processes. The practical choice depends on control workload, signal count, communication, motion, safety, diagnostics and future expansion—not simply on cabinet appearance or a familiar CPU name.
| Decision Area | SIMATIC S7-1200 | SIMATIC S7-1500 |
|---|---|---|
| Project scale | Compact machines, skids and smaller automation cells. | Complex machines, coordinated lines and plant systems. |
| I/O structure | Integrated I/O with verified signal and communication expansion. | Modular signal, technology and communication modules. |
| Motion | Integrated functions for compact motion tasks. | Motion on every CPU; T-CPUs extend advanced functions. |
| Safety | Standard and fail-safe hardware options. | F and TF CPUs for safety and combined motion requirements. |
| Expansion | Best when compact integration remains the priority. | Designed for scalable central or distributed configurations. |
|
When S7-1200 Fits Better
Choose S7-1200 when the machine needs a compact controller, integrated I/O and straightforward expansion without the scale of a larger modular platform. It suits OEM equipment, utility skids and localized control where the verified CPU, power and I/O variant meets the documented requirement. |
When S7-1500 Fits Better
Choose S7-1500 when the application needs higher performance, broad modular expansion, advanced motion, fail-safe functions or a controller platform for complex machines and plant sections. CPU class and module selection should reflect the real workload and availability requirement. |
A family-level comparison cannot establish interchangeability. Record the complete Siemens MLFB, CPU designation, supply and I/O variant, firmware, TIA Portal version, communication interfaces, expansion modules and safety or motion requirements. Siemens states that S7-1200 G2 is not hardware-compatible with the previous S7-1200 generation, so treat that move as a migration rather than a drop-in swap. Moving between S7-1200 and S7-1500 also requires a reviewed hardware and engineering plan.
For a new design, estimate program workload, I/O count, axis requirements, diagnostics, networking and expected expansion before selecting the family and CPU. For an installed machine, begin with the nameplate and project archive, then compare the exact replacement code and surrounding modules. Procurement teams should send quantity and clear label photographs so engineering and sourcing review the same requirement before quotation.
Use these StockOEMs product references as starting points. Confirm the complete MLFB, generation, firmware, module role, quantity and label information before ordering.
| Model | Series | Hardware Role / Description |
|---|---|---|
| 6ES7214-1AG40-0XB0 | S7-1200 | SIMATIC S7-1200 CPU 1214C compact CPU |
| 6ES7212-1AG50-0XB0 | S7-1200 G2 | CPU 1212C compact controller |
| 6ES7214-1AH50-0XB0 | S7-1200 G2 | CPU 1214C compact controller |
| 6ES7215-1AG31-0XB0 | S7-1200 | CPU 1215C compact controller |
| 6ES7221-1BH32-0XB0 | S7-1200 | SM 1221 digital input module |
| 6ES7222-1BF32-0XB0 | S7-1200 | SM 1222 digital output module |
| 6ES7231-4HF32-0XB0 | S7-1200 | SM 1231 analog input module |
| 6ES7241-1EA50-0XB0 | S7-1200 G2 | CM 1241 communication module |
| 6ES7513-1FL01-0AB0 | S7-1500F | CPU 1513F-1 PN |
| 6ES7511-1FK02-0AB0 | S7-1500F | CPU 1511F-1 PN |
| 6ES7512-1CK00-0AB0 | S7-1500 | Compact CPU 1512C-1 PN |
| 6ES7515-2TM01-0AB0 | S7-1500T | CPU 1515T-2 PN |
| 6ES7516-3TN00-0AB0 | S7-1500T | CPU 1516T-3 PN/DP |
| 6ES7517-3AQ10-0AB0 | S7-1500 | CPU 1517-3 PN |
| 6ES7531-7NF00-0AB0 | S7-1500 | SM 531 analog input module |
| 6ES7518-4TP00-0AB0 | S7-1500T | CPU 1518T-4 PN/DP |
