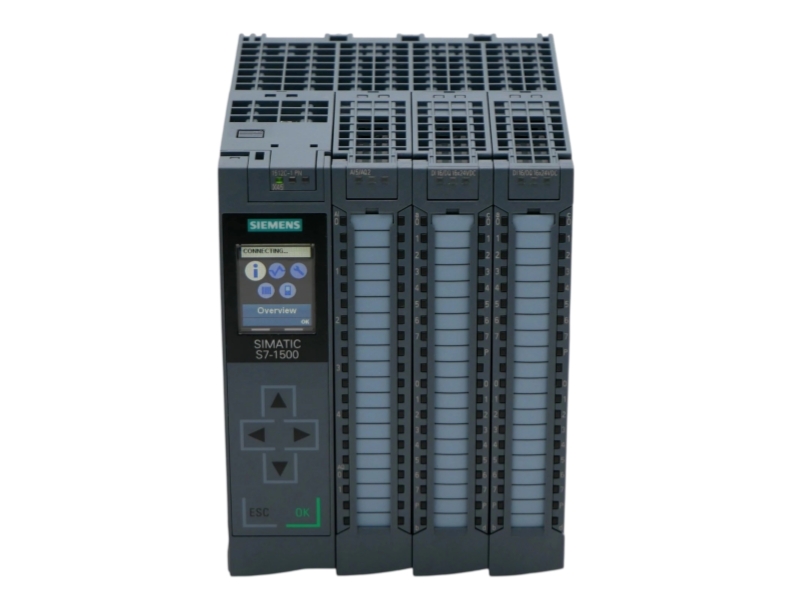

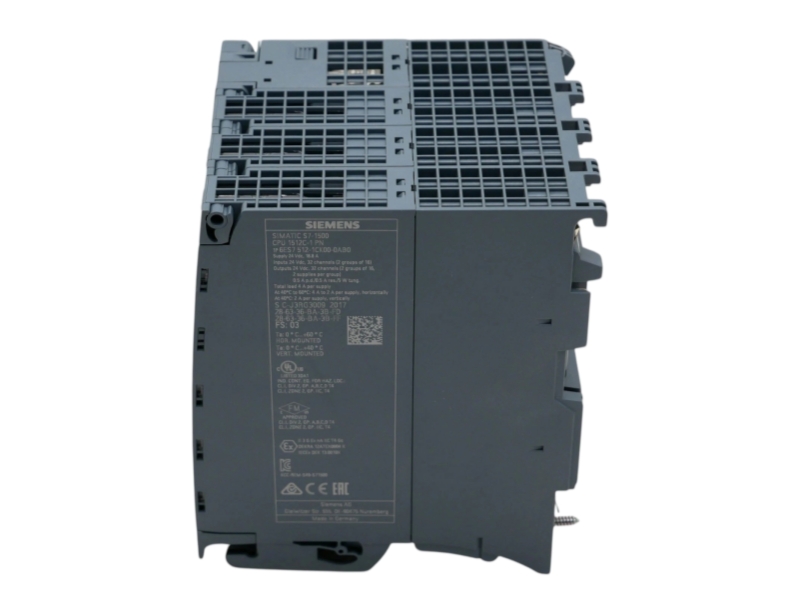

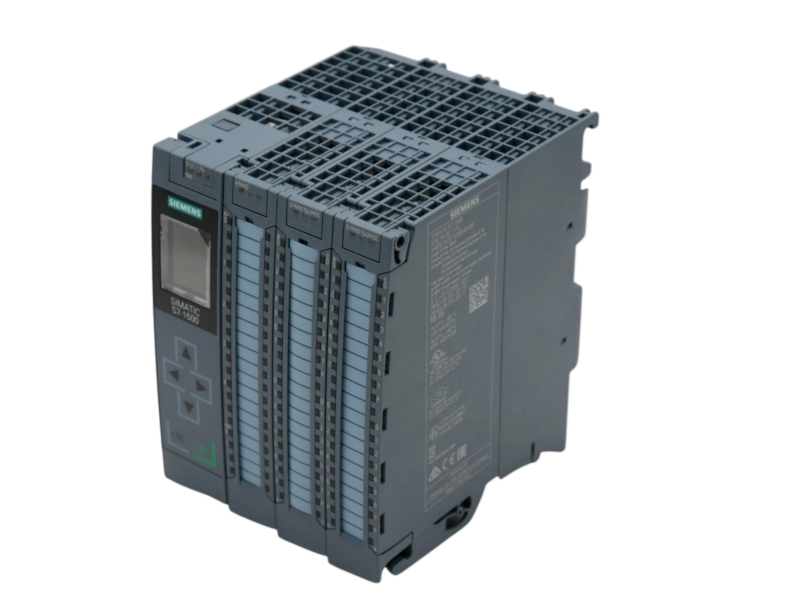

SIMATIC S7-1500 · COMPACT CPU
Compact automation controller with integrated digital and analog I/O, high-speed technology functions and PROFINET IRT.
Siemens 6ES7512-1CK00-0AB0 is a SIMATIC S7-1500 CPU 1512C-1 PN compact controller combining CPU processing, onboard digital and analog I/O, high-speed counters and technology outputs. Siemens specifies 250 KB program memory, 1 MB data memory and a PROFINET IRT interface with an integrated two-port switch. The controller supports motion-control and PID functions and requires a SIMATIC Memory Card. Procurement or replacement planning should verify the complete suffix, hardware and firmware level, TIA Portal project version, memory card, terminal assignments, field voltage, network parameters and readable product-label evidence.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; cancelled since 2018-07-09 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7512-1CK00-0AB0 |
| Product Type | SIMATIC S7-1500 compact CPU |
| Product Designation | CPU 1512C-1 PN |
| Hardware Functional Status | FS03 |
| Firmware Version | V2.9 |
| Program Work Memory | 250 KB |
| Data Work Memory | 1 MB |
| Digital Inputs | 32 integrated |
| Digital Outputs | 32 integrated |
| Analog Inputs | 5 integrated |
| Analog Outputs | 2 integrated |
| High-Speed Counters | 6 |
| High-Speed Outputs | 4 for PTO, PWM or frequency output |
| Communication Interface | PROFINET IRT with integrated 2-port switch |
| Bit Performance | 48 ns |
| Rated Supply Voltage | 24 V DC; permissible 19.2 to 28.8 V |
| Engineering | STEP 7 TIA Portal V17 for FW V2.9; V13 SP1 Update 4 for FW V1.8 or higher |
| SIMATIC Memory Card | Required |
| Front Connector | Push-in front connector included |
| Net Weight | 1.584 kg |
| Country of Origin | Germany |
| Compact Machine Control | Combines controller processing and onboard I/O for compact production equipment. |
|---|---|
| Motion and Counting | Supports high-speed counting, PTO, PWM, frequency output and S7-1500 Motion Control tasks. |
| Process Regulation | Provides integrated analog channels and PID functions for measurement and closed-loop control. |
| Maintenance Replacement | Used where the original CPU, I/O assignments, project version and network configuration remain aligned. |
Match every character in 6ES7512-1CK00-0AB0 with the CPU label.
Verify FS status, firmware level, display and installed option condition.
Confirm STEP 7 TIA Portal version, compiled project and retained configuration.
Review terminal assignments, 24 V supply, channel modes, loads and field wiring.
Check PROFINET device name, IP data, topology and the SIMATIC Memory Card.
Assess 6ES7512-1CK01-0AB0 separately; do not assume a direct replacement without project checks.
Siemens Industry Mall lists 6ES7512-1CK00-0AB0 as PM410: Product cancellation and records cancellation since 2018-07-09. Siemens identifies 6ES7512-1CK01-0AB0 as the successor. The status is retained exactly and is not rewritten as a different lifecycle term.
It identifies the SIMATIC S7-1500 CPU 1512C-1 PN compact controller with integrated I/O and PROFINET IRT.
Siemens specifies 32 digital inputs, 32 digital outputs, 5 analog inputs and 2 analog outputs.
Yes. Siemens specifies that a SIMATIC Memory Card is required for this CPU.
Siemens lists PM410: Product cancellation and records cancellation since 2018-07-09.
Verify the complete suffix, hardware and firmware, TIA Portal project, memory card, I/O wiring, network parameters and successor compatibility.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT SUPPORT
Identity control, compatibility review, documented inspection, protective packaging and coordinated international logistics.
| 01 | Model and suffix verification | The complete article number and every suffix character are checked against order records and label evidence. |
|---|---|---|
| 02 | Condition confirmation | Housing, display, I/O sections, connectors and supplied accessories are reviewed. |
| 03 | Technical compatibility review | CPU revision, firmware, TIA Portal project, I/O assignments, memory card and PROFINET data are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging photos can be requested. |
| 05 | Protective packaging | The CPU, display, connectors and supplied accessories are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review under the agreed commercial terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, wiring and installation evidence. |
Check whether the supplier verifies the complete suffix, provides readable label and condition photos, discusses compatibility limits, records warranty and return terms, protects the equipment and supplies traceable shipment documents.
Warning signs include blurred labels, substituted suffixes, unsupported parameter claims, unclear condition descriptions, missing inspection evidence, unrecorded return terms and payment requests that do not match the stated company identity.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
