Specific Application

• Single-axis closed-loop motion positioning control within high-precision FANUC CNC machine tools.
• Driving standalone feed axes (L-axis) on automated lathes, small industrial mills, or specialized grinders.
• Actuating dynamic tool carousels or material handlers requiring stable 230V AC multi-turn servo response.

System Compatibility and Alternatives

System Compatibility:
Fully compatible with FANUC ALPHA power supply modules (PSM series) that supply a 283–325 V DC shared bus voltage. Interfaces directly with FANUC CNC system controllers via internal optical or serial I/O communication command lines.

Alternative Model:
A06B-6096-H103 (ALPHA SVM1-20L lower-current module) or newer ALPHA i-series single-axis modules (e.g., A06B-6114 series).

Difference from Alternative Model:
The A06B-6096-H104 features a larger internal IGBT bridge configured to deliver a robust 12.5A rated continuous drive current, whereas the alternative H103 model is physically restricted to smaller motors due to its lower peak and continuous thermal limits. When compared to newer i-series (A06B-6114) hardware platforms, the H104 uses legacy alpha series communication links, making it a direct slide-in drop replacement that avoids extensive parameter redesigns or cable modifications.

Theory of Operation

The A06B-6096-H104 operates as an intelligent energy inverter that translates high-voltage DC bus power into controlled multi-phase AC motor trajectories. The module accepts raw 283–325 V DC from a common power supply line into its internal capacitor reservoir. Guided by serial position and current loop demands sent from the central CNC rack, an on-board micro-controller commands high-frequency PWM gating cycles across an internal intelligent power module (IPM). This modulation converts the DC input into a precise 230V AC three-phase sinusoidal current output, pushing up to 12.5A on the L-axis to maintain highly accurate shaft speed and encoder alignment.

Installation & Troubleshooting FAQ

Q1: What are the primary spacing and ventilation rules for mounting this 5 Kg amplifier?

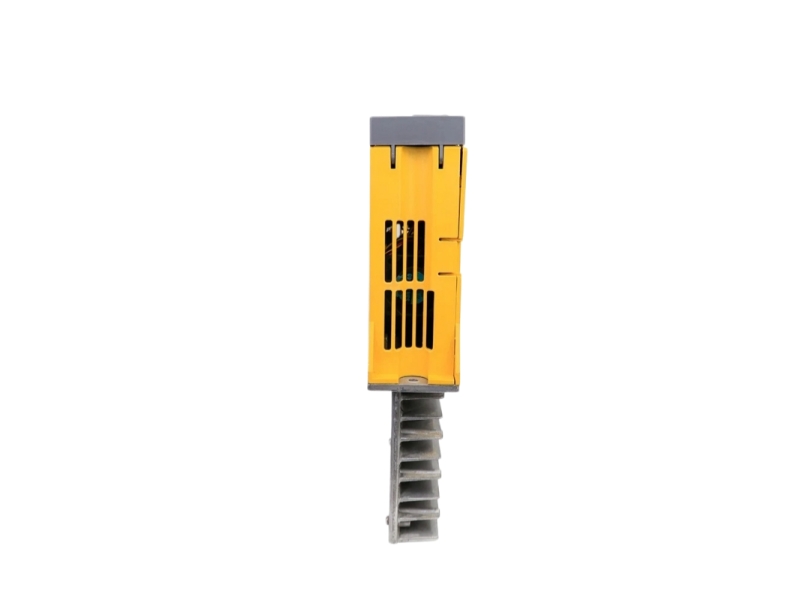

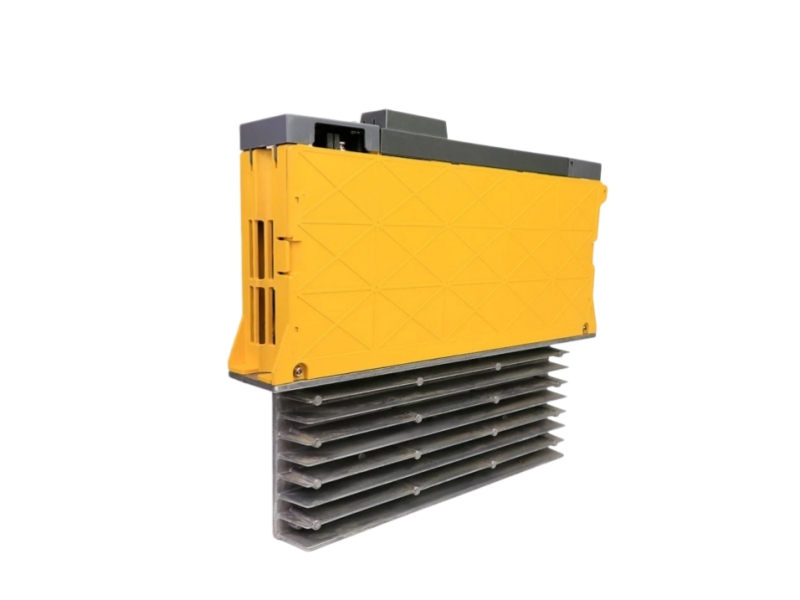

A: Due to its compact 5 Kg footprint and integrated aluminum rear heatsink fins, the amplifier must be mounted vertically inside a dust-tight enclosure. Maintain a minimum clear boundary space of 100mm above and below the cooling pathways to maximize natural convection and prevent localized thermal loops inside the cabinet.

Q2: Why is the CNC screen showing a "DC Bus Low Voltage" or "Soft Charge Error" code?
A: This condition usually points to a loose high-voltage DC connection pin or a diagnostic failure originating at the master power supply module. Isolate the absolute source line, measure the input voltage to ensure it reads between 283–325 V DC across the shared top terminals, and guarantee all copper linking bars are torqued tight.

Q3: How do I resolve erratic motor hunting or sudden positioning deviations under heavy load?
A: Erratic servo feedback is often triggered by electromagnetic interference leaking into the feedback path. Verify that the power lines running to the AC servo motor are properly separated from the low-voltage encoder wires, and ensure that the braided motor cable shields make solid, bare-metal contact with the cabinet grounding plate.
