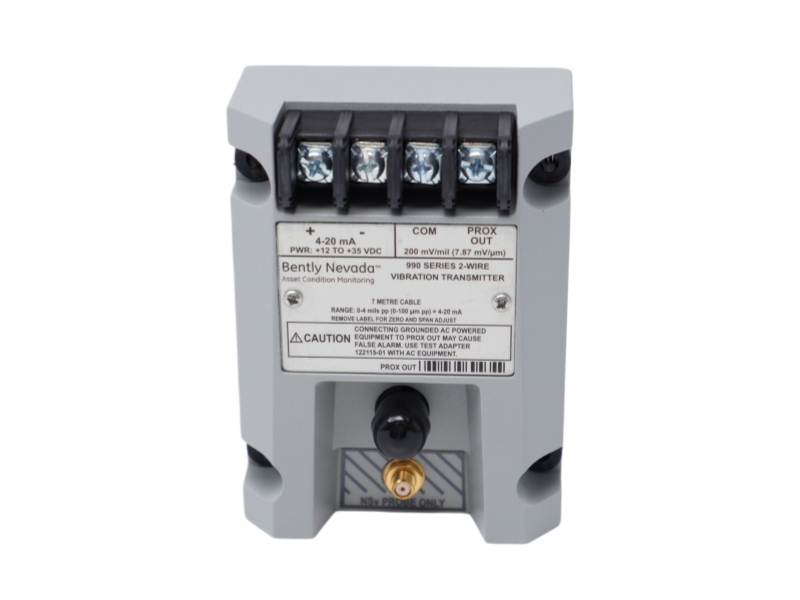

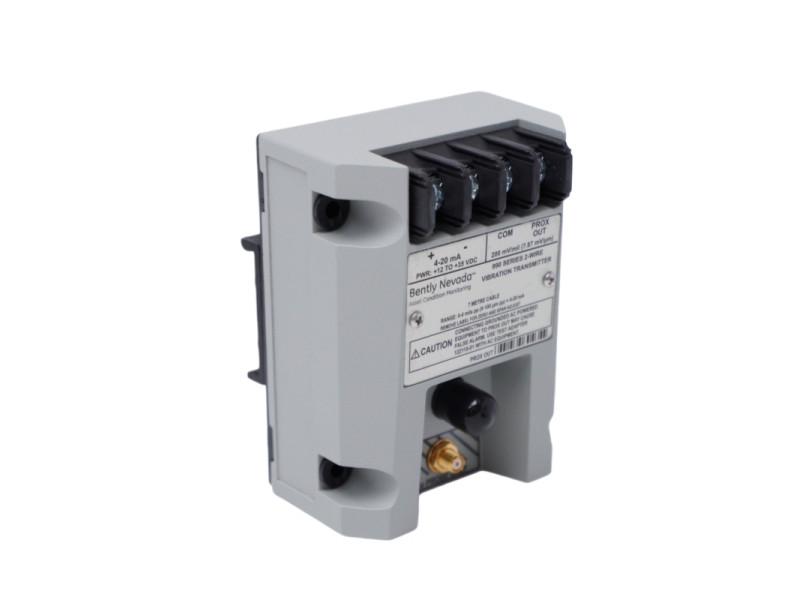

A two-wire 4-20 mA vibration transmitter configured for a 0-4 mil pp range, 7.0 m NSv system, 35 mm DIN-rail clips and multiple industrial and maritime approvals.
| Ordering field | Confirmed configuration |
|---|---|
| Manufacturer | Bently Nevada |
| Complete part number | 990-04-70-01-05 |
| Product type | 990 two-wire vibration transmitter |
| Full-scale range | 0-4 mils pp (0-100 micrometres pp) |
| System length | 7.0 m (23 ft) |

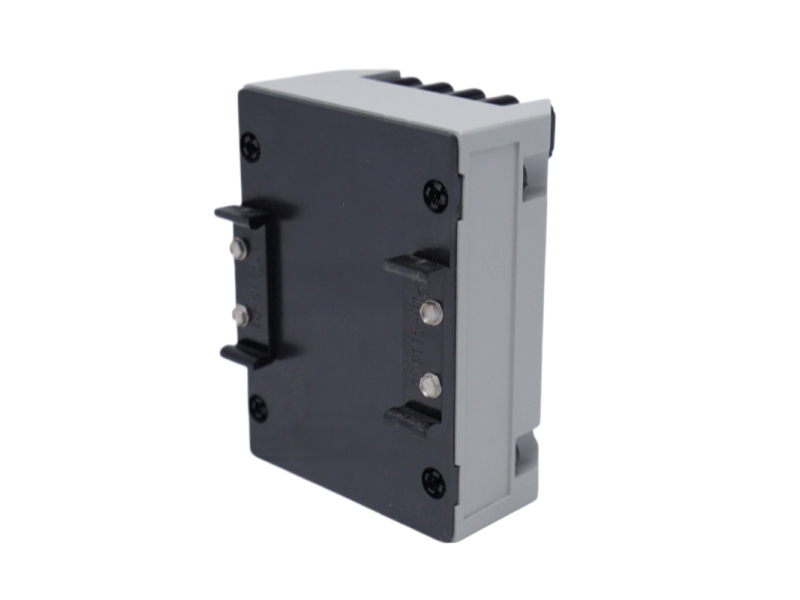

| Mounting | 35 mm DIN-rail clips |
| Approval option | CSA Division 2, ATEX Zone 0, ATEX Zone 2 and ABS maritime approval |
| Input | One 3300 NSv probe and extension cable |
| Supply | +12 to +35 Vdc |
| Output | 4-20 mAdc, two-wire configuration |
| Condition | Contact us to confirm |
| Hardware revision | Contact us to confirm |
| Availability | Contact us to confirm |
| Warranty | 12 months under written quotation terms |
| Shipping | Worldwide shipping available; terms confirmed in quotation |
| Country of origin | Contact us to confirm |
| Compatibility | Confirm NSv probe, extension cable, system length, loop power and receiving input |
The 990-04-70-01-05 converts the vibration signal from a matched 3300 NSv proximity system into a two-wire 4-20 mA loop signal. This exact suffix selects a 0-4 mil pp measurement span, 7.0 m system length, 35 mm DIN-rail mounting clips and a combined approval option. It is suited to machinery packages that use conventional loop-powered monitoring and control inputs. Before ordering, confirm the existing transmitter label, loop voltage and resistance, NSv probe and extension-cable length, mounting method, approval requirement and desired full-scale range.
The transmitter accepts +12 to +35 Vdc. Maximum loop resistance is 1000 ohms at 35 Vdc. The buffered Prox Out has a 1.4 mm linear range and a typical scale factor of 7.87 mV per micrometre (200 mV per mil). A minimum 9.5 mm target is specified for the proximity system. Verify receiving-card scaling and loop burden before commissioning.
Transmitter operating temperature is -35 to +85 C; storage temperature is -52 to +100 C. The system supports 100% condensing humidity when non-submerged and connectors are protected. Install on the specified 35 mm DIN rail, maintain accessible terminals, keep probe wiring separate from noisy power conductors and follow the applicable approval installation requirements.
Confirm the complete 990-04-70-01-05 suffix, full-scale range, 7.0 m matched NSv system, loop supply, load resistance, DIN-rail format, approval marking and receiving-card scaling. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Condition is established in the written quotation. Inspection can cover label and suffix verification, enclosure and terminal review, serial-number recording and an applicable loop-output check. Worldwide shipping can be arranged with protected terminals and export packaging. Warranty is 12 months under written quotation terms.
The 04 range code specifies 0-4 mils pp, equivalent to 0-100 micrometres pp.
The 70 code specifies a 7.0 m matched probe-and-extension-cable system.
It provides a two-wire 4-20 mA output, but the loop supply, receiving-card scaling and resistance must be checked.
The option covers CSA Division 2, ATEX Zone 0, ATEX Zone 2 and ABS maritime approval; confirm the delivered marking.
Yes. Ask for available product and label photos when requesting the quotation.
