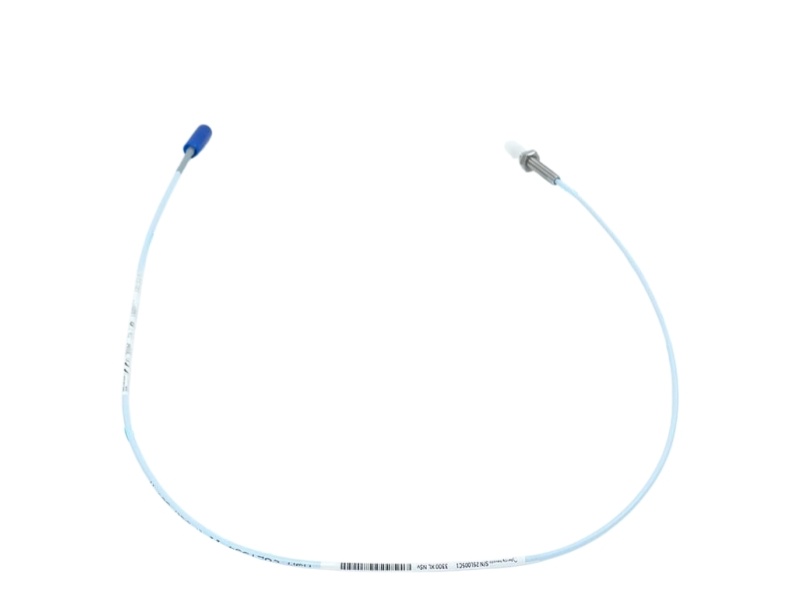

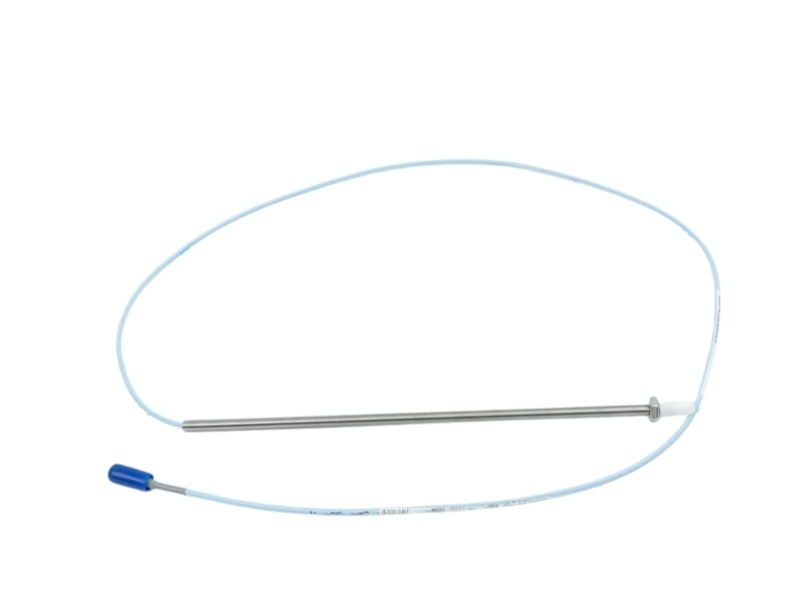

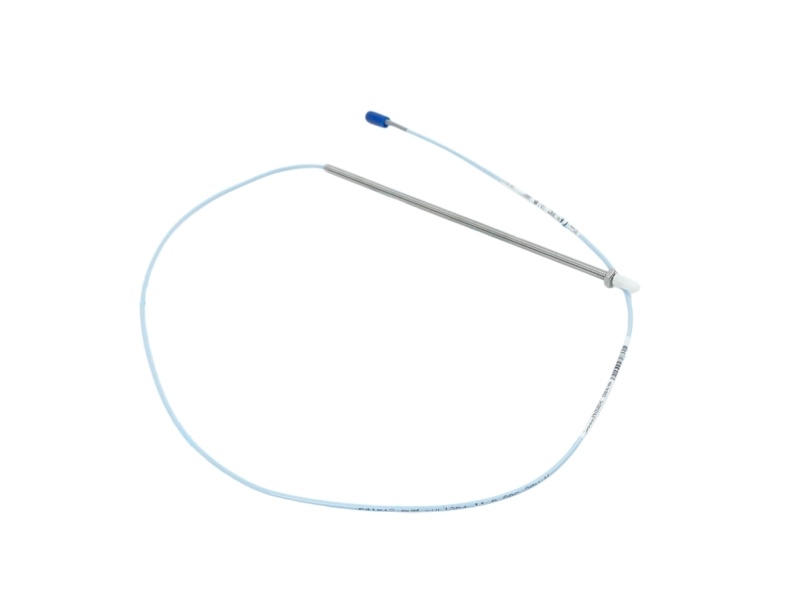

Bently Nevada 330901-00-55-05-02-05 is an unarmored 3300 NSv proximity probe with a 1/4-28 UNF thread. Its ordering code defines zero unthreaded length, a 5.5-inch overall case length, a 0.5-meter total length, a miniature coaxial ClickLoc connector with standard cable, and the multiple-approvals option. The NSv family is intended for restricted counterbore, side-view or rear-view installations and small target applications. Use this model for maintenance or replacement planning only after the matching NSv extension cable, Proximitor Sensor, target geometry, system length and approval markings have been confirmed.
| Manufacturer | Bently Nevada |
| Complete Part Number | 330901-00-55-05-02-05 |
| Product Type | 3300 XL NSv Proximity Probe |
| Series | 3300 XL NSv Proximity Transducer System |
| Model Configuration | 1/4-28 UNF; unarmored; 0.0 in unthreaded length; 5.5 in case; 0.5 m total length; standard ClickLoc cable; approvals option 05 |
| Product Condition | Contact us to confirm. |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | Contact us to confirm. |
| Compatibility | Use only with a correctly matched NSv extension cable and Proximitor Sensor. Confirm total length, target geometry and approval markings. |
| Certification | Multiple approvals option selected; confirm the actual product markings and installation requirements. |
| Warranty | Contact us to confirm. |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| 330901 | 1/4-28 UNF NSv probe without armor |
| 00 | 0.0 in unthreaded length |
| 55 | 5.5 in overall case length |
| 05 | 0.5 m (20 in) total length |
| 02 | Miniature coaxial ClickLoc connector with standard cable |
| 05 | Multiple approvals option |
System-level values apply only when required components and installation conditions match the manufacturer documentation.
| Construction | Unarmored standard-mount proximity probe |
| Thread | 1/4-28 UNF |
| Total length | 0.5 m (20 in) |
| System linear range | 1.5 mm (60 mils), approximately 0.25 to 1.75 mm |
| Recommended system gap | 1.0 mm (40 mils) |
| System scale factor | 7.87 V/mm (200 mV/mil), with published tolerance |
| System frequency response | 0 to 10 kHz, +0/-3 dB typical |
| Probe temperature range | -52 to +177 degrees C; observe the official pressure-seal caution |
Match the complete suffix, 0.5-meter probe length, extension cable and NSv Proximitor Sensor so total system length is correct. Confirm the 1/4-28 UNF thread, 5.5-inch case, target geometry, mounting clearance, connector and approval label. Replacing an older family may require the complete probe, cable and Proximitor Sensor chain.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented procurement path for compatibility, packaging, shipment and after-sales communication.
The complete 330901-00-55-05-02-05 identity is compared with the request and available labels.
Condition and packaging details are confirmed in writing before order acceptance.
Supplied system, interface, dimensions and revision details are reviewed without presenting the product as an automatic substitute.
Available product, connector and label photos can be checked before shipment when requested.
Packaging is selected to protect the product, connectors and exposed surfaces during transport.
International options are quoted after destination and export requirements are known.
Tracking details are provided after carrier collection when supported by the service.
Commercial shipping documents follow the confirmed transaction and destination requirements.
Any warranty scope and duration are stated in the written quotation.
Returns require prior authorization under the written transaction terms.
Post-delivery questions use the order record, product labels and reported symptoms.
Share the complete model, quantity, destination and label photos for documented checks.
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
