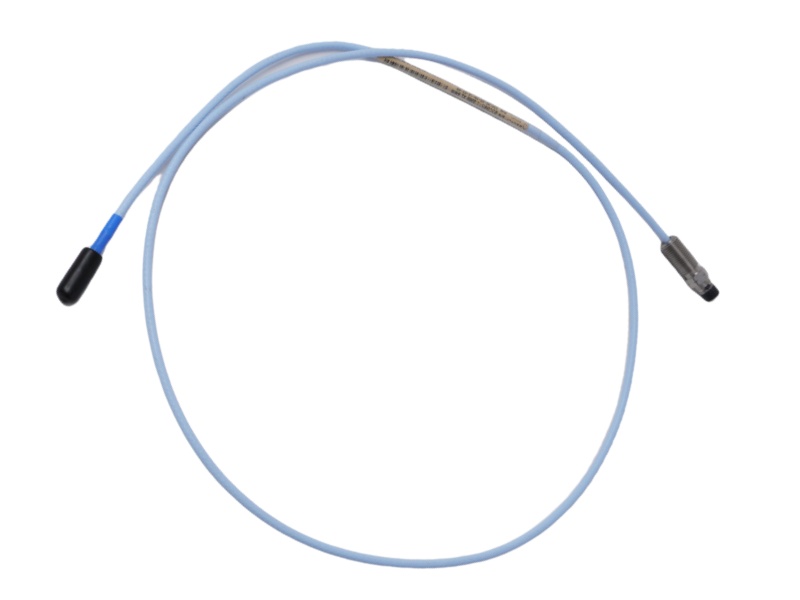

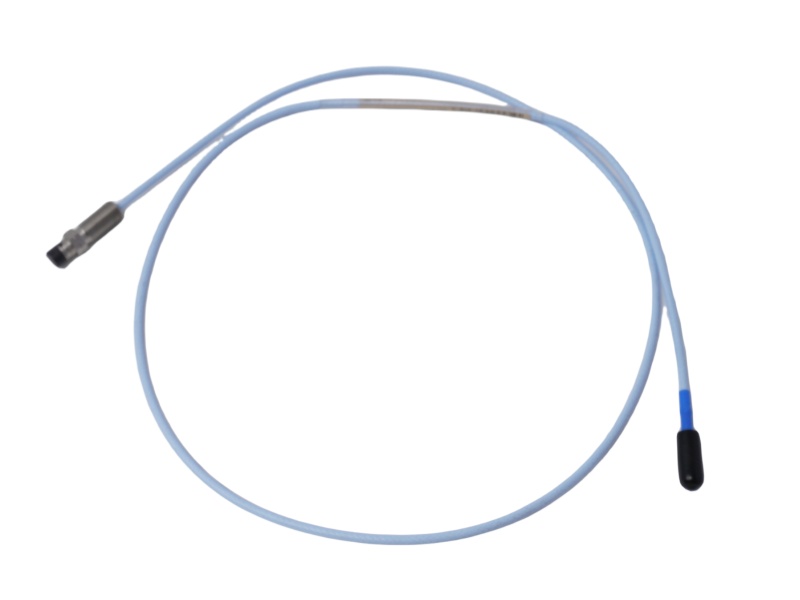

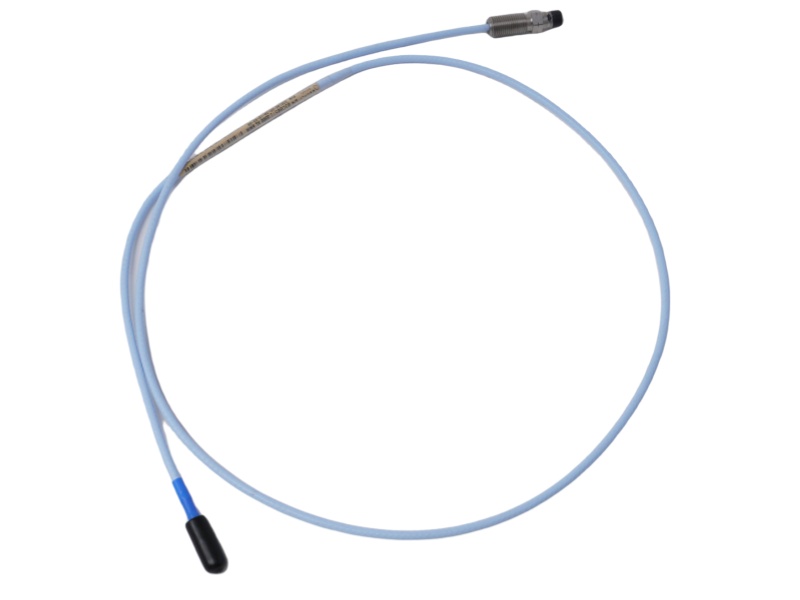

The 3300 Series 330106-05-30-10-02-00 is an 8 mm reverse mount proximity probe from the 3300 XL series, designed for condition monitoring and machinery protection. Featuring M10×1 threads and a 1-meter (3.3 ft) cable length, this probe is engineered for easy integration into vibration and position measurement systems. Its Miniature ClickLoc™ coaxial connector ensures secure, tool-free installation, while the reverse-mount configuration allows flexible placement in space-constrained applications. The Bently Nevada Proximity Probe 3330106-05-30-10-02-00 delivers precise eddy current measurements for both static gap (position) and dynamic vibration monitoring in fluid-film bearing machinery.

As part of Bently Nevada's high-performance 3300 XL transducer system, the 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probe works seamlessly with XL extension cables and Proximitors. The system generates an output voltage proportional to the distance between the probe tip and target surface, enabling accurate Keyphasor® and speed measurements. While this probe lacks optional armor or connector protection, its robust TipLoc and CableLoc designs ensure durability in most industrial environments. The probe complies with API 670 standards for linearity, temperature stability, and mechanical configuration.

The 330106 Bently Nevada Sensor Probe Cable Extension is backward compatible with non-XL 5 mm and 8 mm transducer systems, offering interchangeability without recalibration. This feature simplifies maintenance and reduces downtime in critical applications like turbines, compressors, and pumps. Its 1-meter cable length provides installation flexibility, though users must ensure matched electrical lengths when pairing with 3300 XL extension cables and Proximitors for optimal signal integrity.

Ideal for harsh industrial settings, the 3300 XL 8 mm Proximity 330106-05-30-10-02-00 excels in applications requiring reliable, high-accuracy measurements. While not suited for extreme physical abuse or fluid exposure (due to the lack of armor/FluidLoc options), its patented probe-tip bonding and 75 lbf pull-strength cable deliver long-term reliability. For complete machinery protection systems, pair this probe with Bently Nevada’s 3300 XL Proximitors and armored cables to meet API 670 and global safety certifications.
