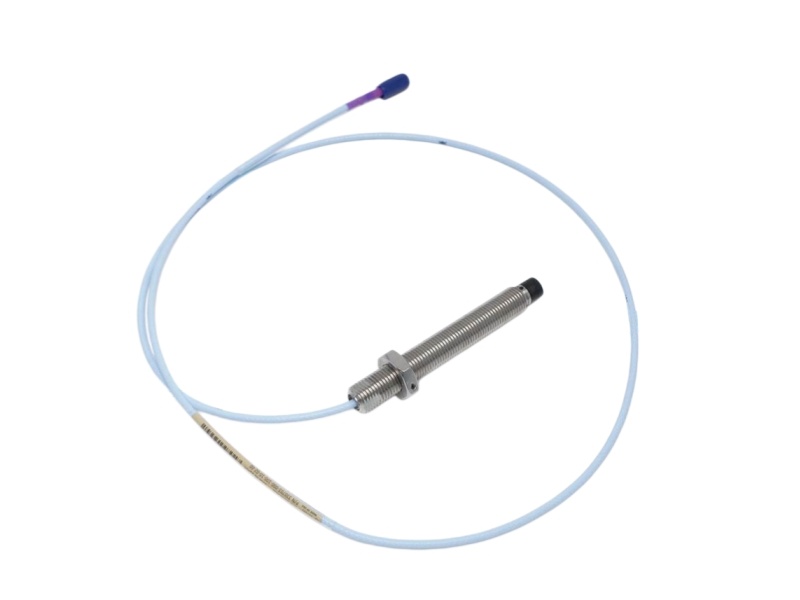

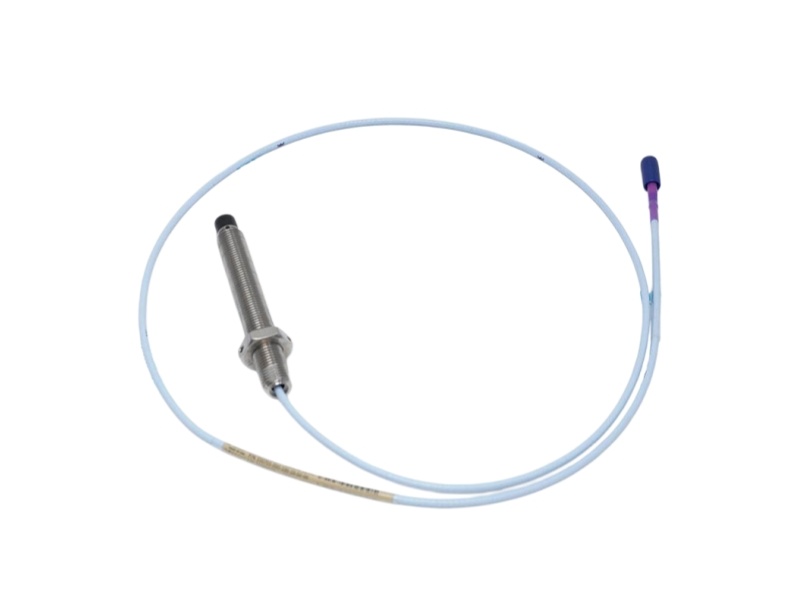

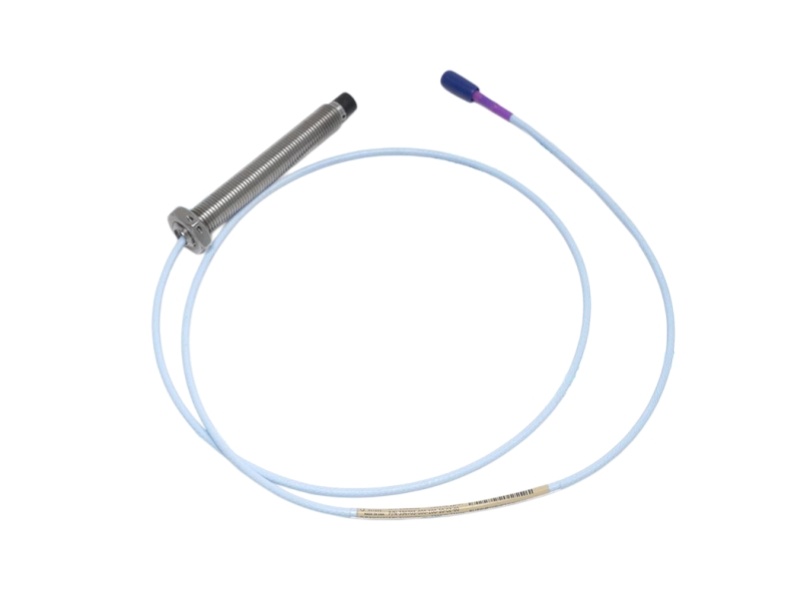

Bently Nevada 330703-000-090-50-02-00 is an unarmored 3300 XL 11 mm proximity probe with an M14 x 1.5 thread. Its exact suffix defines 0 mm unthreaded length, a 90 mm overall case length, a 5.0-meter total length, and a miniature coaxial ClickLoc connector with standard cable; agency approval is not required by option 00. The 11 mm system provides a longer linear range than the standard 8 mm system for thrust position, differential expansion and other displacement applications. Confirm the matching 5-meter Proximitor Sensor, target material, dimensions and complete system configuration before ordering.
| Manufacturer | Bently Nevada |
| Complete Part Number | 330703-000-090-50-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL 11 mm Proximity Transducer System |
| Model Configuration | M14 x 1.5; unarmored; 0 mm unthreaded; 90 mm case; 5.0 m total; standard ClickLoc cable; approvals not required |
| Product Condition | Contact us to confirm. |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | Contact us to confirm. |
| Compatibility | Use with the matching 5 m 3300 XL 11 mm Proximitor Sensor and verified geometry, extension arrangement and target material. |
| Certification | Agency approval option 00: not required. Confirm site and application requirements. |
| Warranty | Contact us to confirm. |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| 330703 | 11 mm probe, M14 x 1.5 thread, without armor |
| 000 | 0 mm unthreaded length |
| 090 | 90 mm overall case length |
| 50 | 5.0 m (16.4 ft) total length |
| 02 | Miniature coaxial ClickLoc connector with standard cable |
| 00 | Agency approval not required |
System-level values apply only when required components and installation conditions match the manufacturer documentation.
| Construction | Unarmored metric-thread proximity probe |
| Thread | M14 x 1.5 |
| Total length | 5.0 m (16.4 ft) |
| System linear range | 4.0 mm (160 mils), approximately 0.5 to 4.5 mm |
| Recommended system gap | 2.5 mm (100 mils) |
| System scale factor | 3.94 V/mm (100 mV/mil), with published tolerance |
| System frequency response | 0 to 8 kHz, +0/-3 dB typical |
| System requirement | Five-meter probes are designed for the five-meter Proximitor Sensor |
Confirm the 90 mm case, 5-meter total length, M14 x 1.5 thread and standard ClickLoc cable. The 5-meter probe must be matched to the 5-meter Proximitor Sensor. Verify target material, spacing, clearances and label. Approval option 00 does not establish suitability for a hazardous-area installation.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented procurement path for compatibility, packaging, shipment and after-sales communication.
The complete 330703-000-090-50-02-00 identity is compared with the request and available labels.
Condition and packaging details are confirmed in writing before order acceptance.
Supplied system, interface, dimensions and revision details are reviewed without presenting the product as an automatic substitute.
Available product, connector and label photos can be checked before shipment when requested.
Packaging is selected to protect the product, connectors and exposed surfaces during transport.
International options are quoted after destination and export requirements are known.
Tracking details are provided after carrier collection when supported by the service.
Commercial shipping documents follow the confirmed transaction and destination requirements.
Any warranty scope and duration are stated in the written quotation.
Returns require prior authorization under the written transaction terms.
Post-delivery questions use the order record, product labels and reported symptoms.
Share the complete model, quantity, destination and label photos for documented checks.
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
Send the complete model, quantity, destination and label photos for availability and compatibility review.
