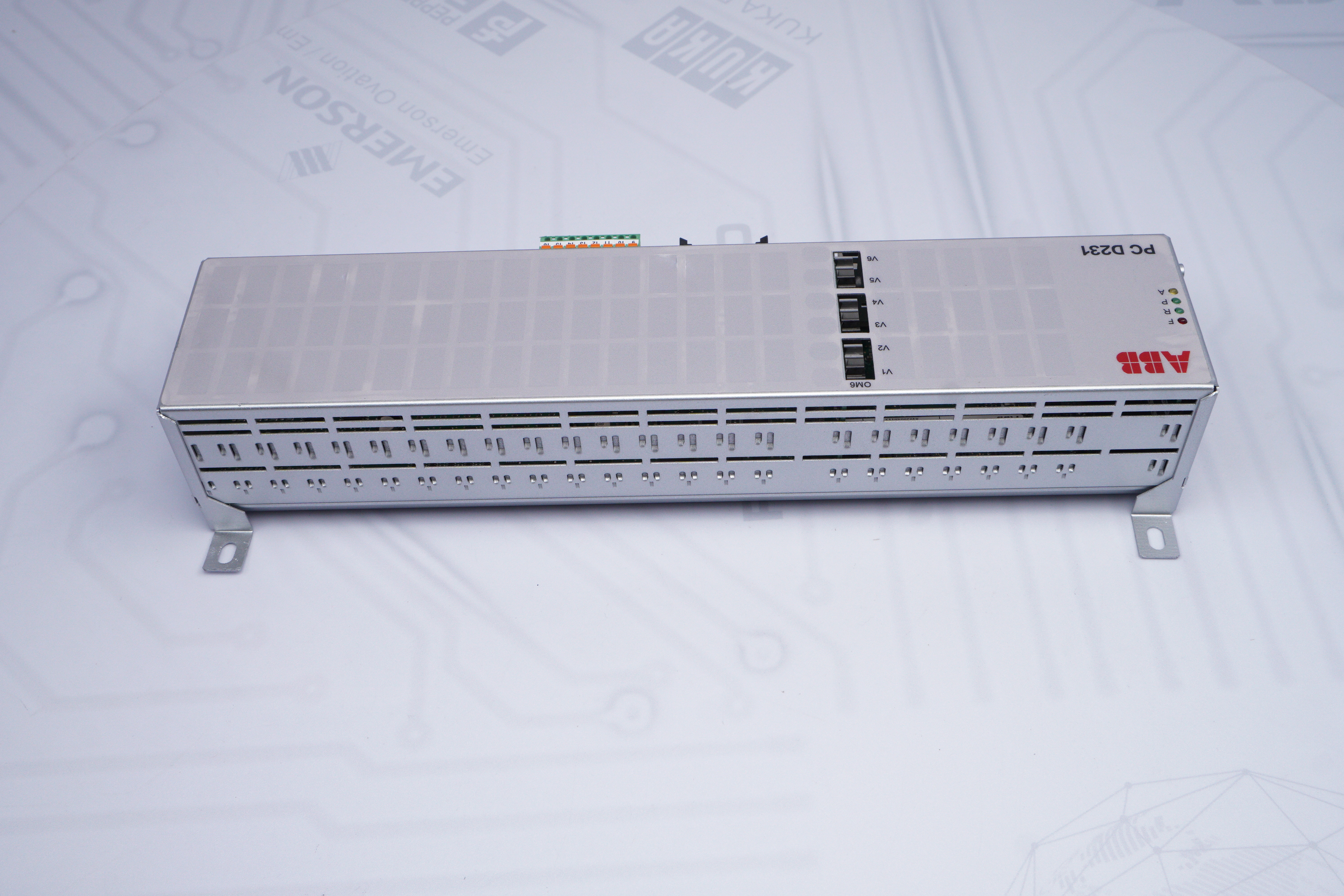

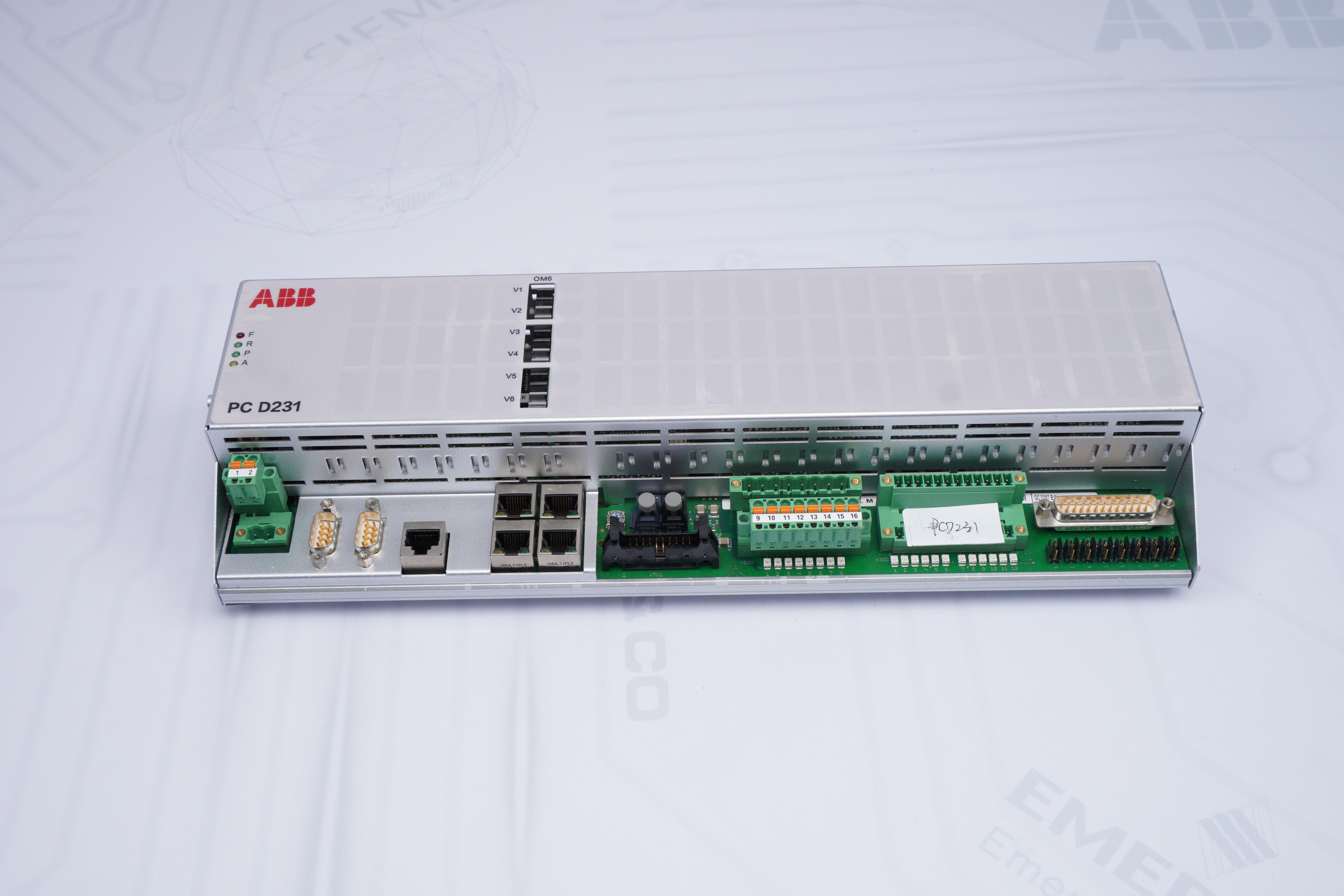

3BHE025541R0101 PCD231B: The Advanced Protection Relay Powering Modern Grids
The 3BHE025541R0101 PCD231B represents the cutting edge of power system protection technology. Designed for utility and industrial applications, this microprocessor-based relay combines robust protection functions with advanced communication capabilities. As grid complexity increases worldwide, the PCD231B has emerged as a preferred solution for engineers seeking reliable fault detection and system protection.
The 3BHE025541R0101 PCD231B protection relay delivers comprehensive protection and control capabilities with its advanced technical features. This microprocessor-based relay provides complete overcurrent protection including phase, ground and directional elements, along with voltage and frequency protection functions. It offers high-accuracy metering capabilities for current, voltage, power and energy measurements with 0.5% accuracy class, while also monitoring power quality parameters like harmonics up to 25th order. The device supports multiple communication protocols including IEC 61850 Edition 2, Modbus and DNP3.0 through its dual Ethernet ports and serial interfaces, featuring a built-in web server for remote access. With a wide operating temperature range from -25°C to +55°C and flexible power supply options of 24-250V DC or 100-240V AC, the PCD231B is designed for reliable operation in demanding environments. It includes 64 configurable digital inputs, 32 digital outputs, 8 analog inputs, and features comprehensive event recording with 1024 time-tagged events and disturbance recording capability for 8 analog and 32 digital channels, making it a versatile solution for modern power system protection applications.
The 3BHE025541R0101 PCD231B protection relay delivers proven performance across diverse power system applications, demonstrating tangible operational benefits in real-world deployments. In utility networks, it enhances grid reliability through fast fault clearance and automated feeder protection, while industrial plants leverage its motor and transformer protection capabilities to minimize equipment damage and production losses. Renewable energy facilities particularly benefit from its ability to handle bidirectional power flows and maintain grid compliance in solar/wind applications. The relay's IEC 61850 compatibility and advanced disturbance recording have significantly reduced troubleshooting time during outages, with field reports indicating up to 30% faster restoration times. Its flexible configuration and robust construction ensure reliable operation in harsh environments, while predictive maintenance features help operators optimize maintenance schedules and reduce overall lifecycle costs, making it a versatile solution for modern power system challenges.
