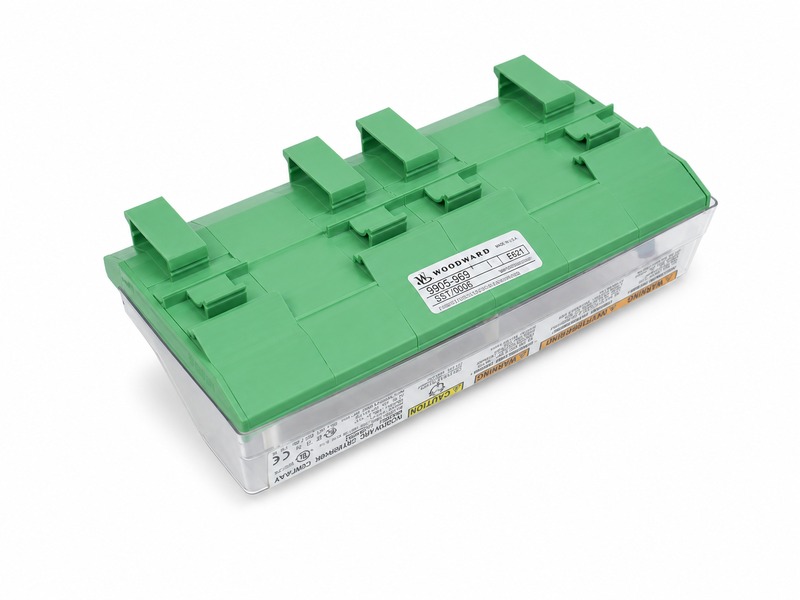

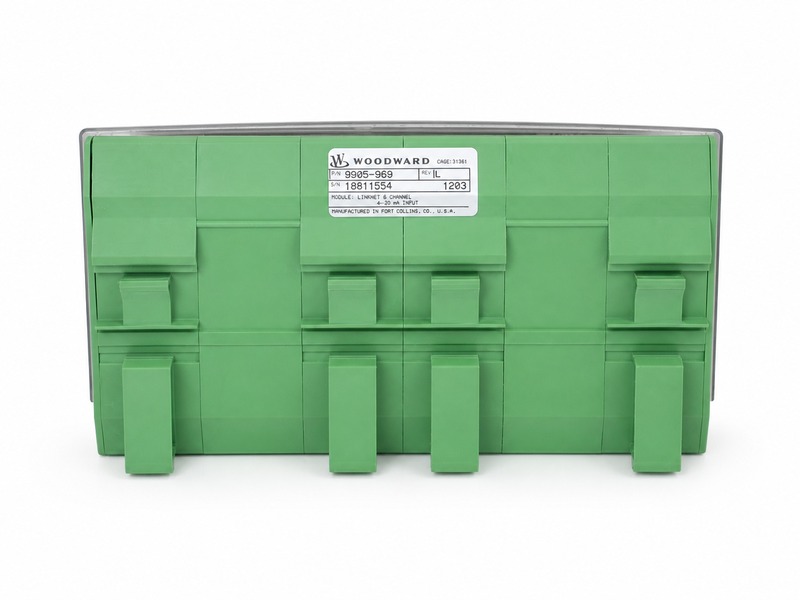

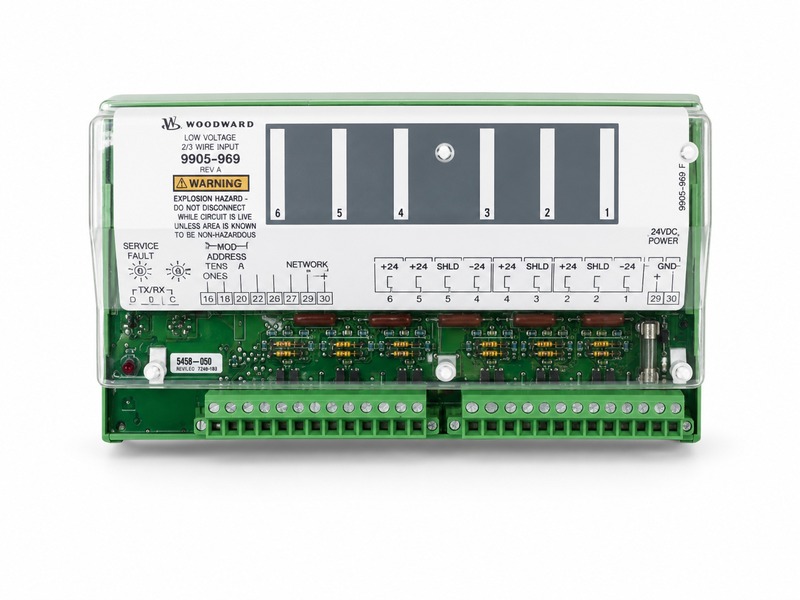

LINKNET ANALOG INPUT / PROCUREMENT DOSSIER
Six 4–20 mA inputs · Integral 24 V field-loop power · LON-based LINKnet
| Ordering field | Quotation basis |
|---|---|
| Part number / brand | 9905-969 / Woodward |
| Product family | LINKnet distributed I/O |
| Condition and testing | Confirmed for the available unit in the formal quotation |
| Availability / lead time | Subject to current stock and confirmed with quotation |
| Warranty | Scope and duration stated in the quotation |
| Supply scope | One 9905-969 module unless accessories are specifically listed |
| Parameter | Published model information |
|---|---|
| Module type | Analog input node |
| Channels / signal | 6 channels / 4–20 mA |
| Field loop power | Integral 24 V loop power |
| Resolution | 12 bit |
| Input impedance | 250 Ω |
| Module power requirement | 5.3 W at 24 VDC input |
| Network architecture | Compatible LON-based LINKnet system |
| Model | Input | Integral loop power | Selection point |
|---|---|---|---|
| 9905-969 | Six 4–20 mA inputs | Yes, 24 V | For loops requiring module-supplied power |
| 9905-968 | Six 4–20 mA inputs | No | For externally powered current loops |
Do not substitute 9905-968 and 9905-969 without checking field-loop wiring and the loop-power source.
What is the difference between 9905-969 and 9905-968?
Both are six-channel 4–20 mA LINKnet input nodes, but 9905-969 provides integral 24 V loop power. Check the field wiring and loop-power arrangement before substitution.
Can a standard 4–20 mA input module replace it?
No direct replacement should be assumed. Verify the controller, LON-based LINKnet architecture, node type, address, wiring and software support.
Are terminals, network cables or accessories included?
Do not assume accessories are included. The formal quotation defines the complete supply scope.
Is the available module tested?
Testing status depends on the available unit and is stated with its condition, serial information and warranty in the quotation.
What information is needed for a quotation?
Provide the full part number, nameplate photo, installed controller, current node address, quantity, destination country and required delivery date.
LEGACY CONTROL PROCUREMENT / SERVICE DESK
Each order is reviewed around the exact model, installed system and commercial requirement. The quotation records condition, lead time, warranty basis and shipment terms so purchasing teams can evaluate the offer clearly.
| Service stage | What we check and document |
|---|---|
| Model control | Full part number, suffix, nameplate, quantity, revision and requested condition. |
| Technical review | Signal type, loop-power requirement, host architecture, node address and replacement scope. |
| Commercial clarity | Availability, lead time, warranty, payment and Incoterms stated in the quotation. |
| Protective dispatch | ESD-aware handling, protective packing, shipment tracking and export documentation. |
| After-sales route | Receipt check, issue documentation and return authorization under the written terms. |
Please provide the manufacturer, full part number, quantity, destination country, required condition and clear nameplate photographs. For replacements, include the controller family, current node address and a short description of the fault or maintenance objective.
