9905-760 Product datasheet

 9905-026 Functional Description

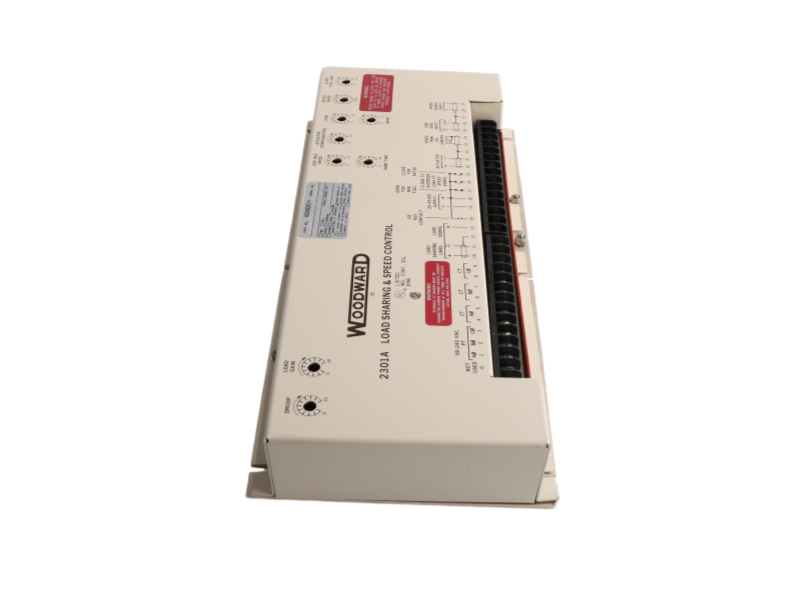

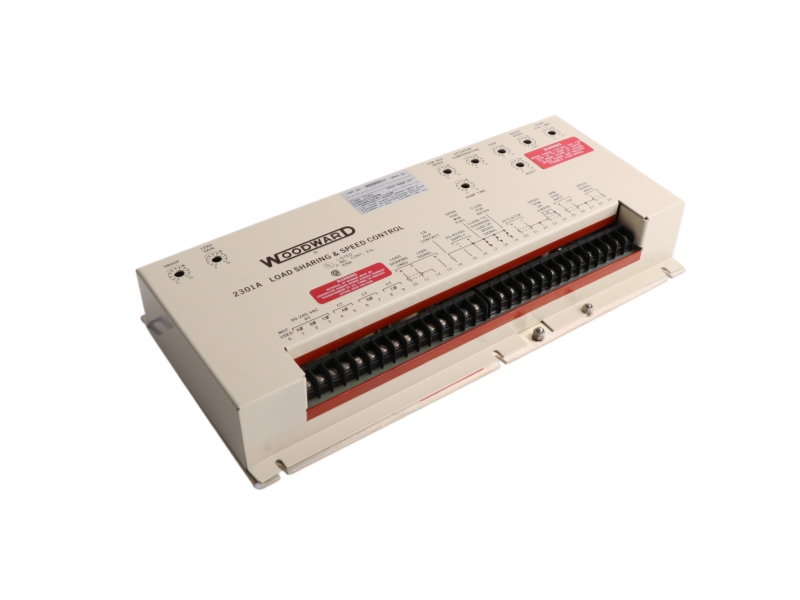

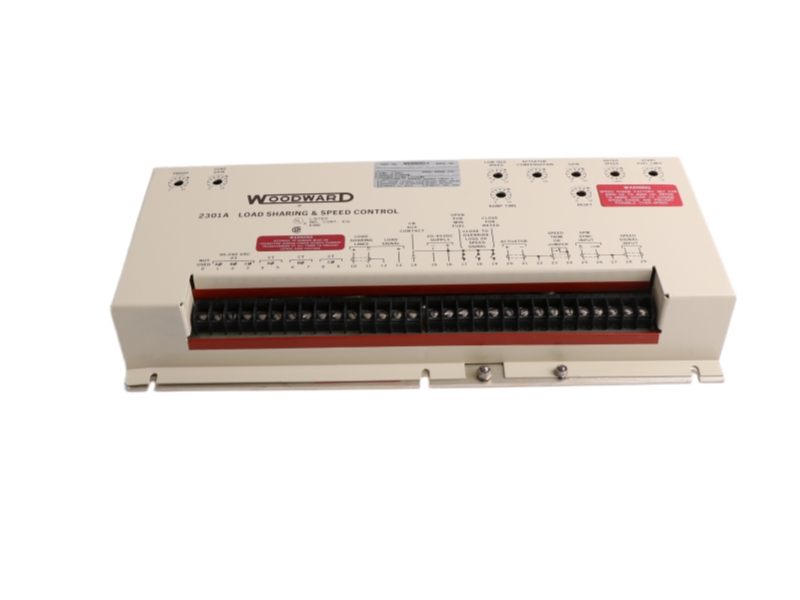

The Woodward 9905-026 is a low-voltage, forward-acting member of the 2301A series of load sharing and speed controls. This particular model requires a power supply of 20-40VDC and consumes 15W or less of power. This model uses a single actuator with a current range of 0-20mA. Since this is a forward-acting model, the actuator will be driven to empty fuel in the event that full loss of voltage is detected.

Features and benefits

The 9905-026 can be operated in isochronous mode or droop mode in order to accommodate a wide variety of prime mover and bus configurations. This model does not come with a deceleration ramp. The 9905-026 requires some other equipment to set it up as a fully-functioning 2301A series system. In addition to the control itself, operators need a 20-40VDC power source, a proportional actuator for positioning the fuel-metering device, and load-measuring current and potential transformers.

specification

• Construction: Sheet metal chassis with gloss powder-coated finish for durability and protection.
• Certification: Complies with North American CSA standards for Ordinary Locations.
• Vibration Resistance: Rated for 4G vibration tolerance across 5–500 Hz frequency range.
• Shock Resistance: Withstands up to 60G shock for harsh industrial environments.
• Load Performance: Supports up to 6VDC load gain at 5A CT current.
• Control Capability: Provides actuator time constant compensation from 0–500 ms for stable response.
