9907-018 Product datasheet
|
Model number: |
9907-018 |
|
Module Type： |
Speed Control |
|
Manufacture: |
Woodward |
|
Condition： |
Brand New |
|
Range of Product: |
Woodward |
|
Lead time： |
In Stock |
|
Weight: |
0.38 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
10.8x20x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
9907-018 Functional Description

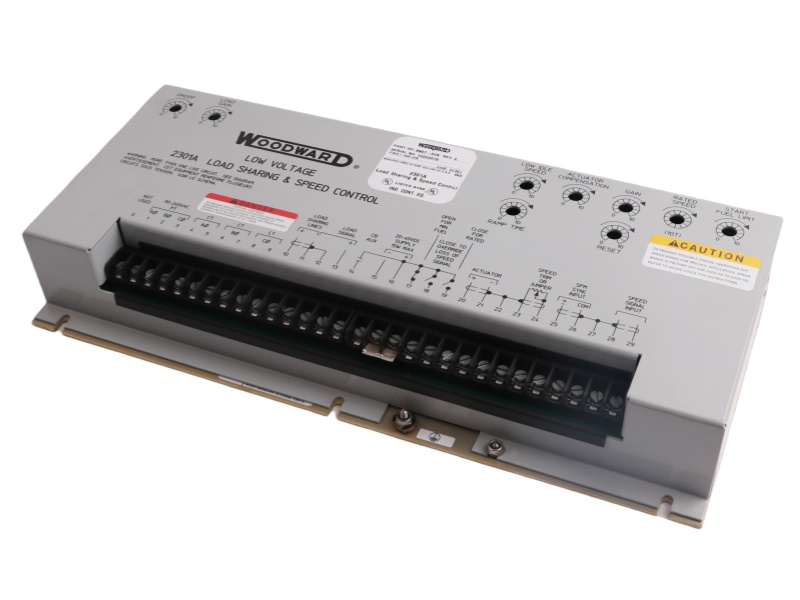

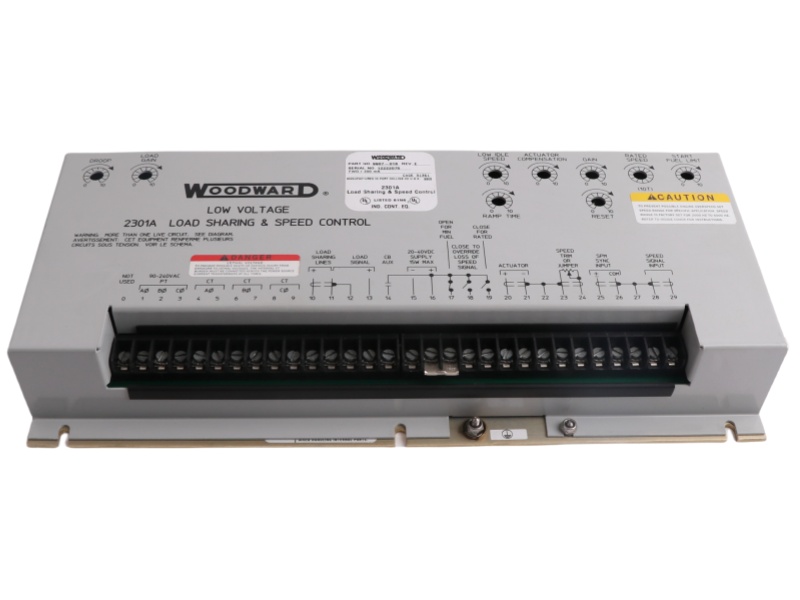

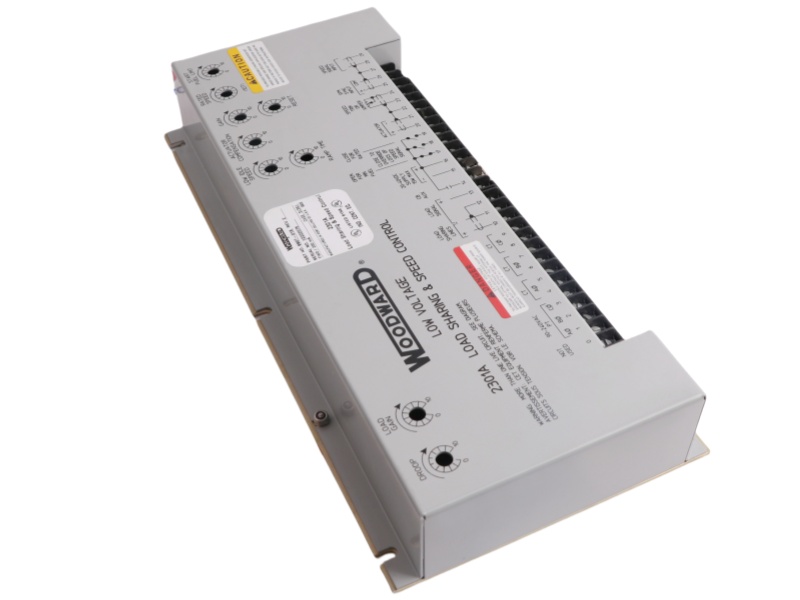

The 9907-018 Low Voltage 2301A Load Sharing and Speed Control is a low-voltage (20-40VDC) load sharing and speed control module from the 2301A series, specifically designed for multi-unit generator systems. This forward-acting control unit features a 0-200mA actuator signal compatible with Woodward EG, PB, EGB, 2301, and TM actuators. The Woodward 9907-018 Speed Control excels in managing diesel/gasoline engines and steam/gas turbines, offering ±0.25% speed stability and ±2% load sharing accuracy. Its compact metal chassis houses an accessible front-panel interface with all adjustment potentiometers for convenient field servicing.
Carrying both CE and CSA certifications, the 2301A series 9907-018 Woodward meets stringent EU and North American standards for electrical safety and EMC compliance. The module's self-contained load sensor optimizes performance across its -40°C to +85°C operating range, while its <5W power consumption ensures energy efficiency. Unlike some 2301A variants, this particular Woodward 9907-018 model excludes the optional deceleration ramp function but includes critical features like automatic start fuel limiting to reduce engine wear and emissions.
The 9907-018 2301A Full Authority Speed Control supports both isochronous and droop control modes, handling up to 2A drive capacity for precise fuel metering device positioning. Its analog load sharing signal (0-10V/4-20mA) and 50Hz-10kHz speed feedback ensure accurate synchronization in parallel generator applications. The unit's 18-40VDC input range and industrial-grade components guarantee reliable operation in demanding power generation environments.
Ideal for base-loading against infinite buses or isolated bus operations, the Load Sharing and Speed Control 9907-018 demonstrates particular strength in combined heat and power (CHP) systems and industrial backup power scenarios. Its front-accessible controls and standardized Woodward actuator compatibility simplify maintenance while reducing long-term operational costs. The module's robust construction and wide temperature tolerance (-50°C to +100°C storage range) make it a durable solution for critical power management applications worldwide.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Woodward |
9907-205 |
ABB |
DSQC639 3HAC025097-001 |
ABB |
DSQC601 3HAC12815-1 |
|
ABB |
DSQC697 3HAC037084-001 |
ABB |
DSQC639 3HAC025097-001 |
ABB |
DSQC562 3HAC16014-1 |
|
ABB |
DSQC697 3HAC037084-001 |
ABB |
DSQC639 3HAC025097001 |
ABB |
DSQC541 3HAC14363-1 |
|
ABB |
DSQC679 3HAC028357-001 |
ABB |
DSQC637 3HAC023047-001 |
ABB |
DSQC532B 3HAC023447-001 |
|
ABB |
DSQC663 3HAC029818-001 |
ABB |
DSQC627 3HAC020466-001 |
ABB |
DSQC503 3HAC3619-1 |
|
ABB |
DSQC662 3HAC026254-001 |
ABB |
DSQC625 3HAC020464-001 |
ABB |
DSQC500 3HAC3616-1 |
|
ABB |
DSQC658 3HAC025779-001 |
ABB |
DSQC611 3HAC13389-2 |
ABB |
DSQC406 3HAC035301-001 |
|
ABB |
DSQC652 3HAC025917-001 |
ABB |
DSQC609 3HAC14178-1 PBSE5117 |
ABB |
DSQC378B 3HNE00421-1 |
|
ABB |
DSQC651 3HEA800439-002 |
ABB |
DSQC608 3HAC12934-1 |
ABB |
DSQC373 3HAC3180-1 |
|
ABB |
DSQC643 3HAC024488-001 |
ABB |
DSQC604 3HAC12928-1 |
ABB |
DSQC363 3HAC1462-1 |
Woodward 2301A 9905/9907 Series Speed Control Features
The Woodward 2301A 9905/9907 series offers versatile electronic speed control with four switch-selectable frequency ranges (500-12,000Hz) for precise prime mover regulation. These controls accommodate both forward and reverse-acting configurations, supporting single or tandem actuators across three current ranges. Available in low-voltage (20-40VDC) and high-voltage (90-150VDC/88-132VAC) models, the series includes safety-engineered reverse-acting systems that enable mechanical backup governors during power loss. An optional 20-second deceleration ramp prevents abrupt shutdowns, while standard models transition instantly. The controls calculate speed via gear teeth/RPM ratios (Hz = teeth×RPM/60), ensuring accurate synchronization. Woodward's global support network provides expert guidance on model selection, installation, and calibration for optimal performance in generator, turbine, and engine applications.Ideal for base-loading against infinite buses or isolated bus operations, the Woodward 9907-018 demonstrates particular strength in combined heat and power (CHP) systems and industrial backup power scenarios. Its front-accessible controls and standardized Woodward actuator compatibility simplify maintenance while reducing long-term operational costs. The module's robust construction and wide temperature tolerance (-50°C to +100°C storage range) make it a durable solution for critical power management applications worldwide.
