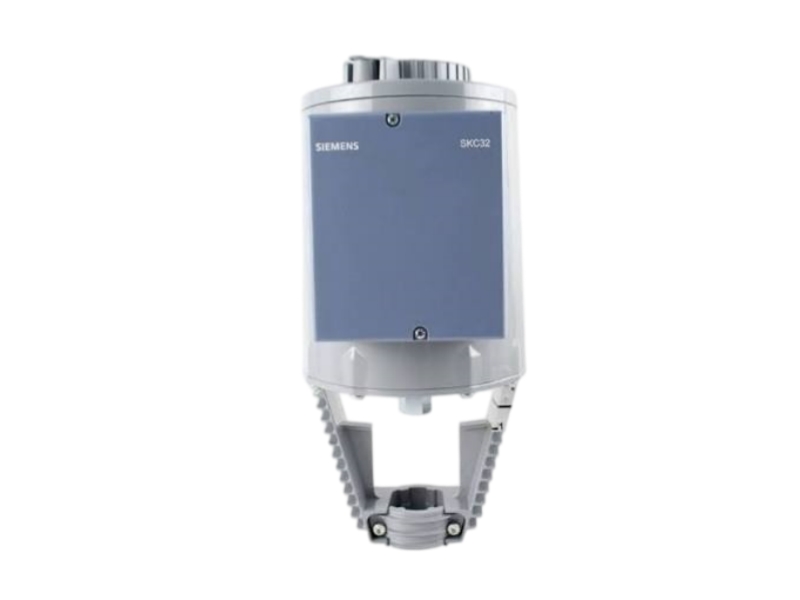

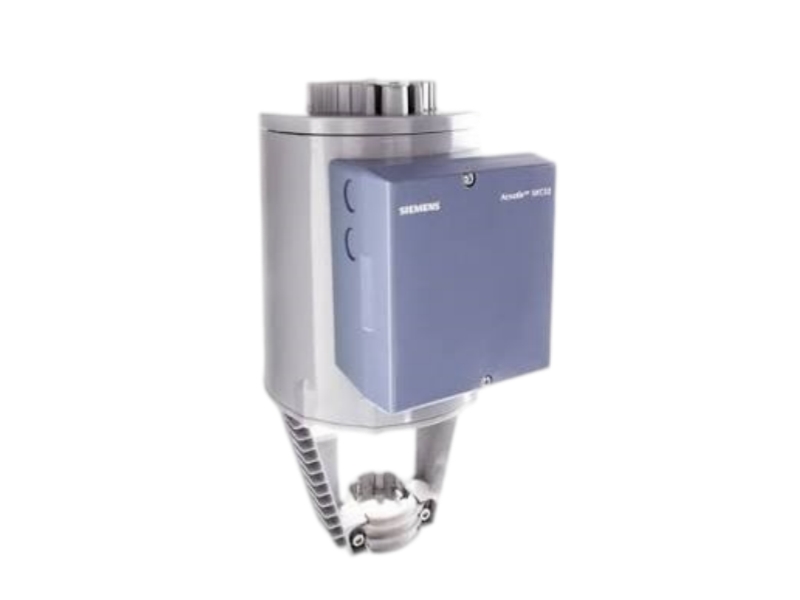

Siemens SKC32.60 is a 2800 N electrohydraulic valve actuator with 40 mm stroke and three-position 230 V control.
The Siemens SKC32.60 is an Acvatix electrohydraulic actuator for large-stroke control valves. Siemens specifies 2800 N positioning force, 40 mm stroke, AC 230 V supply and a three-position control signal. The actuator operates without spring return and completes a positioning stroke in 120 seconds.
Its aluminum housing, overload protection, IP54 enclosure and manual adjuster support demanding building-services valve applications. The exact SKC32.60 suffix must be retained because operating voltage, control signal and spring-return behavior differ across SKC actuator variants.
| Siemens stock number | BPZ:SKC32.60 |
|---|---|
| Official product reference | SKC32.60 |
| Documentation | Current Siemens SiePortal record and SKC.. product data sheet |
| Ordering check | Use the live Siemens article record for current commercial status |
| Manufacturer | Siemens |
|---|---|
| Product family | Acvatix SKC.. |
| Product type | Electrohydraulic valve actuator |
| Positioning force | 2800 N |
| Stroke | 40 mm |
| Operating voltage | AC 230 V |
| Control signal | 3-position |
| Spring return | None |
| Positioning time | 120 s |
| Degree of protection | IP54 |
| Medium temperature range | -25 to 150 °C |
| Manual adjustment | Turn; position is maintained |
| Housing | Aluminum |
| Country of origin | Germany |
Use current photographs to verify the exact article identity, interfaces and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering Relevance |
|---|---|
| HVAC control valves | Positions compatible large-stroke valves in heating, ventilation and air-conditioning circuits. |
| District heating stations | Supports modulating control of water-side energy transfer valves. |
| Steam and hot-water systems | Provides high-force operation where valve size and differential pressure require 2800 N. |
| Building automation retrofits | Maintains existing three-position AC 230 V actuator arrangements when the exact valve pairing is verified. |
Siemens maintains an exact BPZ:SKC32.60 product record and current SKC.. actuator documentation. Use the live Siemens article record when confirming present ordering status, while preserving the exact voltage, control and spring-return configuration.
It is a 2800 N electrohydraulic actuator for 40 mm stroke control valves.
Siemens specifies AC 230 V operation with a three-position control signal.
No. The exact SKC32.60 configuration is specified without spring return.
The official product data lists a 120-second positioning time.
Verify the valve family, 40 mm stroke, coupling, supply, control wiring and installation orientation.
Provide the model, quantity, valve designation, required condition, destination and photos of the installed actuator label.
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
Structured support for exact-part identification, compatibility review, condition evidence, packing and international delivery.
Exact Identity ReviewWe compare the complete SKC32.60 code, nameplate, housing and installed connections before quotation. |
Condition EvidenceAvailable units may be documented with readable label, connector, terminal, enclosure and packaging photographs. |
Packing and DeliveryProtective packing, shipping documentation and trackable worldwide delivery options are coordinated. |
| Service Stage | What We Review | Customer Value |
|---|---|---|
| Part-number verification | Manufacturer, complete suffix and label identity | Reduces the risk of receiving a similar but incompatible variant |
| Technical configuration | Positioning force, Stroke, Operating voltage, Control signal | Supports a more accurate match to the installed system |
| Compatibility review | Interfaces, wiring, software or mechanical fit | Highlights integration checks before installation |
| Condition confirmation | Label, terminals, enclosure and packaging | Provides visible evidence for purchasing approval |
| Commercial review | Quantity, condition, lead time and destination | Clarifies written offer terms before ordering |
| Dispatch support | Final check, packing, documents and tracking | Supports traceable international delivery |
| 01 Requirement | 02 Technical Check | 03 Written Offer | 04 Inspection | 05 Dispatch |
|---|---|---|---|---|
| Part number, quantity and destination | Configuration and system fit | Condition, lead time and terms | Photo and physical review | Packing, documents and tracking |
Its aluminum housing, overload protection, IP54 enclosure and manual adjuster support demanding building-services valve applications. The exact SKC32.60 suffix must be retained because operating voltage, control signal and spring-return behavior differ across SKC actuator variants.
Final selection and engineering approval remain the responsibility of the plant, machine builder or system integrator. Written order terms should identify the full model, condition, quantity and any revision requirement.
| Pre-shipment evidence | Available label, unit-condition and packaging photographs can be supplied for review. |
|---|---|
| Packing | Industrial components are protected against impact, contamination and movement during transit. |
| Worldwide shipping | Carrier and routing options are reviewed against the destination and applicable trade restrictions. |
| Warranty | Eligible products carry a 12-month limited warranty unless different written terms are agreed. |
| After-sales communication | Keep the order reference, label photographs and fault description available for any support request. |
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
