SIMOVERT MASTERDRIVES Motion Control control unit for compact and chassis drive devices
Product Overview

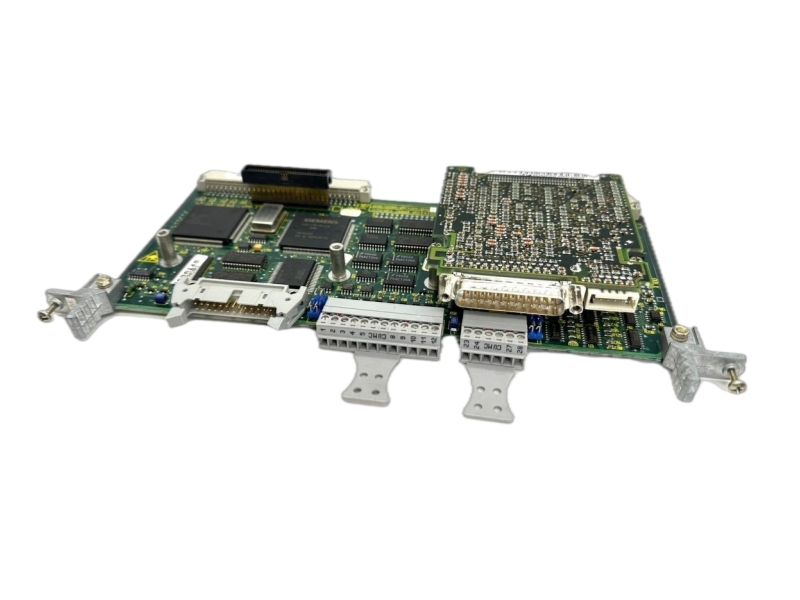

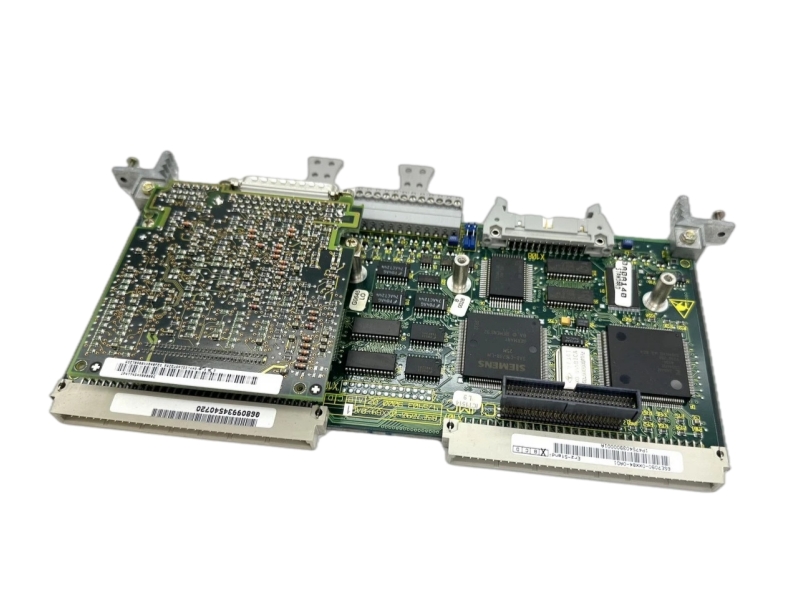

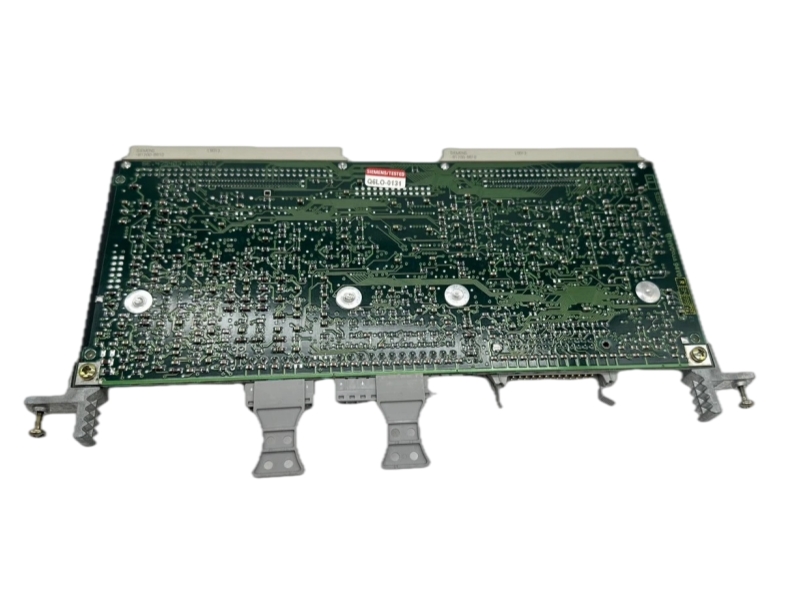

The Siemens 6SE7090-0XX84-0AD1 is a CUMC control unit for SIMOVERT MASTERDRIVES Motion Control compact and chassis drive units. Siemens documentation identifies it as the control-unit generation used with MC drive devices and distinguishes it from the later CUPM Performance 2 design. The CUMC coordinates drive control processing and supports approved encoder evaluation boards within the MASTERDRIVES option-board architecture. From this exact version, two encoder evaluation boards may be installed simultaneously, with motor-temperature evaluation assigned to the board in slot C. Procurement checks should cover the complete suffix, drive-unit MLFB, firmware, parameter backup, option-board population, encoder interfaces, slot assignment and commissioning software.
Commercial Status
Product Condition
Original new
Availability
In stock
Official Lifecycle
No named lifecycle status stated in the reviewed exact official documents
Warranty
With 1 year warranty
Shipping
Worldwide shipping options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
Manufacturer
Siemens
Complete Part Number
6SE7090-0XX84-0AD1
Product Type
CUMC control unit
Product Family
SIMOVERT MASTERDRIVES Motion Control
Applicable Drive Formats
Compact and chassis units
Control Unit Generation
MASTERDRIVES MC CUMC
Main Processor
C167, 20 MHz
Encoder Evaluation
Two approved encoder evaluation boards may be connected simultaneously from this version
Confirm the complete suffix, drive-unit order code, firmware, parameter backup, option boards, encoder evaluation board type, slot C use for motor-temperature evaluation, connector condition and commissioning software. The official mapping to CUPM 6SE7090-0XX84-0AD5 is a migration reference, not a guarantee of direct or plug-compatible replacement. Review the existing drive configuration and project documentation before installation.
Lifecycle Note
The reviewed Siemens documents confirm the exact 6SE7090-0XX84-0AD1 article and its CUMC function but do not state a named current lifecycle classification. No lifecycle status is therefore inferred. Siemens documents identify CUPM 6SE7090-0XX84-0AD5 in a migration comparison; this reference requires engineering review of firmware, parameters, interfaces, option boards and the complete drive configuration.
Frequently Asked Questions
What does 6SE7090-0XX84-0AD1 identify?
It identifies a Siemens CUMC control unit for SIMOVERT MASTERDRIVES Motion Control compact and chassis drive units.
Which drive formats use this control unit?
Siemens documentation associates this CUMC control unit with MASTERDRIVES MC compact and chassis drive devices.
Which processor generation is documented?
The CUMC comparison identifies a C167 processor operating at 20 MHz.
Can two encoder evaluation boards be used?
From this exact CUMC version, two approved encoder evaluation boards may be connected simultaneously. Motor-temperature evaluation remains assigned to the board in slot C.
What is the official lifecycle status?
The reviewed exact Siemens documents do not state a named current lifecycle classification, so no status is inferred.
What should be reviewed before replacement?
Check the full suffix, drive MLFB, firmware, parameter backup, installed option boards, encoder interface, slot assignment, connector condition and commissioning software.
