PROFIBUS motor management hardware with integrated current measurement, configurable I/O and thermistor protection input.
The Siemens 3UF5011-3AN00-1 is a SIMOCODE DP basic unit for motor protection, control and communication in PROFIBUS-based installations. Siemens specifies a 1.5 Mbaud PROFIBUS DP interface using RS485, four freely parameterizable inputs and four outputs, a 230 V AC supply, and an integrated 6.3–25 A current range. A thermistor connection supports temperature-based motor protection, while monostable relay outputs execute control and alarm functions.
This exact suffix matters: supply voltage, current range and protection input vary across 3UF5 versions. Procurement should therefore match the complete article number, motor current, fieldbus arrangement and installed wiring before replacement.
| Official product lifecycle | PM500:Discontinued Product or end of PLM & Support |
|---|---|
| PLM effective date | End of product lifecycle since 01.12.2021 |
| Official availability note | Product is no longer available |
| Successor family | SIMOCODE PRO 3UF7; migration must follow the Siemens conversion guidance |
| Manufacturer | Siemens |
|---|---|
| Article number | 3UF5011-3AN00-1 |
| Product range | SIMOCODE DP |
| Product type | Basic unit |
| Fieldbus interface | PROFIBUS DP, RS485 |
| Transmission rate | 1.5 Mbaud |
| Configurable I/O | 4 inputs / 4 outputs |
| Supply voltage | 230 V AC, 50/60 Hz |
| Current range | 6.3 to 25 A |
| Protection input | Thermistor connection |
| Output behavior | Monostable outputs |
| Overall width | 70 mm |
| Net weight | 0.820 kg |
| Country of origin | Germany |

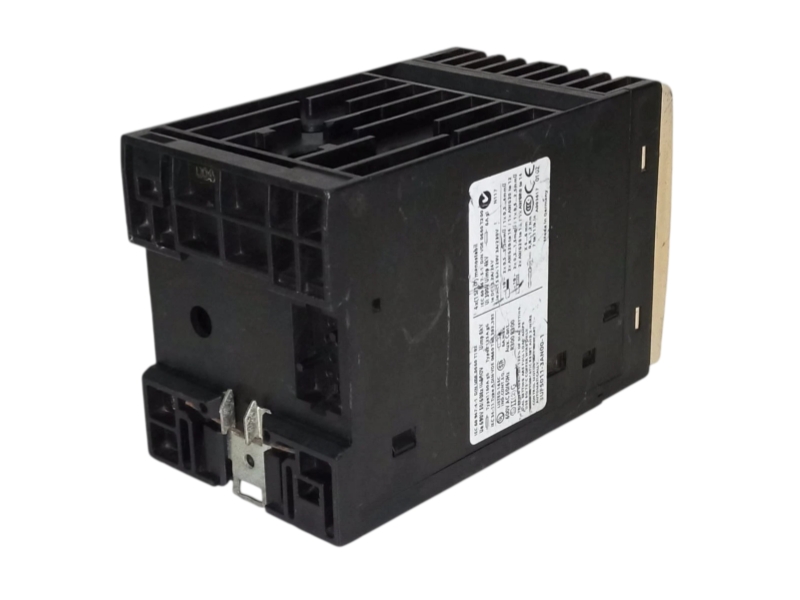

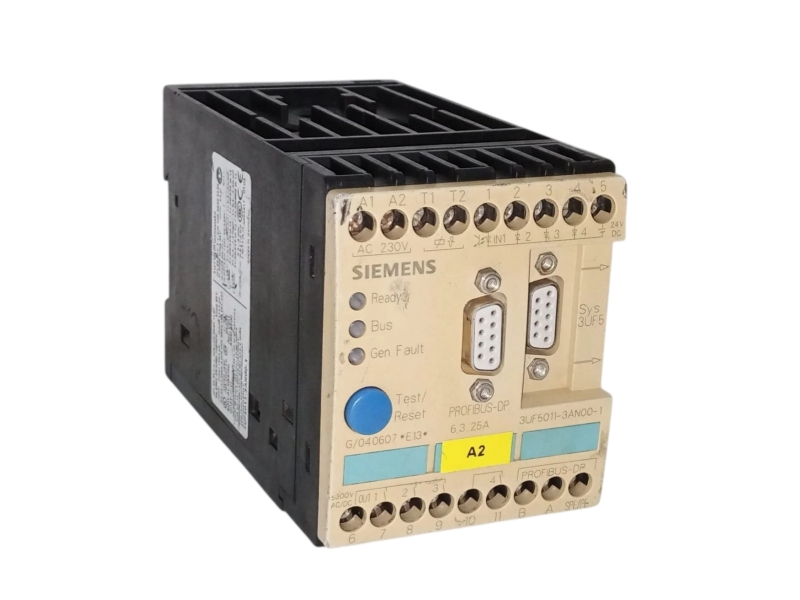

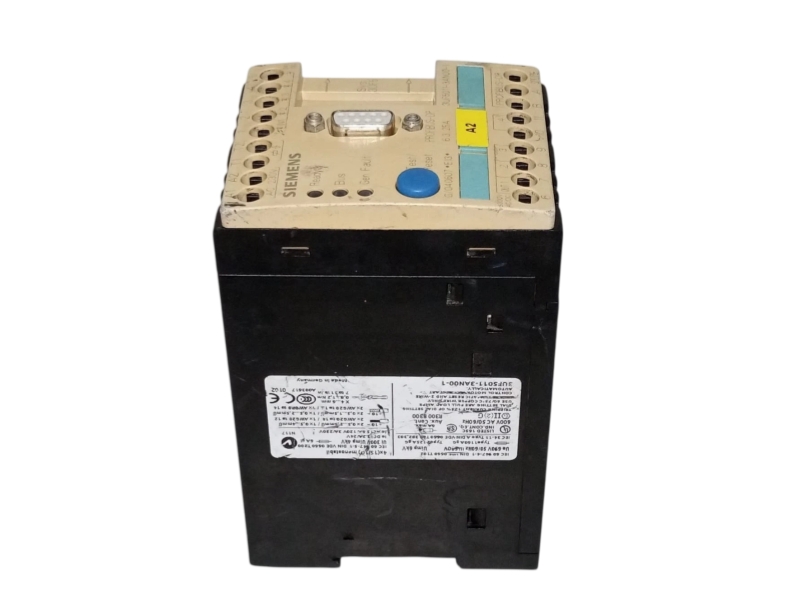

Use current photographs to verify the article number, terminal arrangement and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering Relevance |
|---|---|
| PROFIBUS-connected motor feeders | Combines current monitoring, protection logic and remote control for a motor branch. |
| Process and material-handling drives | Supports status, fault and command exchange with a supervisory control system. |
| Legacy SIMOCODE DP maintenance | Provides exact-suffix replacement planning for installed 3UF5 hardware. |
| Thermistor-protected motors | Accepts a thermistor connection for temperature-based protection functions. |
Siemens lists 3UF5011-3AN00-1 as PM500:Discontinued Product or end of PLM & Support, with the end of product lifecycle effective since 01.12.2021. The official migration reference identifies SIMOCODE PRO 3UF7 as the successor family; conversion requires a configuration-specific component review.
It is a SIMOCODE DP basic unit for PROFIBUS motor management, protection and control.
Siemens specifies 230 V AC at 50/60 Hz and an integrated current range of 6.3 to 25 A.
The unit uses PROFIBUS DP over RS485 at 1.5 Mbaud.
The basic unit provides four freely parameterizable inputs and four outputs.
The successor is a SIMOCODE PRO 3UF7 system configuration. Use the Siemens conversion table and verify every required component.
Provide the full part number, quantity, destination, required condition, and photos of the installed label and connections.
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
Structured support for exact-part identification, legacy SIMOCODE DP compatibility review, condition evidence, packing and international delivery.
Exact Identity ReviewWe compare the complete 3UF5011-3AN00-1 order code, nameplate, housing width, terminal layout and installed interface before quotation. |
Condition EvidenceAvailable units may be documented with readable label, connector, terminal, enclosure and packaging photographs before dispatch. |
Packing and DeliveryProtective packing, shipping documentation and trackable worldwide delivery options are coordinated for industrial spare-part orders. |
| Service Stage | What We Review | Customer Value |
|---|---|---|
| Part-number verification | Manufacturer, full suffix, series and product label | Reduces the risk of receiving a visually similar 3UF5 variant |
| Electrical configuration | 230 V AC supply, 6.3–25 A range, 4I/4O and thermistor input | Supports a more accurate match to the installed motor feeder |
| Communication review | PROFIBUS DP, RS485 connection, address and network context | Highlights integration checks before installation |
| Condition confirmation | Label readability, terminals, enclosure and packaging | Provides visible evidence for purchasing approval |
| Commercial review | Quantity, condition, lead time, destination and written terms | Clarifies the offer before order placement |
| Dispatch support | Final check, protective packing, documents and tracking | Supports traceable international delivery |
| 01 Requirement | 02 Technical Check | 03 Written Offer | 04 Inspection | 05 Dispatch |
|---|---|---|---|---|
| Part number, quantity and destination | Suffix, supply, current range and interfaces | Condition, lead time and trade terms | Photo and physical-condition review | Packing, documents and tracking |
Siemens identifies the SIMOCODE PRO 3UF7 family as the successor platform for this discontinued SIMOCODE DP article. A migration is not treated as a simple one-for-one substitution. The installed motor feeder, current range, supply voltage, PROFIBUS architecture, I/O assignments, thermistor circuit, operator components and parameter data should be reviewed together.
When requested, the quotation process can distinguish between sourcing the exact legacy unit for maintenance and reviewing the component list needed for a controlled modernization project. Final engineering approval remains the responsibility of the plant or system integrator.
| Pre-shipment evidence | Available label, unit-condition and packaging photographs can be supplied for review. |
|---|---|
| Packing | Industrial components are protected against impact, contamination and movement during transit. |
| Worldwide shipping | Carrier and routing options are reviewed against the destination and applicable trade restrictions. |
| Warranty | Eligible products carry a 12-month limited warranty unless different written terms are agreed. |
| After-sales communication | Keep the order reference, serial or label photographs and fault description available for any support request. |
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
