16 local points, BACnet/IP ALN and license-enabled P1 or MS/TP FLN supervision

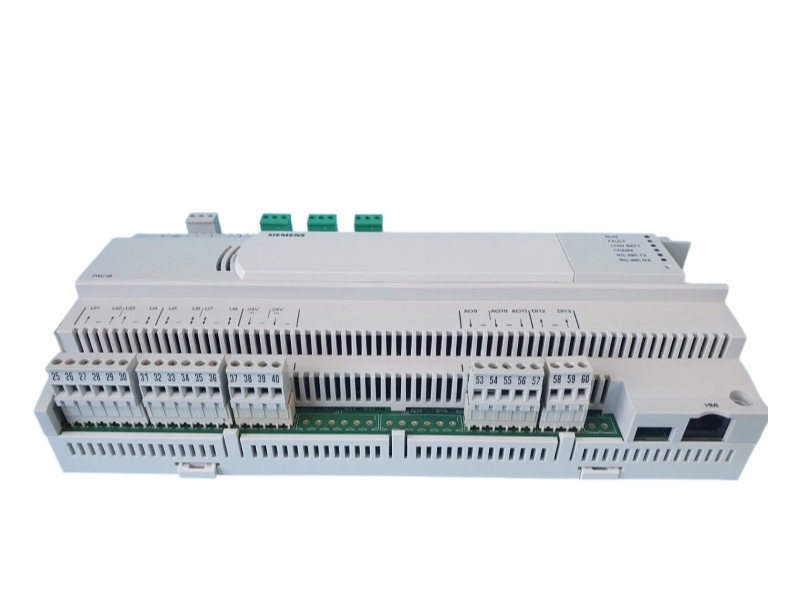

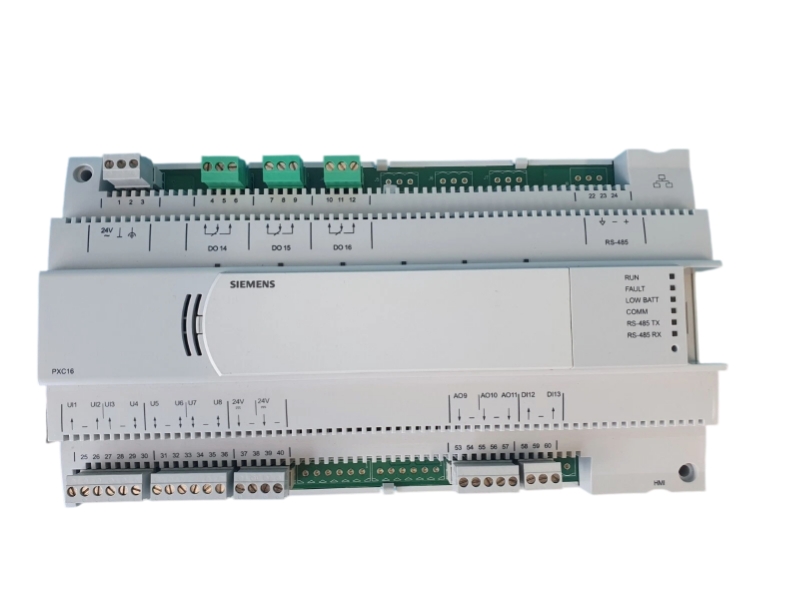

Siemens PXC16.2-EF.A is a 16-point APOGEE PXC Compact building controller for BACnet/IP automation networks. Siemens documents eight software-configurable universal points within its 16-point local I/O set, plus BACnet/IP communication over 10/100 Ethernet. The F variant can supervise up to 32 P1 or BACnet MS/TP devices when the required LSM-FLN license is present. It operates from 24 Vac and performs stand-alone or networked control, monitoring and energy-management tasks. Before replacement, verify the full suffix, installed license, network role, point wiring, power, firmware, application database, enclosure, hardware label and commissioning backup.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300:Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | PXC16.2-EF.A |
| Manufacturer Order Code | BPZ:PXC16.2-EF.A |
| Product Type | PXC Compact BACnet building controller |
| Series | APOGEE PXC Compact |
| Local Points | 16 |
| Point Mix | 3 Universal Inputs, 5 Universal I/O, 2 Digital Inputs, 3 Analog Outputs, 3 Digital Outputs |
| Software-Configurable Universal Points | 8 |
| Automation Level Network | BACnet/IP, 10Base-T or 100Base-TX |
| Field Level Network | P1 or BACnet MS/TP with optional LSM-FLN license |
| FLN Capacity | Up to 32 P1 or MS/TP devices with the required license |
| Supply Voltage | 24 Vac +/-20%, 50/60 Hz |
| Maximum Power Consumption | 18 VA at 24 Vac |
| Processor | Freescale MPC852T, 100 MHz |
| Memory for F Models | 40 MB: 32 MB SDRAM and 8 MB Flash ROM |
| Analog Input Resolution | 16 bit |
| Analog Output Resolution | 10 bit |
| Dimensions | 272 x 150 x 62 mm |
| Operating Temperature | 0 to 50 C |
| Relative Humidity | 5 to 95% non-condensing |
| Net Weight | 0.891 kg |
| Official Lifecycle | PM300:Active Product |
| Official Successor Note | PXC5.E24 |
| System Fit | APOGEE PXC Compact BACnet/IP building automation networks. |
| Control Role | Stand-alone or networked direct digital control, monitoring and energy management. |
| Local I/O Use | Universal sensing and control, dry-contact status, analog outputs and relay outputs. |
| FLN Use | Supervision of up to 32 P1 or BACnet MS/TP devices with the required license. |
| Replacement Use | Exact-model maintenance or an engineered migration after project and license review. |
Siemens Industry Mall lists PXC16.2-EF.A as PM300:Active Product and identifies PXC5.E24 as its successor. Active status is retained exactly. The successor note does not establish direct interchangeability; network architecture, local I/O, licensing, application software, enclosure and commissioning changes require project review.
It identifies a 16-point APOGEE PXC Compact controller with BACnet/IP ALN and optional P1 or MS/TP FLN support.
Siemens specifies 16 local points: 3 UI, 5 Universal I/O, 2 DI, 3 analog outputs and 3 digital outputs.
The F model supports FLN supervision when the required LSM-FLN license is installed; verify the existing license and protocol.
The official specification lists 24 Vac +/-20% at 50/60 Hz, with maximum consumption of 18 VA.
Siemens Industry Mall lists PM300:Active Product and names PXC5.E24 as the successor.
No direct interchangeability is claimed here. Network, I/O, licensing, software and commissioning requirements must be engineered.
Yes. Request full-controller, label, terminal, Ethernet, RS-485 and packaging photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Documentation, condition evidence, configuration review and order coordination for PXC16.2-EF.A.
The complete order code, Siemens data, installed license, network role and local-point configuration are reviewed before a replacement decision.
Full-controller, nameplate, terminal, Ethernet, RS-485 and packaging photographs support identity and visible-condition checks.
Protective packaging, included accessories, shipping documents and tracking are coordinated after the order review.
| Model Verification | Check PXC16.2-EF.A, BPZ order code, revision, firmware and readable label photos. |
| System Review | Record BACnet/IP network role, IP settings, connected management platform and application database. |
| FLN Review | Confirm P1 or BACnet MS/TP protocol, installed LSM-FLN license and connected-device count. |
| I/O Review | Compare all 16 point assignments, terminal wiring, sensor types, output loads and relay protection. |
| Commissioning Records | Preserve PPCL programs, schedules, alarms, trends, graphics, backups and startup documentation. |
Provide the full suffix, quantity, destination and label photos.
Compare licensing, network, I/O wiring, firmware and project backups.
Review visible condition, accessories, packaging and delivery records.
