Four 10/100 Mbps RJ45 ports, PROFINET IO device functions and integrated redundancy management

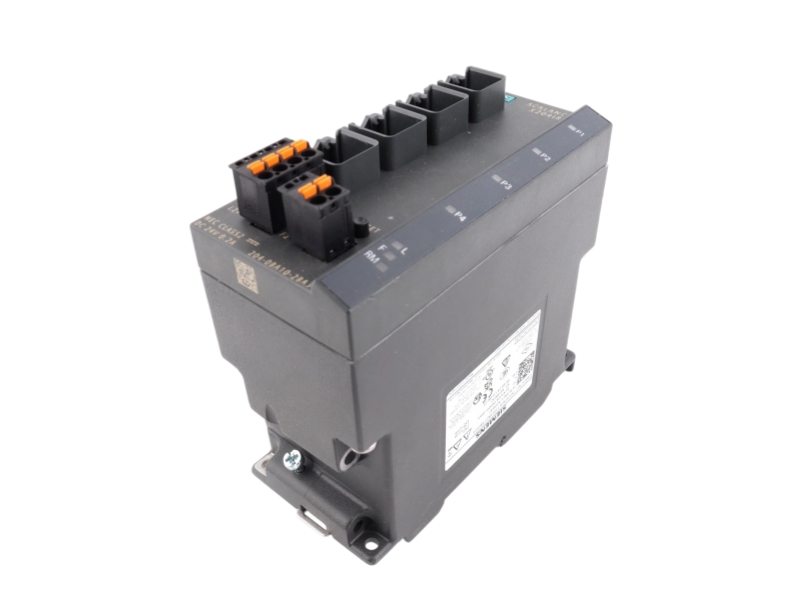

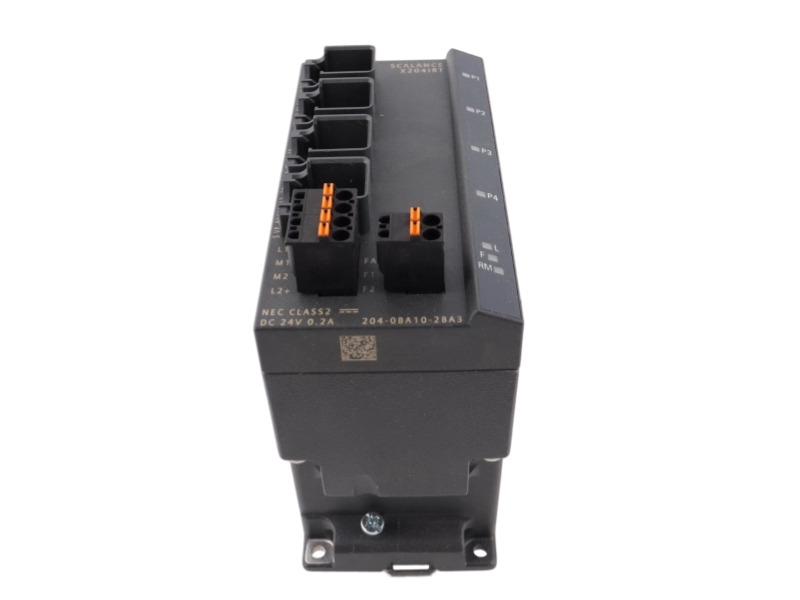

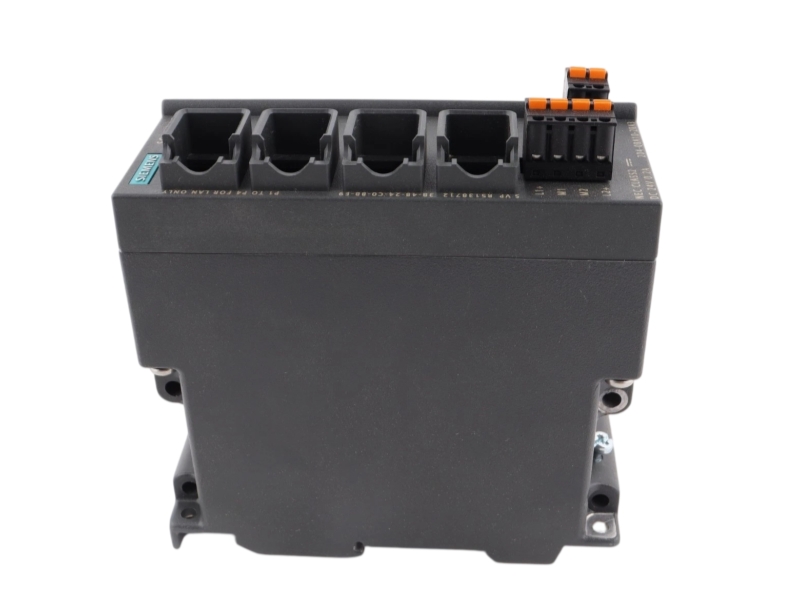

Siemens 6GK5204-0BA10-2BA3 is a SCALANCE X204IRT managed Industrial Ethernet switch for deterministic PROFINET IRT networks. It provides four 10/100 Mbps RJ45 ports, PROFINET IO device functionality, network management and an integrated redundancy manager. Siemens also documents redundant 24 V DC supply capability, an error signaling contact and optional C-PLUG storage. It supports machine and plant communication where synchronized Ethernet traffic and managed diagnostics are required. Before procurement or replacement, verify the complete suffix, port count, supply arrangement, network topology, redundancy settings, C-PLUG use, firmware, mounting conditions and readable label photographs.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300:Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6GK5204-0BA10-2BA3 |
| Product Type | Managed Industrial Ethernet IRT switch |
| Series | SCALANCE X-200IRT |
| Product Type Name | SCALANCE X204IRT |
| Electrical Ports | 4 x RJ45 |
| Transmission Rate | 10/100 Mbps |
| Network Role | PROFINET IO device |
| Management | Network management with integrated Redundancy Manager |
| Removable Storage | C-PLUG optional |
| Signaling | Error signaling contact with set button |
| Supply | Redundant 24 V DC; permissible range 18 to 32 V DC |
| Maximum Current Consumption | 0.14 A |
| Rated Power Loss | 3.4 W |
| Operating Temperature | -40 to +70 C |
| Relative Humidity | Up to 95% at 25 C |
| Net Weight | 0.780 kg |
| Country of Origin | Germany |
| Official Lifecycle | PM300:Active Product |
| System Fit | Managed Industrial Ethernet and PROFINET IRT machine or plant networks. |
| Network Role | PROFINET IO device with network management and deterministic IRT communication. |
| Redundancy Use | Managed ring or redundant network applications using the integrated Redundancy Manager. |
| Maintenance Use | Exact-model replacement after topology, firmware and configuration review. |
| Expansion Use | Four-port managed access where verified electrical and environmental requirements match. |
Siemens Industry Mall lists 6GK5204-0BA10-2BA3 as PM300:Active Product. That wording is retained exactly. Active status does not make other SCALANCE X204 variants interchangeable; port media, suffix, firmware, PROFINET IRT configuration, power wiring and redundancy settings must match the installed network design.
It identifies the SCALANCE X204IRT managed Industrial Ethernet switch with four 10/100 Mbps RJ45 ports.
Siemens specifies four electrical RJ45 ports for network components and terminal devices.
Yes. Siemens identifies it as an IRT switch and PROFINET IO device; project configuration still requires verification.
The official data sheet specifies 24 V DC with an 18 to 32 V permissible range and redundant supply capability.
Siemens Industry Mall lists PM300:Active Product.
No direct interchangeability is claimed. Port media, suffix, firmware, topology and power connections must be compared.
Yes. Request front, label, port, terminal, C-PLUG area and packaging photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Documentation, network configuration, condition evidence and order coordination for 6GK5204-0BA10-2BA3.
The complete order code, Siemens data, port arrangement, PROFINET role and redundancy configuration are reviewed before a replacement decision.
Full-switch, nameplate, RJ45, power-terminal, signaling-contact and C-PLUG photographs support identity and visible-condition checks.
Protective packaging, included terminal blocks, accessories, shipping documents and tracking are coordinated after order review.
| Model Verification | Check 6GK5204-0BA10-2BA3, revision, firmware and readable label photos. |
| Network Review | Record PROFINET device name, IP settings, IRT role, VLAN or management settings and port map. |
| Redundancy Review | Confirm ring topology, Redundancy Manager role and recovery configuration. |
| Electrical Review | Compare redundant 24 V DC wiring, signaling contact, grounding and terminal blocks. |
| Commissioning Records | Preserve switch configuration, C-PLUG data, network drawings, diagnostics and backup files. |
Provide the full suffix, quantity, destination and label photos.
Compare topology, ports, firmware, C-PLUG data and power wiring.
Review condition, terminal blocks, protective packaging and delivery records.
