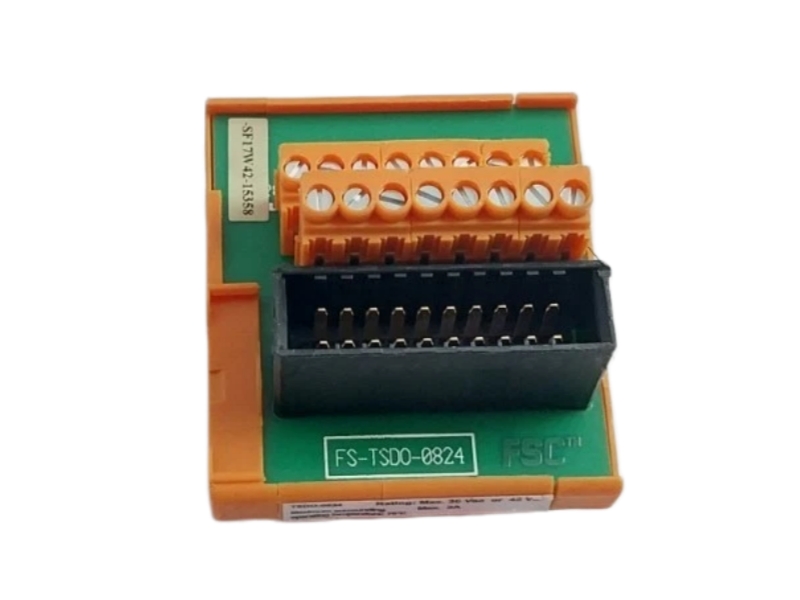

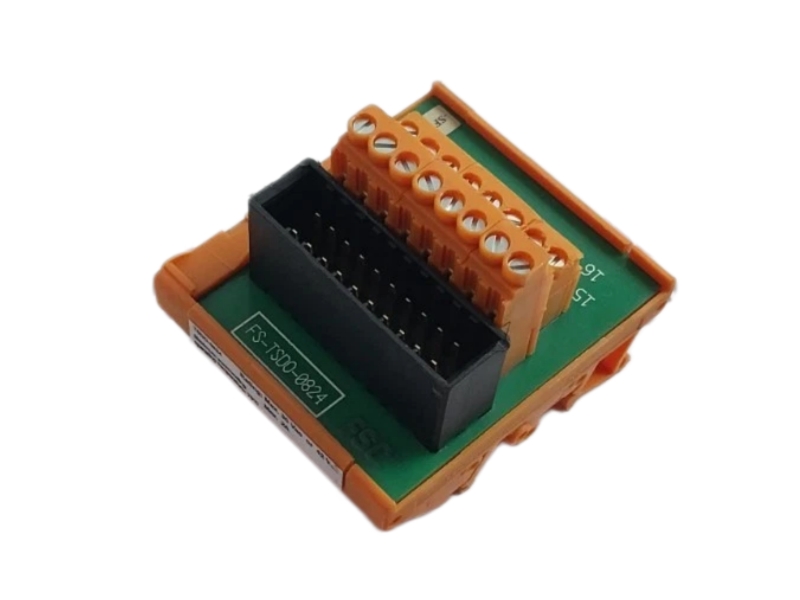

Honeywell FS-TSDO-0824 Fail-safe digital output FTA

Inquiry now

FS-TSDO-0824 Product datasheet

Model number	FS-TSDO-0824
Manufacture	Honeywell
System	PLC
Condition	Brand New
Country of Origin	USA
HS Code	8537101190
After-Sales Support	12-months

FS-TSDO-0824 Overview

The Honeywell FS-TSDO-0824 is a safety-rated digital output field termination assembly, designed for Safety Manager systems, delivering reliable 24 VDC control signals and robust performance in critical industrial automation environments.

Specifications

Model: FS-TSDO-0824
Type: Safe Digital Output Field Termination Assembly (FTA)

Output Channels: 8 digital outputs
Output Voltage: 24 VDC (max 36 VDC)
Max Current per Channel: up to 1.5 A
Output Type: Solid-state / current-limited digital outputs
Safety Function: Designed for safety systems (SIS / Safety Manager)
Mounting: DIN rail (TS32 / TS35)
Connection: Screw terminals, max 2.5 mm² wiring
Dimensions: Approx. 60 × 70 × 58 mm
Certifications: CE, TÜV, UL, CSA, FM
Operating Environment: Industrial-grade, wide temperature tolerance
Function: Interface between control system and field devices (actuators, relays)

Features and benefits

High Safety Reliability: Designed for safety instrumented systems with dependable output control.
8-Channel Efficiency: Supports multiple outputs, reducing system wiring complexity.
Strong Load Capability: Handles industrial loads with stable 24 VDC output performance.
Compact & Easy Installation: DIN rail mounting enables fast integration into control cabinets.

Robust Industrial Design: Wide certifications and rugged construction ensure long-term operation.
