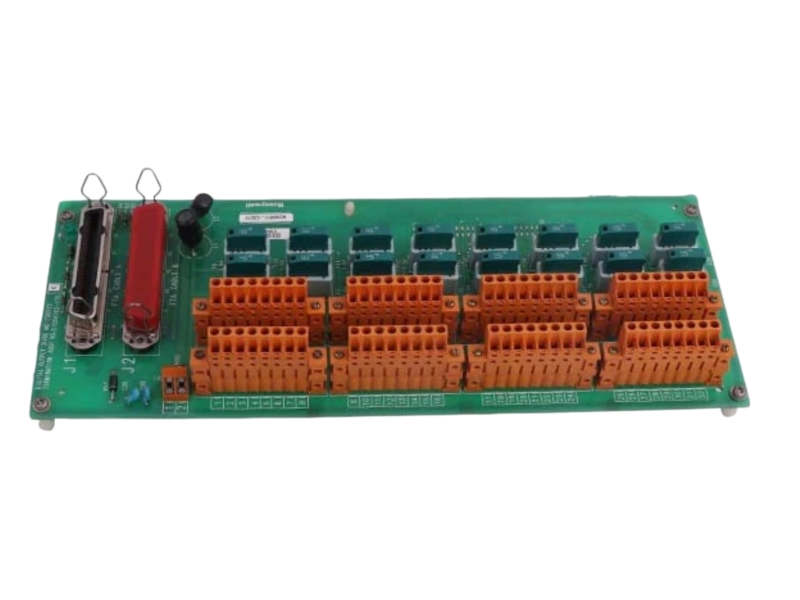

The FS-TRO-0824 is a Honeywell Fail Safe Control (FSC) digital output Field Termination Assembly featuring 8 isolated relay contact channels. Fully compatible with the FSC processing backplane, this unit works seamlessly with digital output cards to deliver flexible interposing isolation and stable industrial safety loop communication.

Specific Application

• High-Load Voltage Interposing: Interfacing low-power safety logic outputs with high-voltage field execution equipment, such as switching heavy industrial solenoid valves or motor-operated valves.
• Emergency Shutdown Routing: Distributing isolated, dry-contact safety control commands to independent third-party plant safety systems without risking common-cause electrical faults.
• Critical Critical Burner Isolation: Managing discrete executive trips and fuel cut-off interlocks within hazardous chemical furnaces and utility boiler management control environments.

System Compatibility & Alternative Models

System Compatibility

· Main Safety Drivers: Directly tethers to Honeywell FSC digital output modules, including standard 24 Vdc and 48 Vdc multi-channel fail-safe electronic cards.

· Cabinet Interconnects: Links via specialized pre-fabricated System Interconnection Cables (SICs), specifically utilizing standard Elco-type or terminal-style assembly cords.

· Enclosure Architecture: Standardized to latch into integrated steel safety cabinets under a 5% to 95% relative humidity envelope and an operating temperature landscape of 0°C to 60°C.

Alternative Model & Differences

· Alternative Model: Digital Output Field Termination Assembly (Part Number FS-TRO-1024).

· Key Differences:

o Channel Density Matrix: The FS-TRO-0824 provides a specialized 8-channel layout featuring independent Form-C configurations, whereas the FS-TRO-1024 expands density up to 10 relay channels.

o Relay Contact Architecture: The FS-TRO-0824 supplies true Normally Open (NO) and Normally Closed (NC) dry contacts for every slot, while the 10-channel variant enforces single-pole variations to optimize structural connection real estate.

Installation & Troubleshooting FAQ

Q1: What unique terminal configuration and environment metrics govern the FS-TRO-0824 interface?

A: The termination module features heavy-duty screw terminals paired with integrated safety diodes and local indicator LEDs. The hardware handles wide storage temperature ranges from -25°C to +80°C and active runtime exposures of 0°C to 60°C. Mechanically, the structure handles 15 G operational shocks (11 ms duration) and sinusoidal vibrations up to 1 G over a 57 Hz to 150 Hz sweep.

Q2: Why is the diagnostic circuit reporting a loop fault though the logic card is firing commands?

A: This behavior usually stems from blown fuses or missing terminal bridge linkages on the card. Check the individual channel fuse parameters across the terminal tier; an open circuit here instantly drops field loop continuity. Additionally, verify that your System Interconnection Cables (SICs) are fully snapped into position and that field inductive loads are clamped with voltage suppression varistors.

Q3: Can I test the status of individual relay channels locally inside the safety enclosure?

A: Yes, the assembly houses dedicated, onboard green status indicator LEDs for each of the 8 relay channels. When an output channel is commanded to change state by the main controller, its local channel LED illuminates to show active coil excitation. If the LED triggers but the field valve stays stationary, use a multimeter to verify contact continuity across the NO/NC screws.
