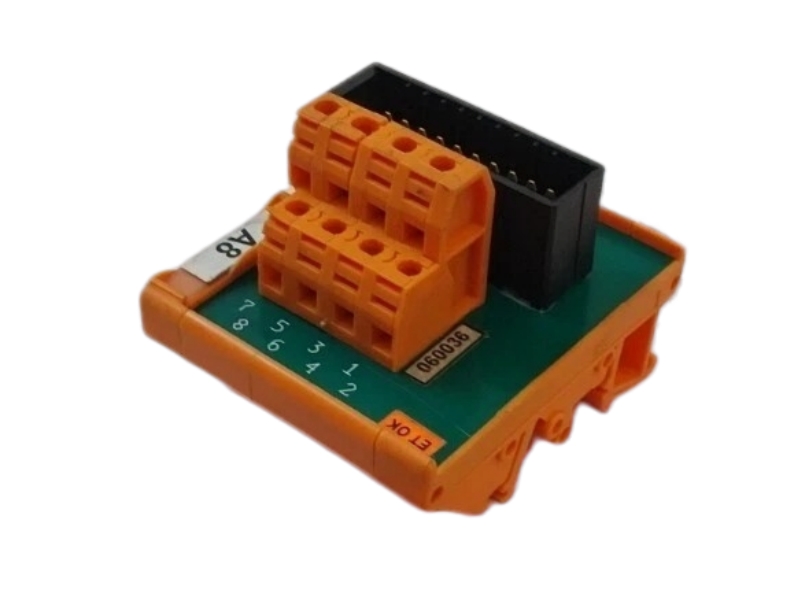

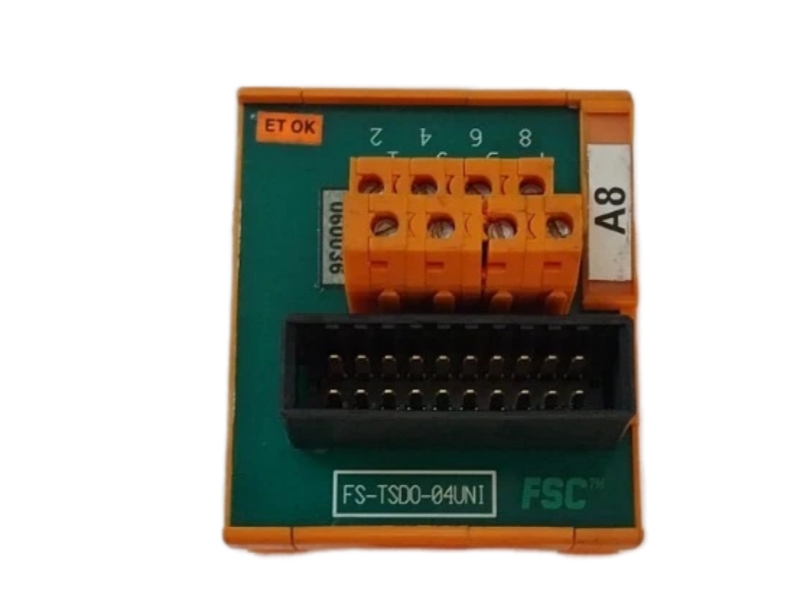

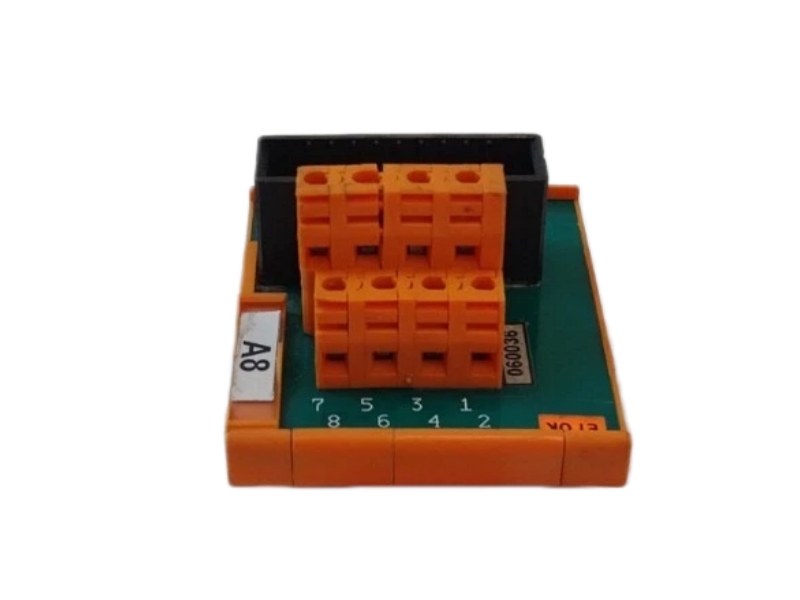

The Honeywell FS-TSDO-04UNI is a compact safety digital output module, delivering flexible relay or solid-state control, high reliability, and seamless integration into Safety Manager and industrial automation systems.
Specifications
Model: FS-TSDO-04UNI
Type: Safety Digital Output Module / FTA
- Output Channels: 4 or 8 channels (model variants, isolated outputs)
- Output Type: Relay (SPDT) or solid-state digital outputs
- Supply Voltage: 24 VDC (approx. 18–32 VDC range)
- Max Output Current: Up to 0.5 A (solid-state) or 5 A (relay type)
- Switching Capacity: Up to 250 VAC / 30 VDC, 1250 VA
- Power Consumption: ≤6–8 W
- Isolation: Up to 2500 VAC between circuits
- Response Time: ≤1–10 ms
- Mounting: DIN rail or panel mount
- Operating Temperature: -40°C to +70°C
- Humidity: 5–95% non-condensing
- Function: Interface for controlling field devices in safety systems
Features and benefits
- Universal Output Flexibility: Supports AC/DC loads for diverse industrial applications.
- High Safety Performance: Designed for fail-safe operation in critical control systems.
- Strong Electrical Isolation: Minimizes interference and enhances system stability.
- Compact Modular Design: Saves cabinet space and simplifies system expansion.
- Fast Switching Response: Ensures precise and reliable control of field devices.
