A5E02822120 Overview

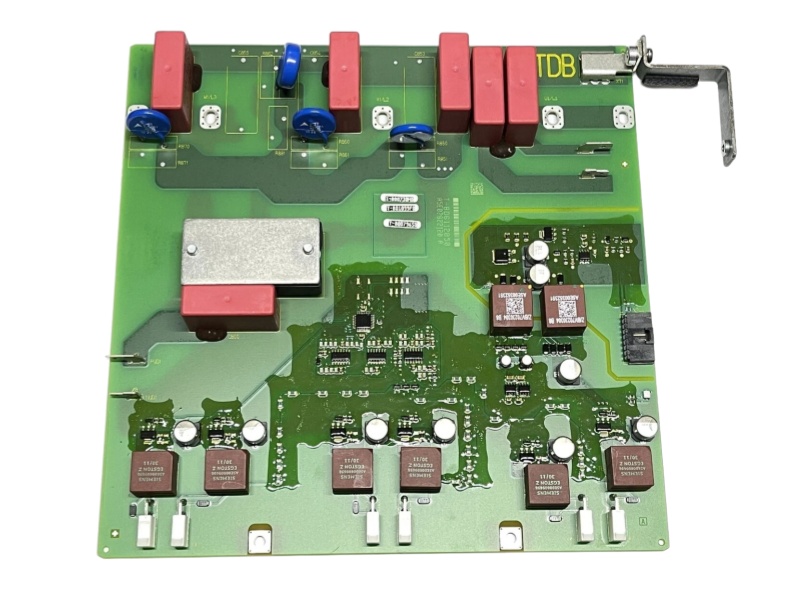

The Siemens RECTIFIER TRIGGER BOARD A5E02822120 is a rectifier trigger board, designed to operate at 24V DC for controlling converter modules in industrial power applications.

Technical Data Summary: Siemens A5E02822120

Part Type: Rectifier Trigger Board (TDB).

Manufacturer: Produced by Siemens Robicon.

Application: Controls converter modules in industrial power systems.

Key Specification: Operates on 24V DC input (±10%), with a typical amplitude of 15-30V DC.

Environmental: Operating temperature range is 0°C to 55°C.

Physical: Lightweight at 0.22 kg, compact for integration.

FAQ

Q1: What is the Siemens A5E02822120?

A1: It is a Rectifier Trigger Board (TDB) used for controlling converter modules.

Q2: What is its main electrical specification?

A2: Its input voltage is 24V DC with a tolerance of ±10%, and typical amplitude ranges from 15 to 30V DC.

Q3: What is its operating temperature range?

A3: It can operate within a temperature range of 0°C to 55°C (32°F to 131°F).

Q4: Is it suitable for humid environments?

A4: Yes, it has humidity resistance of up to 95% in non-condensing conditions.

Q5: What is the typical application of this board?

A5: It is designed for use with industrial power converters, such as those handling 480V AC/DC systems.
