6ES7153-4AA01-0XB0 Overview

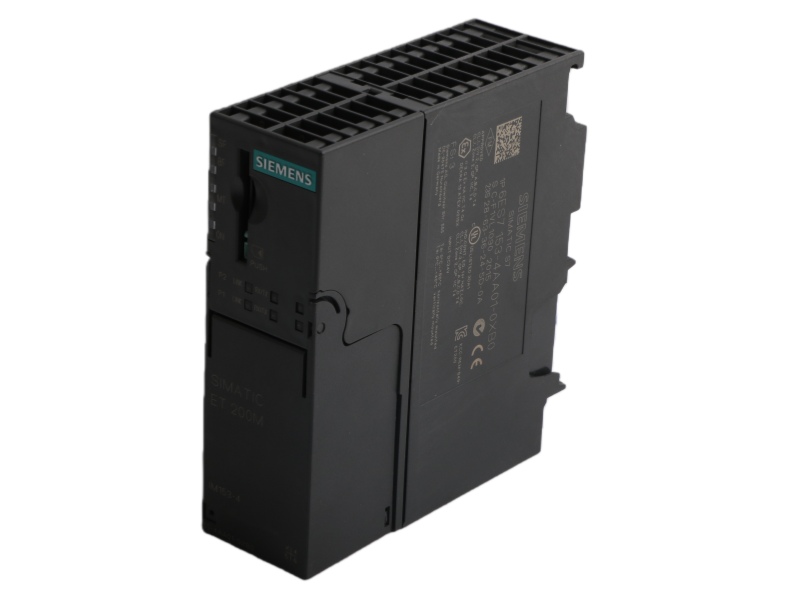

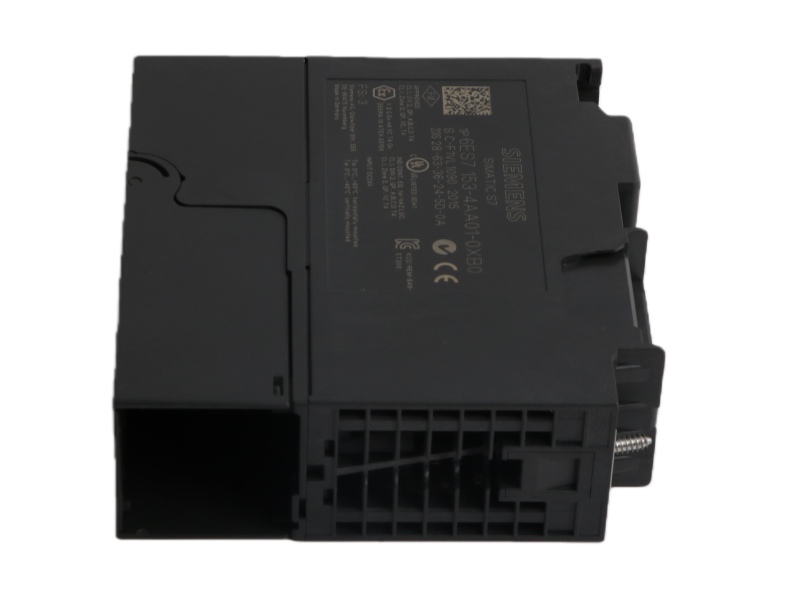

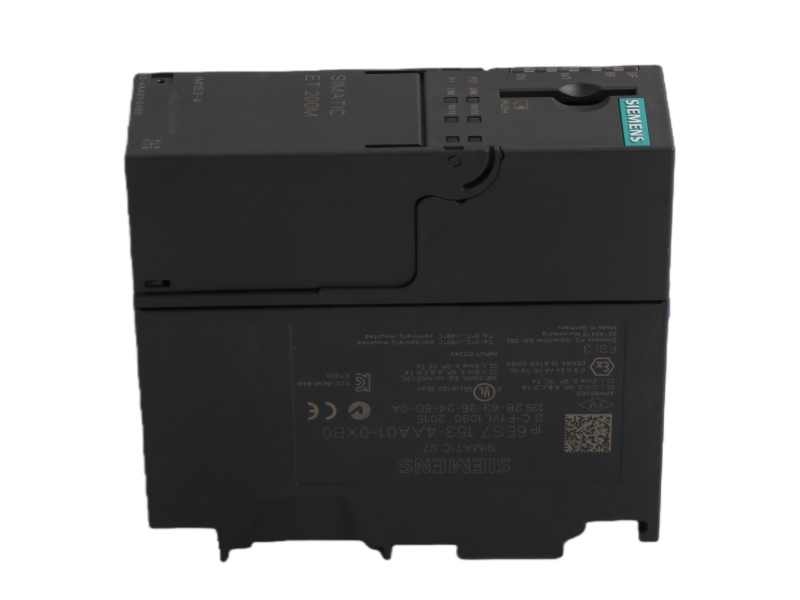

The Siemens IM153-4 PN IO Interface Module 6ES7153-4AA01-0XB0 is a PROFINET IO interface module for the ET 200M distributed I/O system. It supports connection of up to 12 S7-300 modules and features isochronous real-time communication and module replacement without a programming device.

Detailed Technical Specifications of the Siemens 6ES7153-4AA01-0XB0

Interface Type: PROFINET IO interface module (IM 153-4 PN ST).

System Capacity: Supports connection of up to 12 S7-300 I/O modules.

Power Supply: 24 V DC (20.4-28.8V range), with a 5V/1.5A backplane output.

Communication: Supports isochronous real-time communication (Class 1 & 2).

Addressing: Provides 192 bytes of address space for both inputs and outputs.

Redundancy: Features Media Redundancy Protocol (MRP) for network reliability.

FAQ

Q1: What is the function of the Siemens 6ES7153-4AA01-0XB0 module?

A1: It is a PROFINET IO interface module (IM 153-4 PN ST) for connecting an ET 200M distributed I/O system to a PROFINET network.

Q2: How many S7-300 I/O modules can this interface connect?

A2: It supports a maximum of 12 S7-300 I/O modules.

Q3: What advanced communication feature does it support?

A3: It supports Isochronous Real-Time communication (Class 1 and 2) for highly synchronized applications.

Q4: What are its key power specifications?

A4: It requires a 24V DC supply (20.4-28.8V range) and provides a 5V, 1.5A output for the backplane bus.

Q5: Does it support network redundancy?

A5: Yes, it supports Media Redundancy Protocol (MRP) for enhanced network reliability.
