Product Overview

Siemens 6SL3220-1YD36-0UB0 is a SINAMICS G120XA converter rated for 37 kW output in a 380 to 440 V three-phase supply system. Siemens documentation identifies an unfiltered IP20 design, frame size FSD, USS fieldbus communication and 3C2-coated construction. Integrated forced-air cooling supports cabinet installation, while the published cable limits and environmental ranges guide system engineering. Procurement and replacement review should verify the complete suffix, incoming supply, motor rating, output current, EMC concept, cable length, USS communication settings, cabinet cooling, mounting dimensions and the saved drive parameters before the converter is installed or commissioned.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

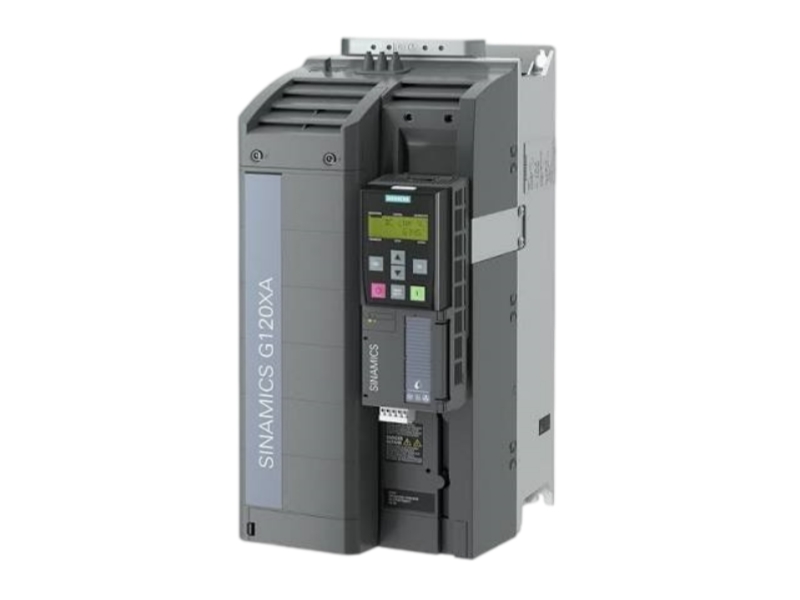

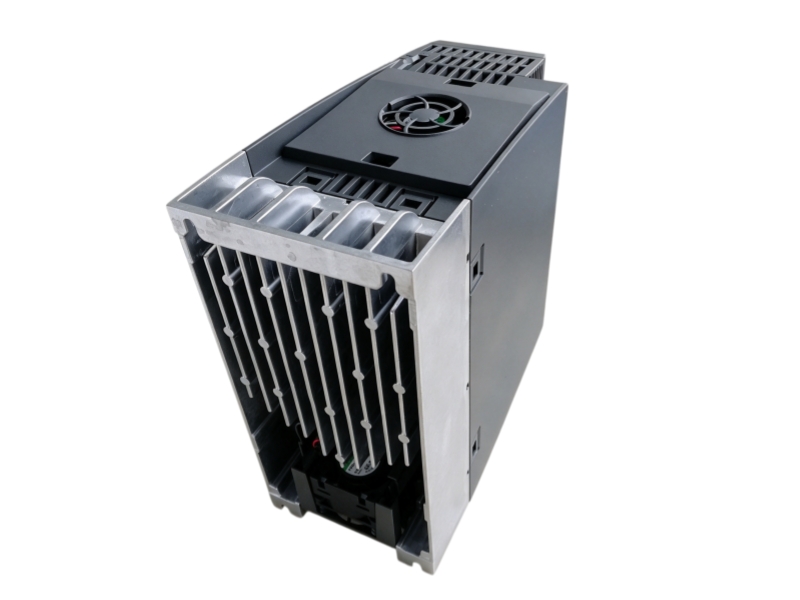

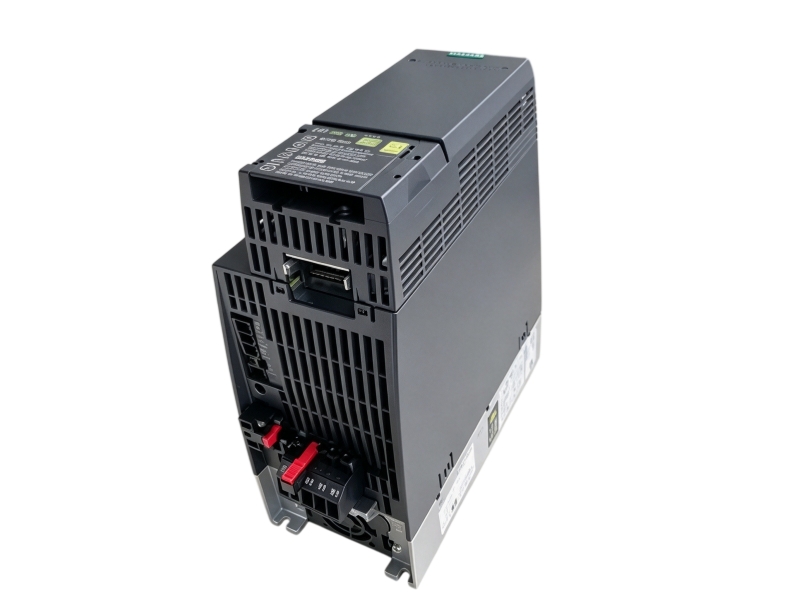

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Complete part number and 0UB0 suffix
• Three-phase input voltage and available current
• Motor power, rated current and load duty
• Unfiltered EMC arrangement and motor-cable length
• USS communication address and parameter set
• Cabinet airflow, ambient temperature and mounting clearance
• Drive parameter backup and commissioning records
• Readable nameplate, terminal and packaging photographs

Lifecycle Note

An exact current lifecycle designation for 6SL3220-1YD36-0UB0 was not available in the retrieved Siemens official records, so no lifecycle status is asserted here. Confirm the current designation through Siemens using the complete order code, and independently verify the power rating, USS communication, EMC arrangement, cooling and parameter set before replacement.
