Product Overview

Siemens 6SE7090-0XX84-0AD5 is a CUPM Motion Control Performance 2 control unit developed for SIMOVERT MASTERDRIVES motion-control equipment. Siemens documentation identifies the CUPM architecture with a 40 MHz C167 main processor, faster DSP capability, expanded RAM and ROM, and approximately twice the computational performance of the preceding CUMC design. The module retains the established equipment dimensions, but replacement planning still requires careful review of the installed drive configuration. Procurement checks should cover the complete order code, hardware identification, firmware or parameter backup, connector arrangement, control-board position and the machine commissioning records before installation.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

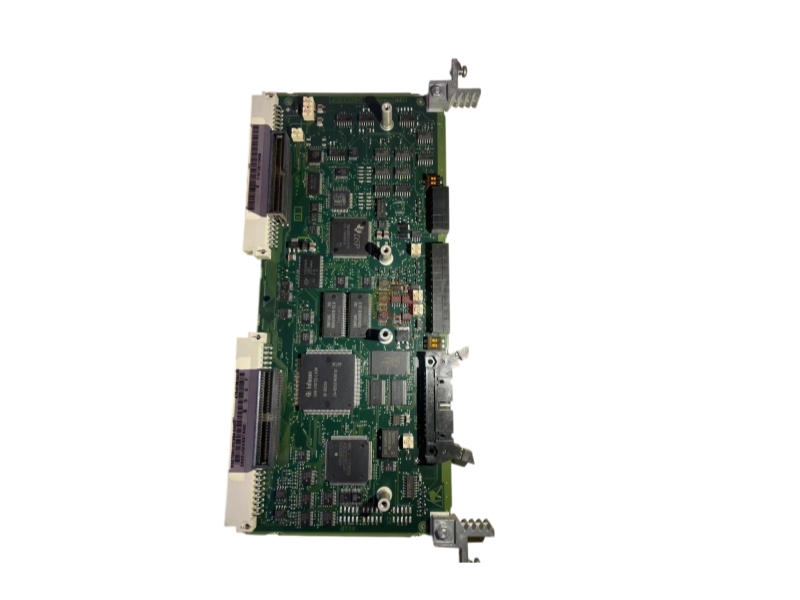

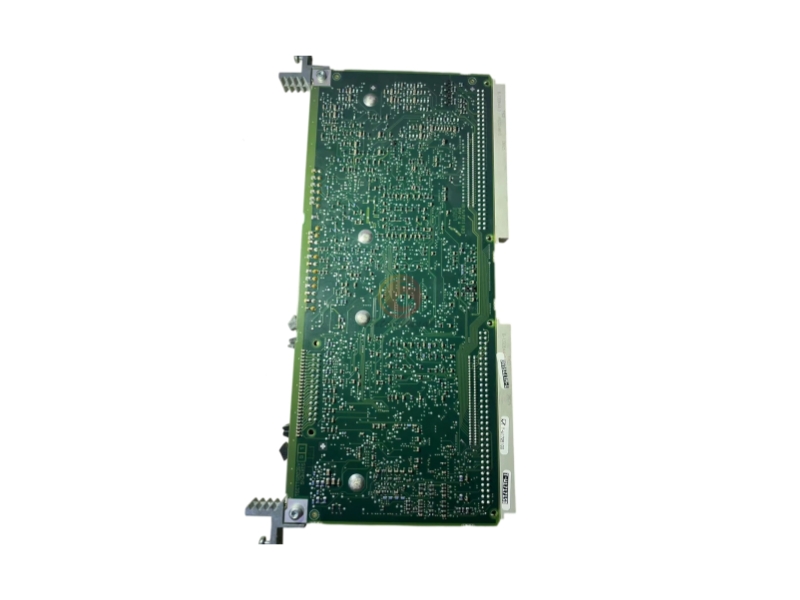

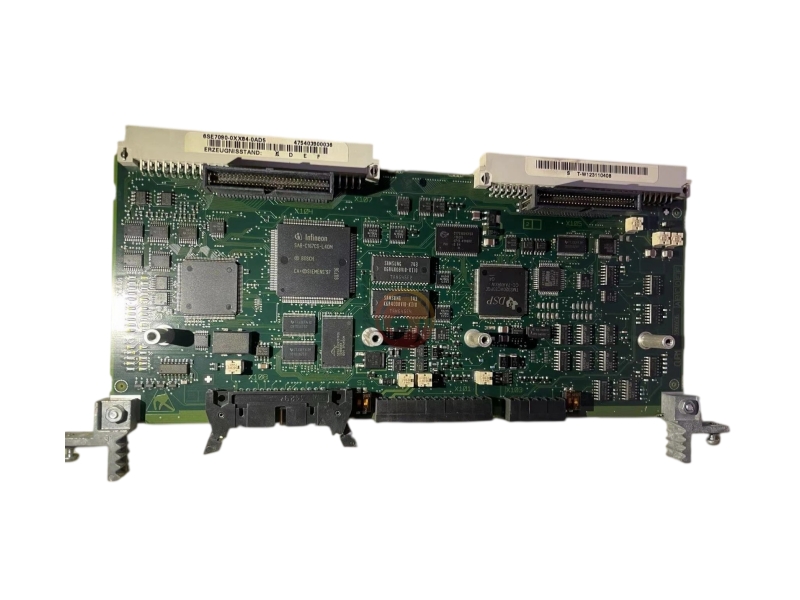

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Complete part number and AD5 suffix
• Control-unit hardware identification and installed board position
• Firmware, drive parameters and commissioning backup
• Connector arrangement and surrounding electronics
• Power-off replacement procedure and machine safety documentation
• Readable product label and packaging photographs

Lifecycle Note

Siemens identifies 6SE7090-0XX84-0AD5 as Discontinued. This lifecycle statement does not establish automatic interchangeability. The installed hardware, firmware, drive parameters, connectors and machine project should be reviewed before replacement.
