Single-phase 200–240 V servo drive for precise positioning and speed-control axes.

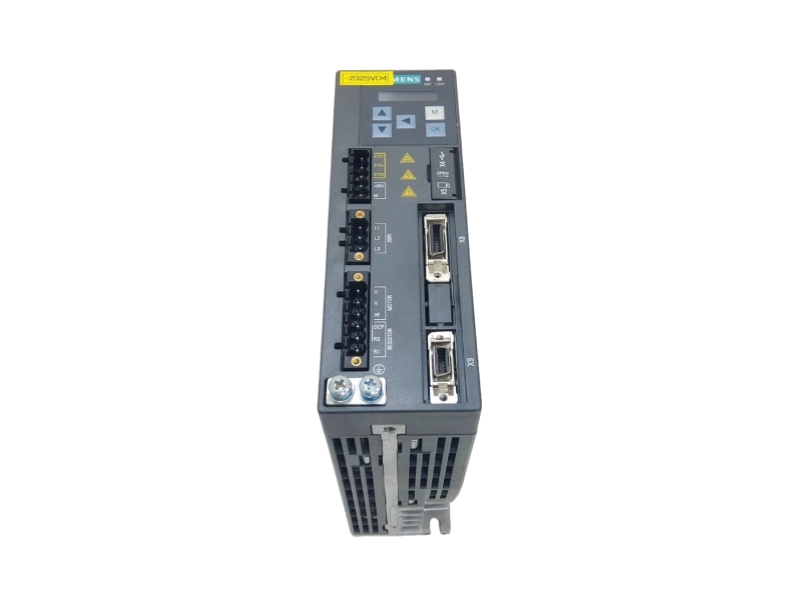

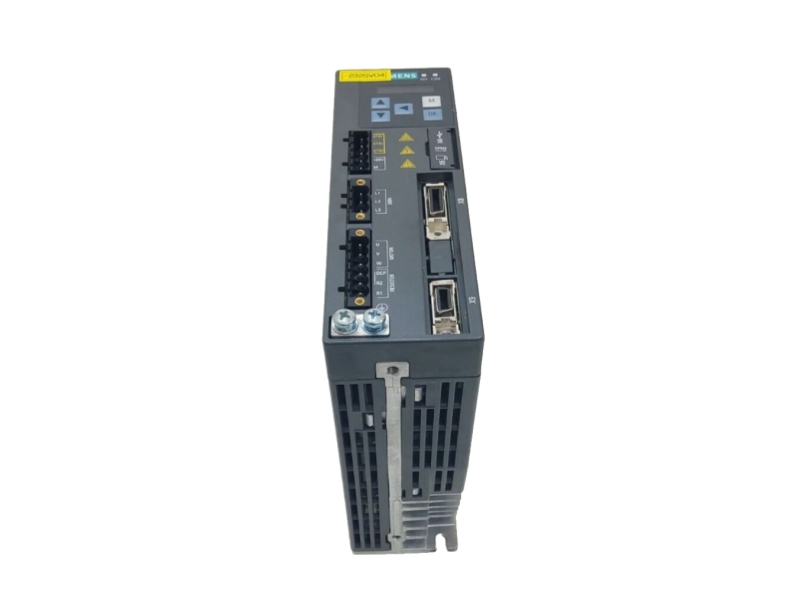

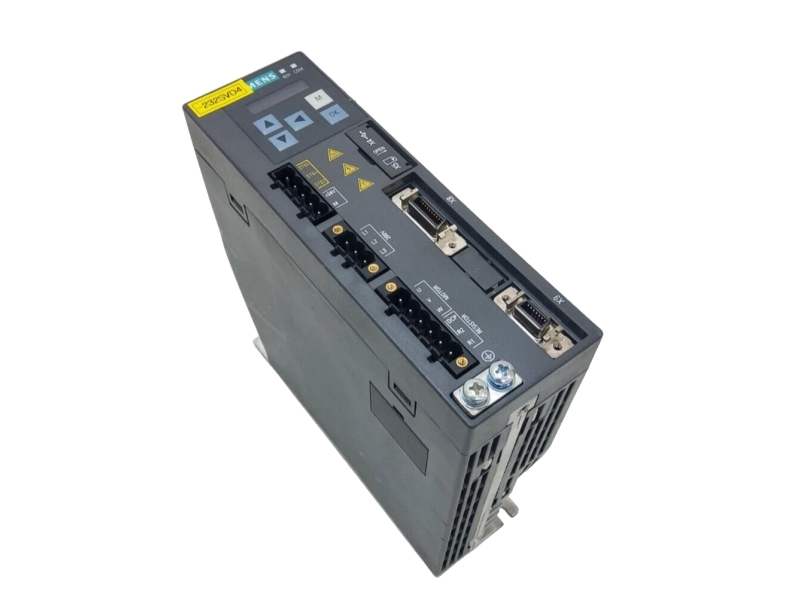

Siemens 6SL3210-5FB10-4UF1 is a SINAMICS V90 servo drive with PROFINET communication for compact industrial motion-control systems. The drive accepts a single-phase 200–240 V AC supply and provides a rated 0.40 kW output for a matched servo axis. It is suited to machine builders, maintenance teams and purchasing departments replacing or expanding V90-based equipment. Before ordering, confirm the complete article number, motor data, PROFINET topology, control voltage, connector set, mechanical installation space and the parameter backup required for the target machine.
| Manufacturer | Siemens |
| Complete Part Number | 6SL3210-5FB10-4UF1 |
| Product Type | SINAMICS V90 servo drive with PROFINET |
| Series | SINAMICS V90 |
| Model Configuration | 1 AC 200–240 V input; 0.40 kW rated output; PROFINET |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware / Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the motor, encoder, power, connectors, PROFINET network and project parameters before ordering. |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are quoted by destination and shipment terms. |
| Technical Field | Confirmed Value |
|---|---|
| Input voltage | 1 AC 200–240 V, +10% / −15% |
| Input frequency | 45–66 Hz |
| Rated motor power | 0.40 kW |
| Rated output current | 2.60 A |
| Maximum output current | 7.80 A |
| Communication | PROFINET |
| Standard digital I/O | 4 digital inputs; 2 digital outputs |
| Protection / frame size | IP20 / UL open type; FSB |
| Dimensions (W × H × D) | 55 × 170 × 170 mm |
| Net weight / cooling | 1.25 kg / natural convection |
| Operating / storage temperature | 0 to 45 °C / −40 to 70 °C |
| Maximum installation altitude | 1000 m |
The drive receives motion commands through PROFINET and regulates a matched servo motor for positioning, speed and torque-oriented machine functions.
Verify the motor rating, encoder arrangement, cable set, control supply, network configuration and mechanical envelope against the installed axis.
Record the complete label, firmware, parameter backup, motor nameplate and PROFINET device settings before removing the existing drive.
Confirm the full article number 6SL3210-5FB10-4UF1, input supply, 0.40 kW axis rating, motor and encoder data, connector set, PROFINET device configuration, hardware revision, firmware version and installation dimensions. Send photos of the existing product label and motor nameplate when requesting a replacement. Compatibility must be checked for the actual machine project and parameter set.
Please contact us with the required quantity and destination to confirm current availability and quotation terms.
Verify the complete part number, supply voltage, 0.40 kW motor rating, PROFINET interface, connector set, firmware and stored parameters.
Available product and label photos can be reviewed during quotation so the ordered configuration can be checked.
The product condition is NEW and the offer includes a one-year warranty under the written quotation terms.
Yes. Shipping options, cost and documentation are confirmed according to destination, weight and agreed trade terms.
Provide the existing drive label, motor nameplate, machine model and project information for a structured pre-order review.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented service route for Siemens 6SL3210-5FB10-4UF1 sourcing, compatibility review, shipment and after-sales communication.
Review the complete article number, voltage class, rated power and PROFINET communication requirement.
Confirm NEW condition and review available product, label, connector and packaging photos before shipment.
Compare motor data, encoder arrangement, cable set, firmware, parameters, dimensions and network configuration.
Prepare suitable shock, moisture and connector protection for the selected domestic or international transport route.
Confirm carrier, freight cost, shipment tracking and customs documentation for the destination and agreed terms.
Provide one-year written warranty terms, issue documentation and a return-authorization route for approved cases.
| Quotation clarity | Condition, quantity, warranty, price, availability and shipping terms are stated in the written offer. |
| Technical review | Model, suffix, voltage, power, communication, motor and installation details are checked from the information supplied. |
| Shipping support | Worldwide delivery, tracking and export documentation are arranged according to destination and trade terms. |
| After-sales response | Report issues with the product label, serial number, photos and test evidence for documented review. |
