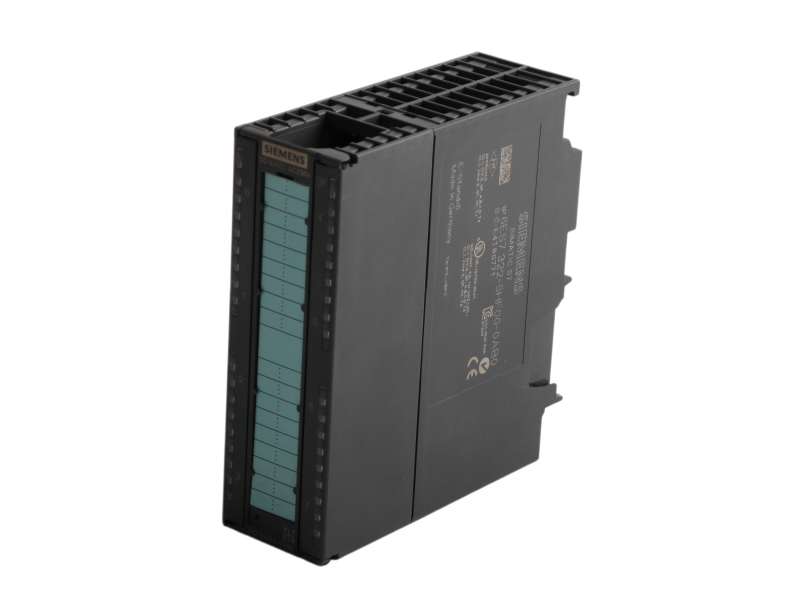

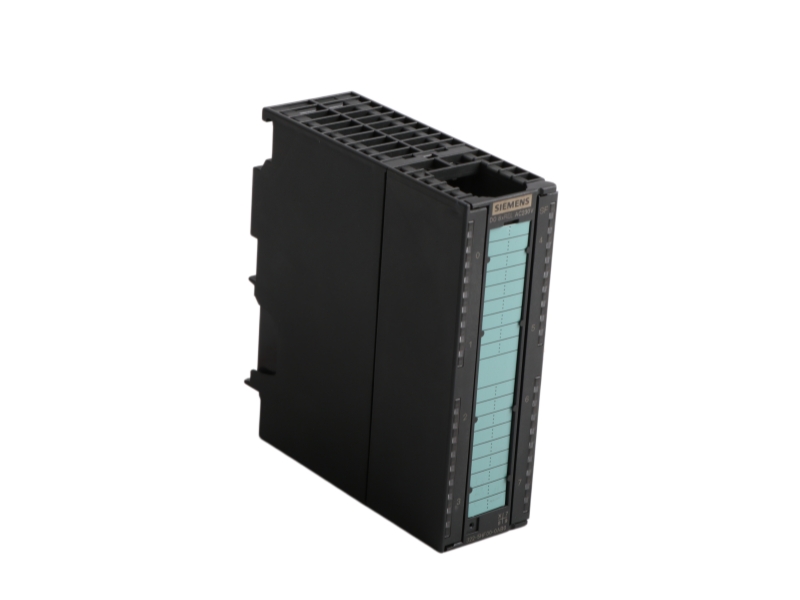

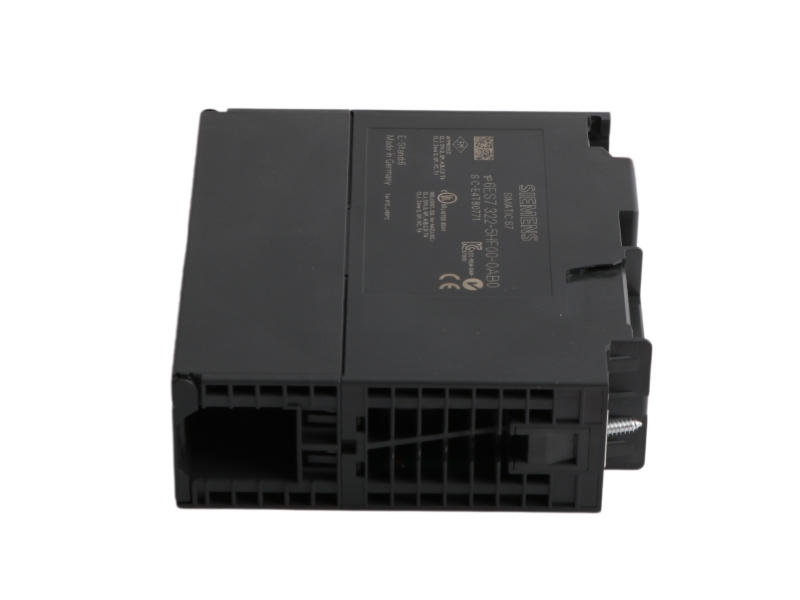

Siemens 6ES7322-5HF00-0AB0 SIMATIC S7-300 SM 322 8-Channel Relay Output Module

Siemens 6ES7322-5HF00-0AB0 SIMATIC S7-300 SM 322 Relay Output Module

Inquiry now

Siemens industrial automation / exact-order review

6ES7322-5HF00-0AB0

SIMATIC S7-300 SM 322 8-channel relay output module

Product Summary

The Siemens 6ES7322-5HF00-0AB0 is an SM 322 digital output module for SIMATIC S7-300 systems. Its eight electrically isolated relay outputs support switching duties for control-panel loads within the published module ratings. The module is relevant to planned S7-300 maintenance, relay-output expansion and replacement work where the complete order number, front connector arrangement and load characteristics must match the installed system. Before ordering, confirm the full part number, existing rack configuration, required load voltage, output-current demand and the module label.

Key Product Information

Manufacturer	Siemens
Complete Part Number	6ES7322-5HF00-0AB0
Product Type	SIMATIC S7-300 SM 322 8-channel relay output module
Series	SIMATIC S7-300 / SM 322
Model Configuration	8 electrically isolated relay outputs; 1×40-pole connection
Product Condition	NEW
Hardware Revision	Contact us to confirm
Firmware / Software Version	Contact us to confirm
Country of Origin	GERMANY
Compatibility	Confirm the installed system, module position, wiring and complete suffix before ordering
Warranty	With 1 year warranty
Availability	Contact us to confirm
Shipping	Worldwide shipping options available after quotation

Verified Technical Data

Digital outputs	8 relay outputs
Electrical isolation	Yes
Load-voltage range	24–120 V DC; 24–230 V AC
Rated output current	5 A
Connector	1×40-pole
Contact protection	RC quenching element selectable by jumper

Functions and Engineering Value

Relay load control

Eight isolated relay channels for switching compatible field loads.

Diagnostic support

Group fault indication, channel status displays and programmable diagnostic interrupt.

Maintenance flexibility

Programmable substitute values and parameter reassignment in RUN support service work.

Contact protection

RC suppression can be selected by jumper for supported contact-protection arrangements.

Applications

01 — S7-300 control-panel relay output expansion
02 — Replacement of a matching SM 322 relay output module
03 — Switching compatible contactors, solenoid valves and signal lamps
04 — Maintenance of installed machinery using S7-300 I/O

Procurement Checklist

Match the complete part number 6ES7322-5HF00-0AB0.
Confirm the installed system, module slot and connection arrangement.
Verify field voltage, signal type, wiring and load requirements.
Request product and label photos for the available unit.
State quantity and destination country for shipping review.

Compatibility and Revision Notice

Use the complete Siemens order number as the primary identification point. Check the installed CPU or I/O station, connector or BaseUnit, signal and load requirements, module position, hardware revision, firmware requirements and original label photos before replacement. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

FAQ

Q1. What must be checked before ordering?

Confirm 6ES7322-5HF00-0AB0, the 40-pole connection, load voltage, current demand and installed S7-300 configuration.

Q2. Does the module provide eight relay outputs?

Yes. Siemens specifies eight electrically isolated relay outputs for this order number.

Q3. Can the module switch both AC and DC loads?

The published load-voltage ranges include 24–120 V DC and 24–230 V AC; the actual load must remain within the documented ratings.

Q4. Is external short-circuit protection required?

Siemens states that short-circuit protection is not integrated and must be provided externally.

Q5. Can product and label photos be supplied?

Q6. Is international shipping available?

Worldwide shipping options can be quoted after destination, packing and trade terms are confirmed.
