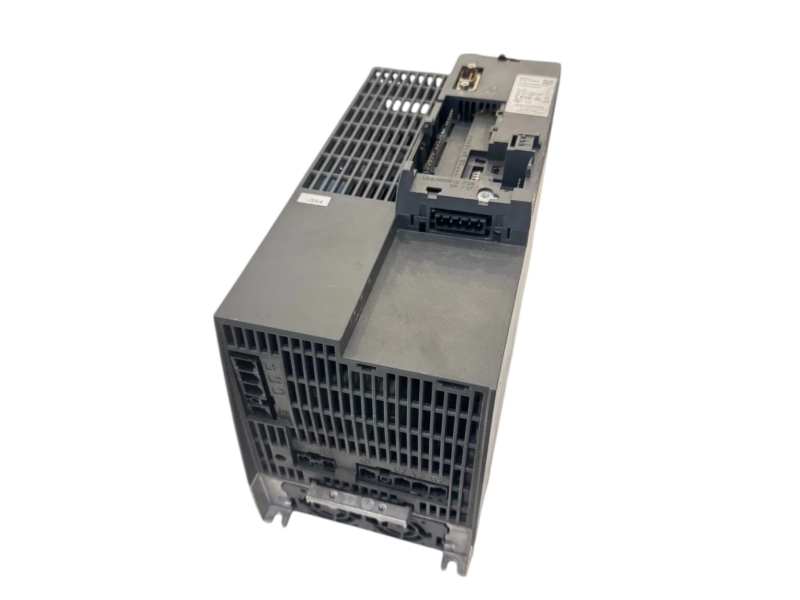

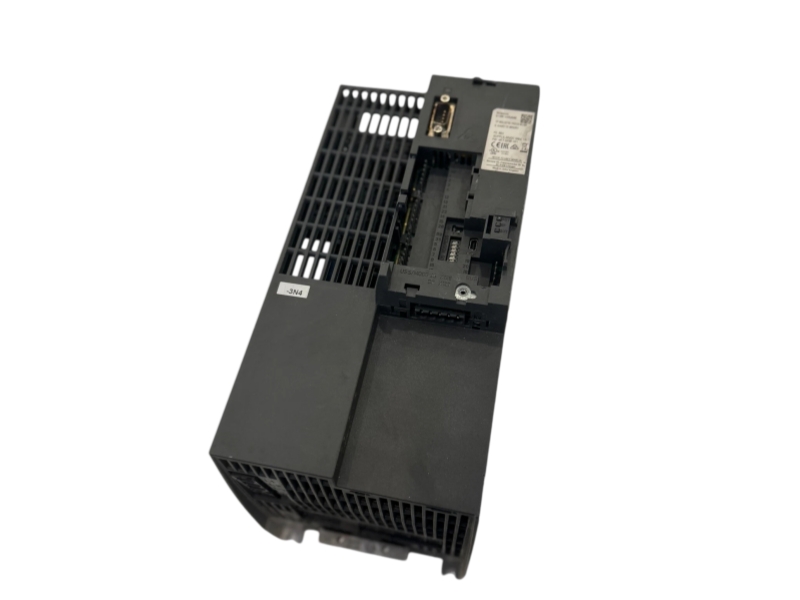

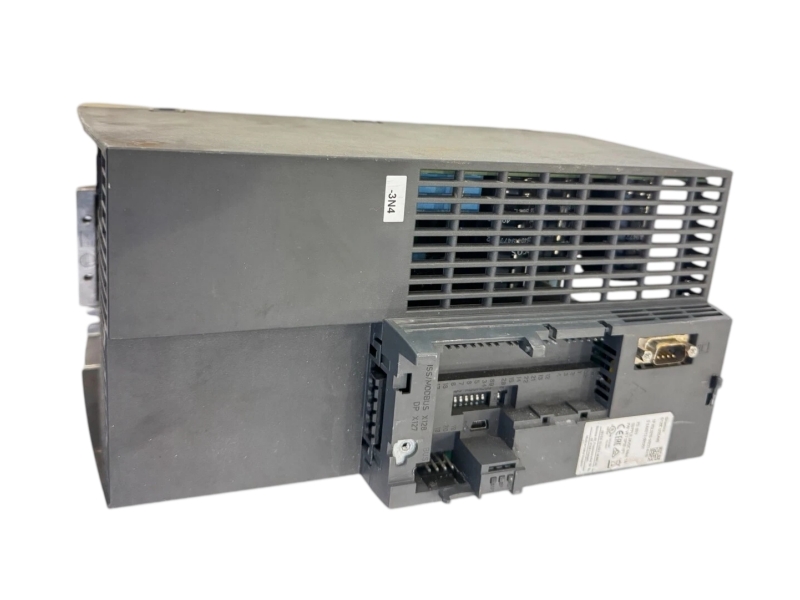

Siemens 6SL3210-1KE22-6UB1 is a SINAMICS G120C compact converter for three-phase 380–480 V AC supplies. The exact configuration delivers 11.0 kW under low-overload duty, uses an unfiltered power stage, and provides USS/Modbus RTU fieldbus communication.
The integrated I/O interface includes digital, analog and motor-temperature connections, while Safe Torque Off supports safety-oriented machine designs. Frame size FSC and the published mechanical dimensions must be checked against cabinet space, cooling and EMC requirements before replacement or new installation.
| Catalog item | Verified Siemens information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6SL3210-1KE22-6UB1 |
| Product family | SINAMICS G120C compact converters |
| Official product lifecycle | Active Product |
| Configuration identity | USS/Modbus RTU, 11.0 kW, unfiltered, frame size FSC |
| Parameter | Official value |
|---|---|
| Rated input | 3 AC 380–480 V, +10% / -20% |
| Line frequency | 47–63 Hz |
| Low-overload rating | 11.0 kW; 150% for 3 s, 110% for 57 s, 100% for 240 s |
| High-overload rating | 7.5 kW; 200% for 3 s, 150% for 57 s, 100% for 240 s |
| Output current | 25 A low overload; 16.5 A high overload |
| Power-stage filter | Unfiltered |
| Fieldbus | USS / Modbus RTU |
| External control supply | 24 V DC |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Digital outputs | 1 relay changeover + 1 transistor output |
| Analog / digital input | 1 differential input, 10-bit resolution |
| Analog output | 1 non-isolated output |
| Motor-temperature input | 1; PTC, KTY or Thermo-Click |
| Integrated safety function | Safe Torque Off (STO) |
| Control methods | V/f, FCC, V/f ECO and sensorless vector control |
| Protection | IP20 / UL open type |
| Cooling | Integrated fan |
| Operating temperature | -10 to +40 °C |
| Installation altitude | Up to 1,000 m |
| Maximum motor cable length | 150 m shielded or unshielded |
| Frame size | FSC |
| Dimensions | 295 × 140 × 203 mm (H × W × D) |
| Siemens catalog net weight | 5.2 kg |
| Packaging dimensions | 270 × 365 × 160 mm (L × W × H) |
| 1. Order-code match | Confirm the complete 6SL3210-1KE22-6UB1 code. PROFIBUS, PROFINET and filtered variants use different suffixes. |
| 2. Supply and motor | Verify the 3 AC 380–480 V supply, motor nameplate, current, duty cycle and overload requirement. |
| 3. Communication | Confirm USS/Modbus RTU wiring, address, baud rate, parity and PLC/HMI integration. |
| 4. EMC design | This is the unfiltered variant; confirm the required external EMC measures, cable routing and grounding. |
| 5. Safety circuit | Validate the STO circuit, safety category and commissioning tests for the machine. |
| 6. Mechanical installation | Check FSC dimensions, ventilation, clearances, terminal access and ambient temperature. |
| Information | Required detail | Review purpose |
|---|---|---|
| Order code | 6SL3210-1KE22-6UB1 | Prevents communication or filter mismatch |
| Motor data | Power, voltage, current, frequency and duty | Confirms drive sizing |
| Existing network | USS/Modbus RTU settings and wiring | Supports integration review |
| Safety circuit | STO wiring and machine-safety record | Supports controlled replacement |
| Commercial request | Quantity, destination and required date | Enables stock and logistics planning |
