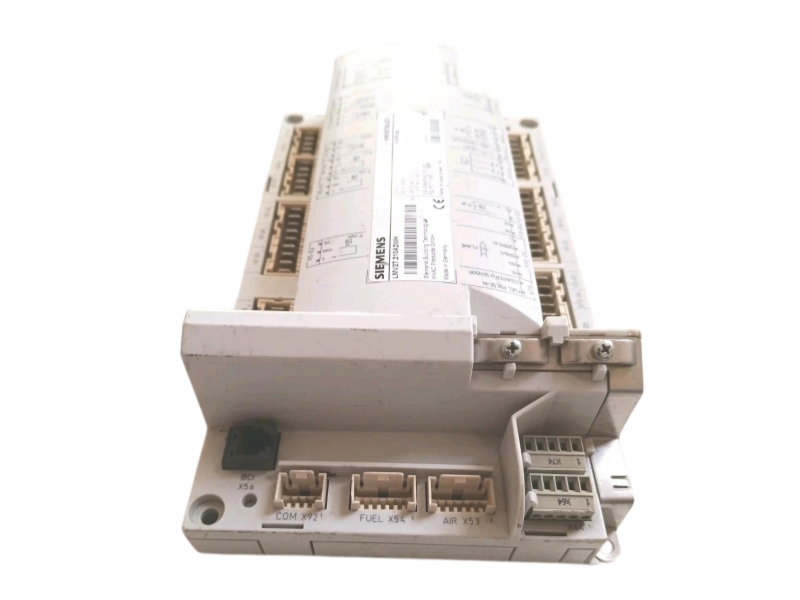

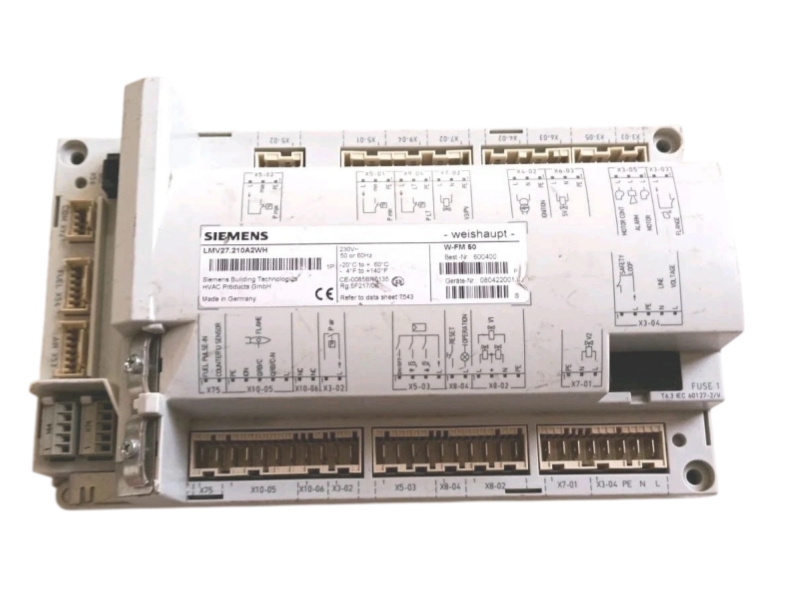

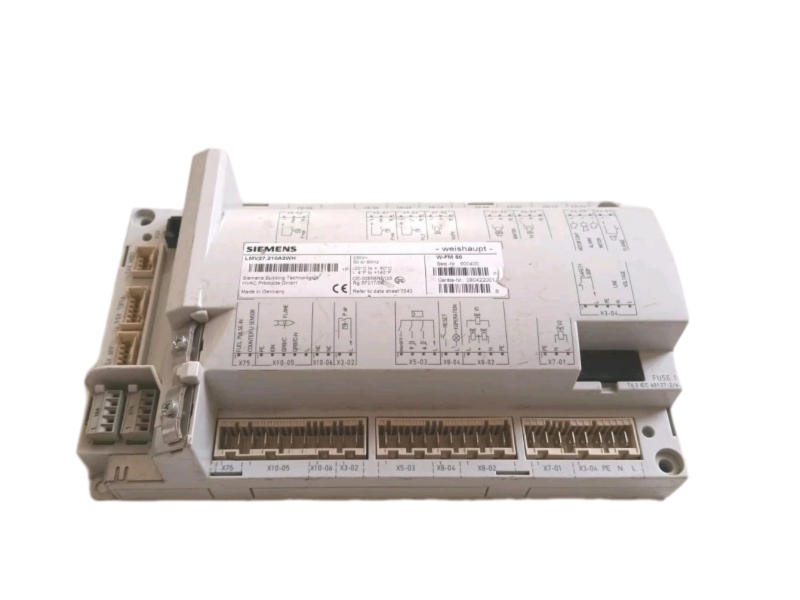

SIEMENS BURNER MANAGEMENT SYSTEM
LMV27 family controller for forced-draft burner supervision, fuel-air ratio control and integrated valve proving.
The requested Siemens LMV27.210A2WH belongs to the LMV27 burner-management family. Siemens describes the LMV27 platform as a microprocessor-based burner control for forced-draft burners of medium to high capacity, combining burner supervision with electronic fuel-air ratio control for up to two actuators.
Current Siemens document CC1N7541en confirms the LMV27 family functions and electrical data used below. The complete suffix LMV27.210A2WH does not appear in the current official ordering table, so its exact lifecycle and configuration are not inferred from another variant. Nameplate evidence and installed-system data are essential.
| Manufacturer | Siemens |
|---|---|
| Requested model | LMV27.210A2WH |
| Officially confirmed family | LMV27 burner management system |
| Official family documentation | CC1N7541en — status Valid |
| Exact suffix lifecycle | Not confirmed in current Siemens ordering documentation |
| Parameter | Official value |
|---|---|
| System architecture | Microprocessor-based burner management system |
| Burner operation | Single-fuel burners in intermittent operation |
| Fuel-air ratio control | Up to 2 SQM3 or SQN1 actuators |
| Valve proving | Integrated gas valve proving |
| Communication | Modbus interface and BCI service/display interface |
| Rated supply | AC 230 V, -15% / +10% |
| Rated frequency | 50/60 Hz ±6% |
| Power consumption | Less than 30 W, typical |
| Degree of protection | IP00; installation must provide at least IP40 protection |
| Fuse data | Internal 6.3 AT; external maximum 16 AT |
The LMV27 platform is intended for control and supervision of forced-draft burners in the medium-to-high capacity range.
Combines burner sequencing, valve proving and electronic fuel-air ratio control for up to two compatible actuators.
Official family documentation references burner applications under EN 676 for gaseous fuels and EN 267 for liquid fuels.
The exact lifecycle of LMV27.210A2WH is not confirmed in the current Siemens LMV27 ordering table. No Active, Discontinued or successor claim is assigned. Procurement must rely on the complete nameplate, installed configuration and manufacturer confirmation for this suffix.
It is a requested model within the Siemens LMV27 burner-management family; the exact suffix requires nameplate verification.
The official family documentation covers burner control, gas valve proving and fuel-air ratio control for up to two actuators.
Siemens specifies AC 230 V with a -15% / +10% tolerance and 50/60 Hz ±6%.
The LMV27 family documentation identifies Modbus and a BCI interface for display or service access.
No. This complete suffix is not listed in the current Siemens ordering table, so no lifecycle status is inferred.
Send the complete nameplate, burner model, fuel type, actuator and flame-detector data, parameter records, quantity and destination.
Share nameplate photos, burner configuration, quantity and destination. We will review the exact suffix, documentation, technical checkpoints, sourcing options, delivery and applicable warranty terms.
Structured sourcing support for Siemens LMV27.210A2WH, combining exact article-number review, lifecycle awareness, technical compatibility checks, documentation control and coordinated global delivery.
A burner management system request requires more than a stock response. Our process begins with the complete article number and checks the installed system, electrical and communication details, lifecycle evidence, required accessories and delivery conditions. This helps purchasing, engineering and maintenance teams work from the same verified information.
For every request, we can coordinate availability review, manufacturer-document comparison, visual condition records, packing, export preparation, shipment tracking and warranty clarification. The goal is a traceable procurement path for urgent maintenance, expansion and planned replacement projects.
A dedicated coordinator organizes the full LMV27.210A2WH article number, requested quantity, target equipment, existing configuration and delivery destination before sourcing begins. Clear intake improves quotation accuracy and prevents a different suffix or similarly named variant from entering the request.
We compare the visible nameplate and supplied system data with official manufacturer documentation. The review highlights verified technical parameters, lifecycle wording, interface requirements and open compatibility points so engineers can make an informed approval decision before shipment.
Industrial electronics are prepared with protective packing appropriate to the route and handling requirements. The service team coordinates export documents, tracking and delivery updates, while the applicable warranty scope and after-sales contact points are clarified with the commercial offer.
| Request item | Why it matters |
|---|---|
| Full nameplate and article number | Confirms the exact LMV27.210A2WH variant and helps prevent suffix errors. |
| Installed system and configuration | Supports review of burner type, fuel, actuators, flame detector, safety chain, parameter set and communication requirements. |
| Quantity and required accessories | Clarifies the delivery scope, connectors, cables, terminals or mounting items. |
| Destination and required date | Supports routing, export documentation, packing and delivery planning. |
Send the full LMV27.210A2WH nameplate, system details, quantity and destination. We will review sourcing options, technical checkpoints, condition evidence, global delivery and applicable warranty terms.
