A stabilized 960 W industrial power supply converting 120/230 V AC input to 24 V DC at 40 A.

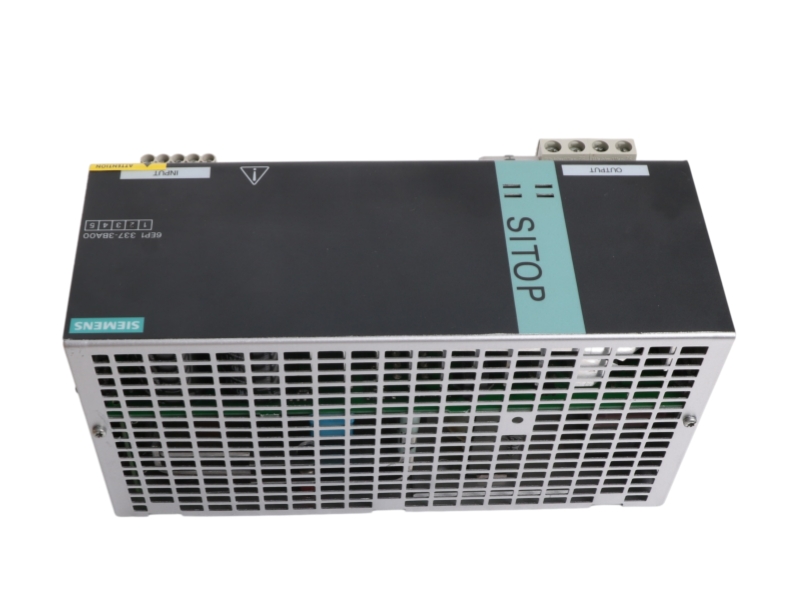

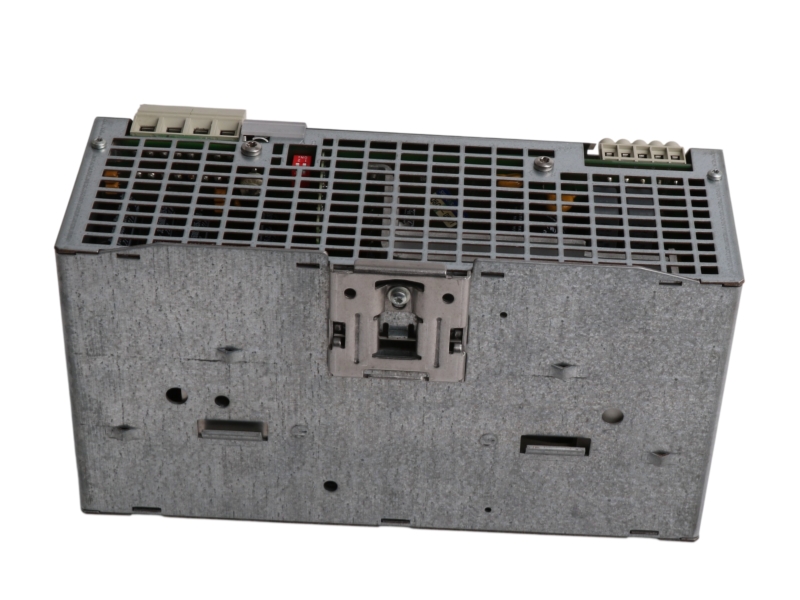

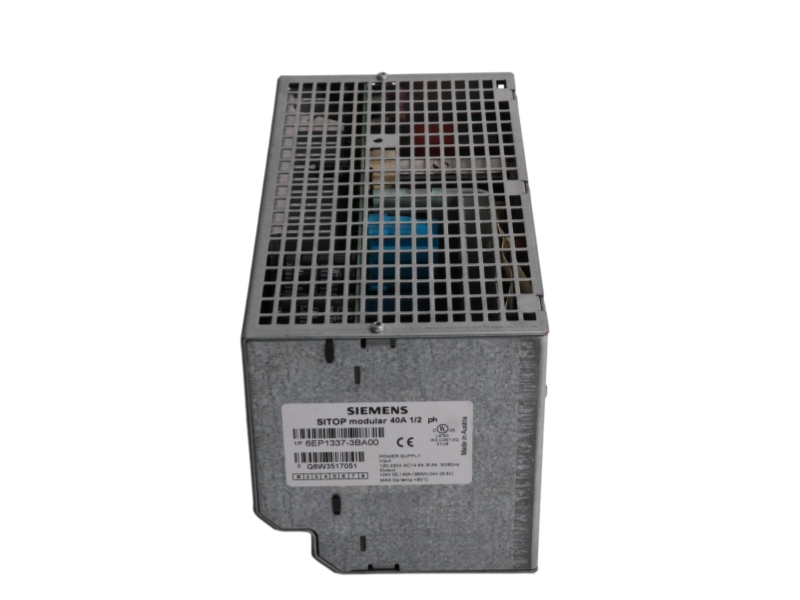

The Siemens 6EP1337-3BA00 is a SITOP PSU100M stabilized power supply rated for 24 V DC at 40 A. It accepts selectable 120/230 V AC input ranges, provides an adjustable 24 to 28.8 V DC output and supplies up to 960 W for high-current control loads. Siemens lists the product under PM400 product phase-out and identifies 6EP3337-8SB00-0AY0 as the substitute.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6EP1337-3BA00 |
| Product Family | SITOP PSU100M |
| Product Type | 40 A stabilized industrial power supply |
| Product Lifecycle | PM400: Announcement of product phase-out |
| PLM Effective Date | Product phase-out since 01/06/17 |
| Official Substitute | 6EP3337-8SB00-0AY0 |
| Input voltage ranges | 85 to 132 V AC and 176 to 264 V AC |
|---|---|
| Rated input | 120/230 V AC |
| Line frequency | 50/60 Hz; permissible range 47 to 63 Hz |
| Input current | 15 A at 120 V; 8 A at 230 V |
| Rated output | 24 V DC, 40 A, 960 W |
| Adjustable output | 24 to 28.8 V DC |
| Mains buffering | At least 20 ms at 230 V and rated output |
| Overall voltage tolerance | 3% |
| Residual ripple | 100 mV maximum; 60 mV typical |
| Peak voltage | 200 mV maximum |
| Connection system | Screw terminals; DIN rail mounting |
| Dimensions (W × H × D) | 240 × 125 × 120.5 mm |
| Weight | Approximately 2.9 kg |
Supplies 24 V DC loads such as PLC I/O, relays, valves and operator equipment where up to 40 A is required.
Provides a stabilized central 24 V rail for industrial machines and production cells.
Supports like-for-like maintenance review while evaluating the official 6EP3337-8SB00-0AY0 substitute.
It is a Siemens SITOP PSU100M stabilized power supply rated at 24 V DC and 40 A.
It supports 120/230 V AC operation through the specified 85–132 V and 176–264 V ranges.
Yes. The DC output can be adjusted from 24 to 28.8 V.
Siemens lists PM400: Announcement of product phase-out, effective since 01/06/17.
Siemens identifies 6EP3337-8SB00-0AY0, subject to full compatibility and installation checks.
Send the complete order number and installed-system details for stock verification, compatibility review, warranty terms and global delivery options.
Ask about 6EP1337-3BA00Structured support for identifying, evaluating, packing and delivering the 6EP1337-3BA00 power supply.
| Stage | Service | What we review |
|---|---|---|
| 01 | Application matching | AC input range, protective device, 24 V load current, conductor sizing, cabinet space, ventilation and redundancy requirements. |
| 02 | Identity verification | Full order number, suffix, nameplate details, hardware revision and readable traceability markings. |
| 03 | Incoming inspection | Housing, terminals, DIN-rail latch, label, fan or ventilation areas and signs of thermal stress are checked against the offered condition. |
| 04 | Protective packing | ESD protection, connector shielding, moisture control and impact-resistant outer packaging for industrial electronics. |
| 05 | Global logistics | Shipment planning, commercial documents, tracking information and delivery coordination for the destination country. |
| 06 | Warranty follow-up | Warranty scope, inspection basis and return procedure are stated with the quotation and order documentation. |
Full MLFB, serial number, hardware or firmware status and readable product label.
Input protection, wiring size, 24 V load distribution, cabinet rail and available clearances.
Continuous and peak load, redundancy arrangement, downstream protection and required output setting.
Required quantity, destination, target date and condition preference.
Measure the actual 24 V load and record wiring, protection and cabinet clearances. Evaluate the official substitute only after electrical and mechanical compatibility checks.
Send your 6EP1337-3BA00 nameplate details and application information for a configuration-focused response.
