SINAMICS / DRIVE OPERATOR INTERFACE
Operating information and parameter access for a configured drive system.

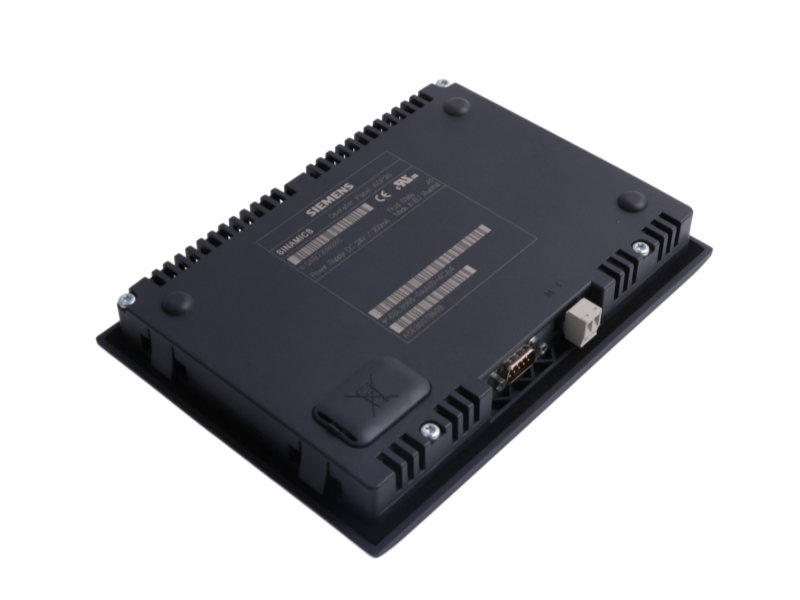

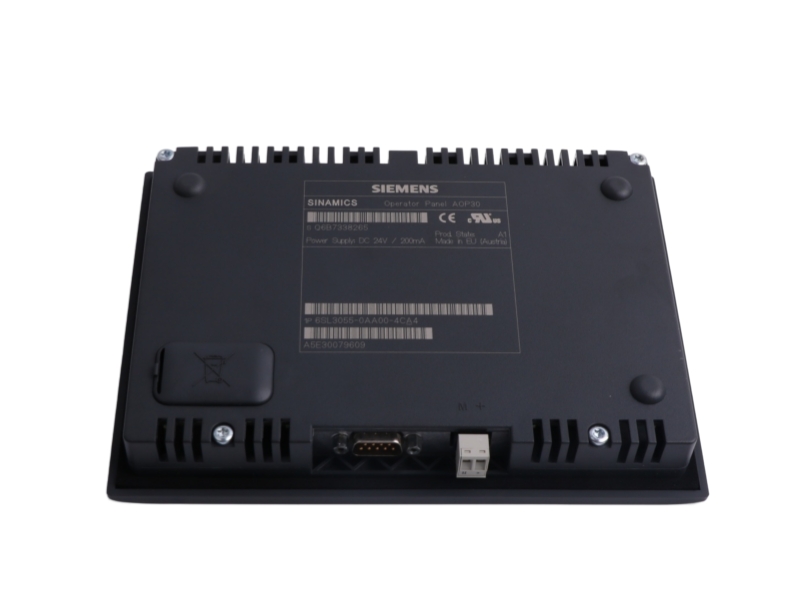

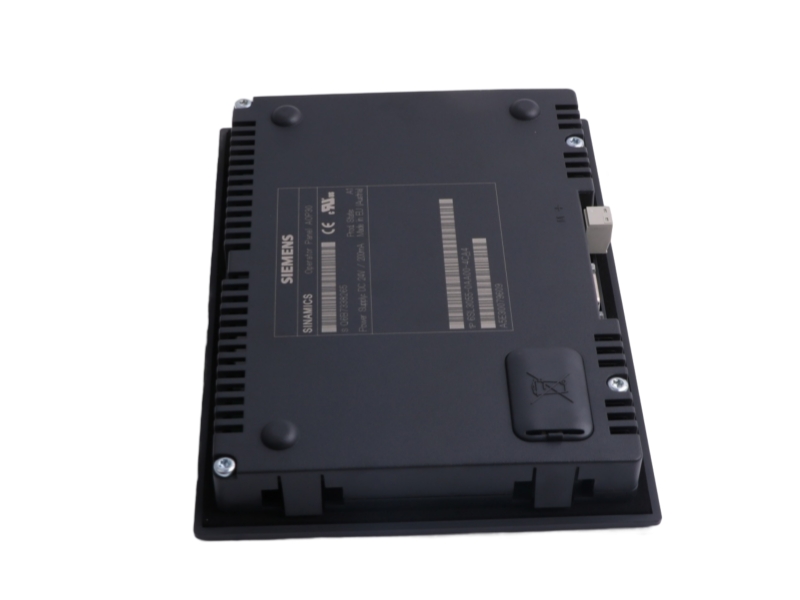

The Siemens 6SL3055-0AA00-4CA4 is an Advanced Operator Panel AOP30 for SINAMICS drive applications. Siemens identifies this order code as an AOP30 version with the additional RS485 interface required for SINAMICS DC MASTER use. The panel presents operating information, parameter values, faults and alarms for the connected drive. It is an operator interface, not a converter power unit or a general-purpose machine controller. Replacement planning should include the installed drive, control-unit arrangement and connecting cable. Stockoems supports product identification, condition information and shipment coordination so procurement and engineering teams can agree the panel and accessory supply scope before ordering.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
Match the complete panel order number to the drive and control-unit configuration. Select the correct connecting cable for the installed arrangement and define its inclusion separately in the purchase scope.
| Parameter | 6SL3055-0AA00-4CA4 |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6SL3055-0AA00-4CA4 |
| Product designation | Advanced Operator Panel AOP30 |
| Product family | SINAMICS |
| Documented drive application | SINAMICS DC MASTER / SINAMICS DCM |
| Additional interface | RS485 |
| Displayed information | Operating states, setpoints, actual values and parameters |
| Diagnostic information | Faults and alarms |
| SINAMICS DCM arrangement | One AOP30 per drive unit, with up to two CUDs |
| Country of origin | GERMANY |
The AOP30 provides access to operating information and parameters for the configured drive. Its display supports review of setpoints, actual values, parameter indices, faults and alarms. The panel does not replace the drive control unit, converter hardware or the machine safety system.
Siemens specifies RS485 connecting arrangements for one or two CUDs in a SINAMICS DCM unit. Review the installed CUD arrangement and cable selection before replacement. Preserve the drive configuration and follow the applicable installation and commissioning procedure.
Compare the full 6SL3055-0AA00-4CA4 order number with the installed panel, drive type, CUD arrangement and connecting cable. Earlier AOP30 versions do not all have the additional RS485 interface required for SINAMICS DC MASTER. Do not assume interchangeability from the AOP30 name alone.
It is the SINAMICS Advanced Operator Panel AOP30, used as a drive operator interface.
Yes. Siemens identifies this order code as having the additional RS485 interface required for SINAMICS DC MASTER use.
The AOP30 displays operating states, setpoints, actual values, parameter information, faults and alarms for the connected drive.
Siemens specifies one AOP30 for each drive unit with up to two CUDs. The connecting cable must suit the installed arrangement.
The cable is a separately identified accessory. Its required arrangement and inclusion should be specified in the purchase scope.
Check the exact panel version, drive type, CUD arrangement and specified connecting cable. Record the fault information and let qualified personnel investigate under the site maintenance procedure.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
STOCKOEMS / PROCUREMENT SUPPORT
A clear purchase record connects the end user, buyer and engineer. We coordinate product information, inspection requirements, packaging and shipment details around the agreed order scope.
Model and suffix verification starts with the full order code, required quantity and installed label. Product and label photo confirmation helps distinguish the requested item from a similar-looking variant.
Condition confirmation covers the stated product condition and available packaging evidence. Our technical compatibility review uses the customer's installed configuration and documentation; final engineering approval remains with the responsible site team. Agree any inspection or test scope before ordering.
Protective packaging is selected for the item and transport route. Worldwide shipping coordination covers destination details, carrier options, customs documentation and shipment tracking. Dispatch timing is agreed for the actual order, not inferred from a generic stock statement.
Written warranty terms define the coverage and claim procedure. After-sales response includes collecting the model, label photographs and issue description. Follow the return authorization process before sending any item back.
Inspection planning and documented checks
Technical review and installation coordination
Request the exact manufacturer and part number, current item and label photographs, a written condition statement, the supply scope and the warranty terms. A photograph alone does not establish authenticity or suitability.
Check the legal company identity, quotation details, invoice information and payment beneficiary for consistency. Ask for a documented order process, packaging arrangements and a named after-sales contact. Independently verify unexpected changes to payment instructions.
Compare the complete suffix, hardware revision, system configuration and applicable installation documentation. Ask the supplier to distinguish verified facts from assumptions. A similar appearance or product family is not proof of interchangeability.
Treat mismatched labels, edited photographs, vague condition descriptions, unexplained price differences, pressure to pay immediately and refusal to provide written terms as reasons for additional checks. None of these signals should be resolved by a verbal promise alone.
A useful report identifies the inspected item and records the inspection date, checks performed, findings and any limitations. Ask whether the work was a visual inspection or a functional test; do not assume the two are equivalent.
Obtain written coverage, exclusions, required evidence and the return authorization procedure before purchase. Keep the quotation, label photographs and delivery records with the order so any issue can be investigated efficiently.
Stockoems brings model checking, photo coordination, packing preparation, logistics communication and after-sales follow-up into one procurement conversation. We do not promise unverified lead times, unspecified testing or a fixed inventory quantity.
