SCALANCE W · W788-1PRO
Rugged single-radio dual-band IWLAN access point for industrial wireless communication outside the USA.
OFFICIAL LIFECYCLE
PM500: Discontinued Product or end of PLM & Support
End of lifecycle since 2024-10-01

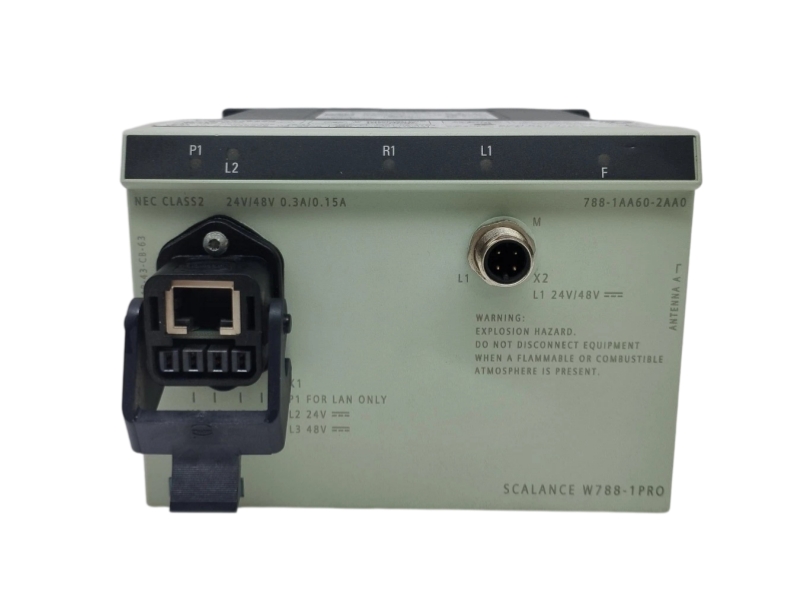

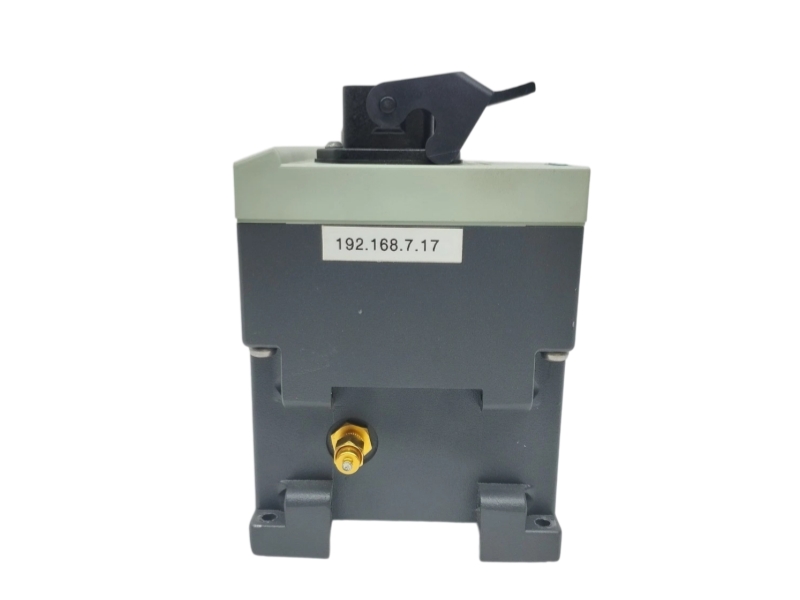

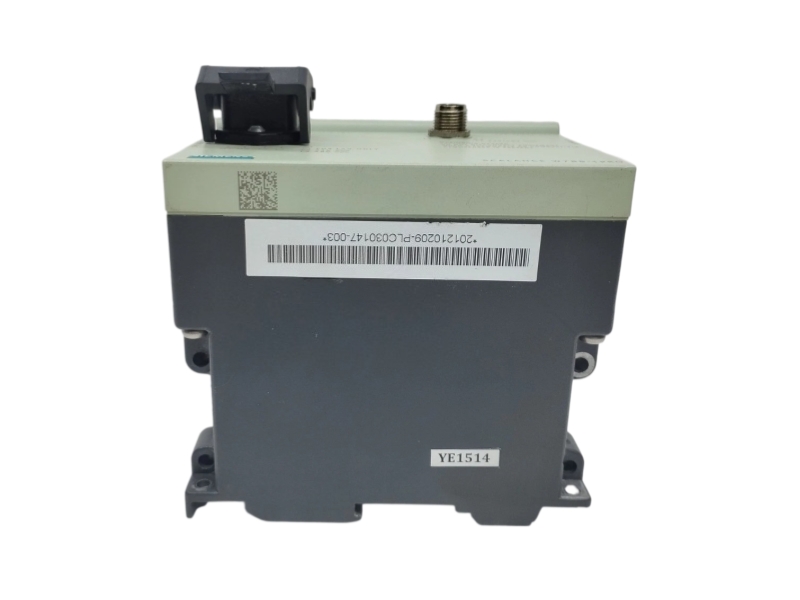

Siemens 6GK5788-1AA60-2AA0 is the SCALANCE W788-1PRO industrial wireless LAN access point for use outside the USA. Siemens specifies one radio interface, IEEE 802.11b/g/a/h operation in the 2.4 and 5 GHz bands, data rates up to 54 Mbit/s, WPA2, IEEE 802.11i and IEEE 802.11e support, Power over Ethernet and IP65 protection. The documented operating range is -20 to +60 °C and the product is suitable for EN 50155 applications. Procurement should verify country variant, radio rules, antennas, connectors, firmware, PoE arrangement and network configuration. Siemens lists the article as PM500 with lifecycle end on 2024-10-01.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM500: Discontinued Product or end of PLM & Support |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5788-1AA60-2AA0 |
| Product Type | Industrial wireless LAN access point |
| Product Designation | SCALANCE W788-1PRO |
| Country Variant | For use outside the USA |
| Radio Interfaces | 1 |
| Wireless Standards | IEEE 802.11b/g/a/h |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Data Rate | 54 Mbit/s |
| Wireless Security and QoS | WPA2, IEEE 802.11i and IEEE 802.11e |
| Power Supply Feature | Power over Ethernet |
| Degree of Protection | IP65 |
| Operating Temperature | -20 to +60 °C |
| Railway Standard | EN 50155 |
| Official Lifecycle | PM500: Discontinued Product or end of PLM & Support |
| Lifecycle End Date | 2024-10-01 |
| Net Weight | 1.050 kg |
| Country of Origin | GERMANY |
| Industrial Wireless Access | Provides IWLAN connectivity in plant, machine and transport-oriented environments. |
|---|---|
| Dual-Band Operation | Supports documented 2.4 and 5 GHz radio operation with one radio interface. |
| Rugged Installation | IP65 protection and EN 50155 suitability support demanding installed environments. |
| Maintenance Replacement | Replacement requires review of regional radio variant, antennas, firmware, PoE and configuration. |
| 01 · Complete Identity | Match every character in 6GK5788-1AA60-2AA0 and confirm the non-USA country variant. |
|---|---|
| 02 · Radio Configuration | Verify frequency band, channel plan, regulatory domain, SSID and security settings. |
| 03 · Antennas and Connectors | Confirm antenna type, R-SMA connections, mounting position and cable arrangement. |
| 04 · Power and Network | Check PoE source, Ethernet wiring, addressing and management configuration. |
| 05 · Firmware and Backup | Record firmware version and preserve available device configuration before replacement. |
| 06 · Inspection Evidence | Request readable label, antenna-port, Ethernet, enclosure, accessory and packaging photos. |
Siemens Industry Mall lists 6GK5788-1AA60-2AA0 as PM500: Discontinued Product or end of PLM & Support, with end of lifecycle since 2024-10-01. The unit is listed as a spare part.
It identifies the SCALANCE W788-1PRO industrial wireless LAN access point for use outside the USA.
Siemens specifies 2.4 and 5 GHz operation with IEEE 802.11b/g/a/h.
The official product description specifies IP65 protection and an operating range of -20 to +60 °C.
Yes. Siemens lists PM500: Discontinued Product or end of PLM & Support, with lifecycle end on 2024-10-01.
Verify the country variant, antennas, R-SMA ports, firmware, PoE, radio settings and product label.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS INDUSTRIAL NETWORK PROCUREMENT SUPPORT
Model verification, radio-configuration compatibility review, inspection evidence, protective handling and international shipment coordination.
Complete suffix, lifecycle wording, firmware and requested network configuration are reviewed before order handling.
Label, hardware revision, configuration evidence, interfaces and visible condition are aligned with the request.
Enclosure, terminals and communication interfaces are protected before documented shipment coordination.
| 01 | Model and suffix verification | The complete order code is checked character by character against available labels and documentation. |
|---|---|---|
| 02 | Condition confirmation | Visible condition, enclosure, interfaces, terminals and supplied accessories are reviewed. |
| 03 | Technical compatibility review | Firmware, hardware revision, interfaces, topology and application requirements are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging photos can be requested before approval. |
| 05 | Protective packaging | The enclosure, terminals and communication interfaces are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review of the agreed terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, configuration and installation evidence. |
Check whether the supplier verifies the complete suffix, provides readable label and condition photos, records warranty terms, discusses compatibility limits and supplies traceable shipment documents.
Risks include blurred or missing labels, substituted suffixes, unsupported technical claims, unclear return terms, refusal to provide inspection evidence and payment requests that do not match the supplier identity.
