10.4-inch STN color operator panel for installed machine visualization systems

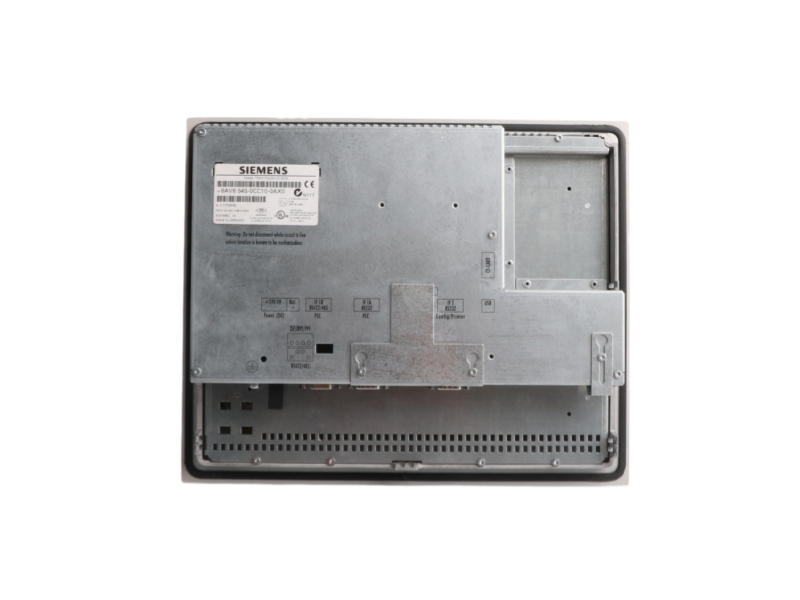

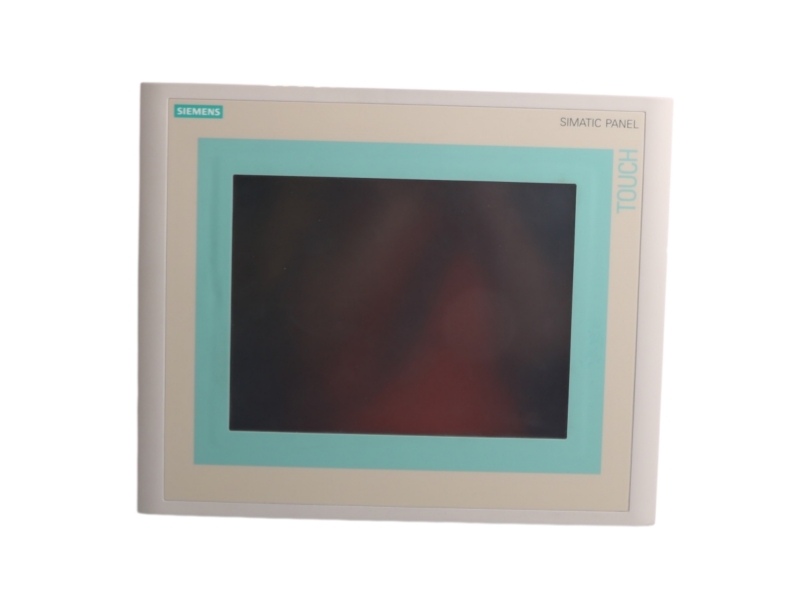

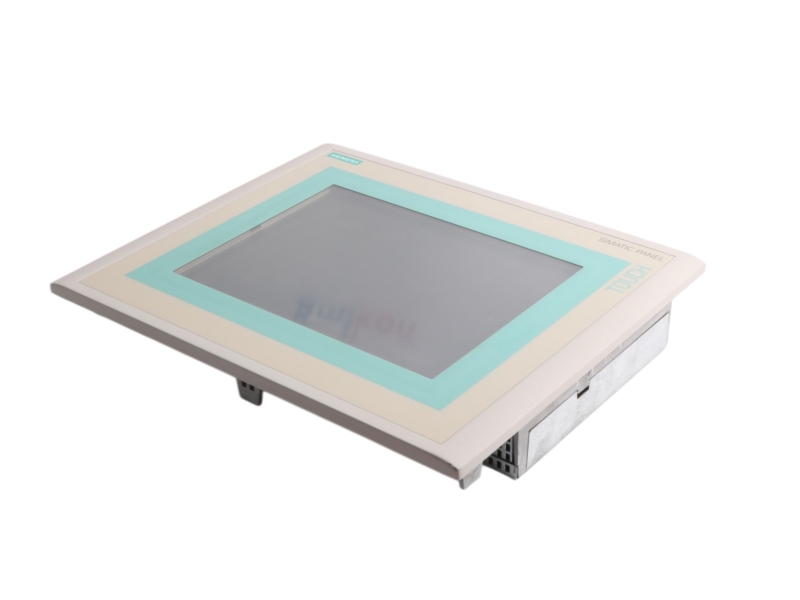

Siemens 6AV6545-0CC10-0AX0 is a SIMATIC TP 270 touch panel for machine visualization and operator control. Siemens identifies it as a 10-inch TP 270 fitted with a 10.4-inch STN color display and 2 MB of configuration memory. The official description states that it is configurable with ProTool from version V6.0. This spare part is intended for maintenance of installed HMI systems. Before replacement, verify the complete order number, panel cutout, mounting hardware, label data, connected interfaces, supply requirements and the availability of the original ProTool project. Siemens lists the product at the end of its lifecycle without a replacement product.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | End Product Lifecycle |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV6545-0CC10-0AX0 |
| Product Type | SIMATIC TP 270 touch panel |
| Series | SIMATIC HMI TP 270 |
| Display | 10.4-inch STN color display |
| Configuration Memory | 2 MB |
| Engineering Software | ProTool from version V6.0 |
| Packaging Dimensions | 61.00 × 41.00 × 18.00 cm |
| Net Weight | 5.26 kg |
| Official Lifecycle | End Product Lifecycle |
| Country of Origin | GERMANY |
| Use Area | Procurement Relevance |
|---|---|
| Machine visualization | Supports maintenance of installed TP 270 operator stations. |
| Touch operator control | Verify the front-panel condition, cutout and mounting hardware. |
| ProTool-based HMI maintenance | Confirm the engineering version and preserve the original project backup. |
| Installed-base replacement | Match the full suffix, connectors, supply data and hardware revision. |
Siemens SiePortal lists 6AV6545-0CC10-0AX0 as End Product Lifecycle and states that the product is cancelled without a replacement product. Procurement should preserve the original ProTool project and verify the installed panel, connectors and mechanical cutout before replacement.
It identifies the Siemens SIMATIC TP 270 10-inch touch-panel variant covered by the official product record.
Siemens specifies a 10.4-inch STN color display for this complete order number.
The official description lists 2 MB of configuration memory.
The product is configurable with ProTool from version V6.0 according to Siemens.
Siemens lists the product as End Product Lifecycle and states that it is cancelled without a replacement product.
Do not assume interchangeability. Compare the full suffix, cutout, connectors, supply data, hardware revision and original ProTool project before replacement.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6AV6545-0CC10-0AX0.
| Stage | What We Check | Buyer Input |
|---|---|---|
| 1. Order-code review | Brand, complete part number and suffix | Installed label photos |
| 2. Technical review | Cutout, mounting, connectors and project requirements | Panel details and ProTool project information |
| 3. Physical inspection | Housing, display, labels and included hardware | Requested photo angles |
| 4. Dispatch preparation | Protective packing, documents and tracking | Destination and consignee requirements |
For this TP 270, the buyer should provide the panel cutout, mounting details, label supply data, connector information, ProTool version and available HMI project backup.
Look for complete order-code verification, clear condition statements, traceable product and label photos, written warranty terms, a defined return authorization process and technical claims tied to the exact model.
Altered labels, unclear suffixes, reused photos, unverified compatibility, missing return terms and pressure around delivery or payment are common risk signals.
Compare the full suffix, mechanical cutout, connectors, supply data, engineering software, available project backup and hardware revision before accepting any alternative.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
