IP65/67 managed IRT switch with push-pull copper and optical connections

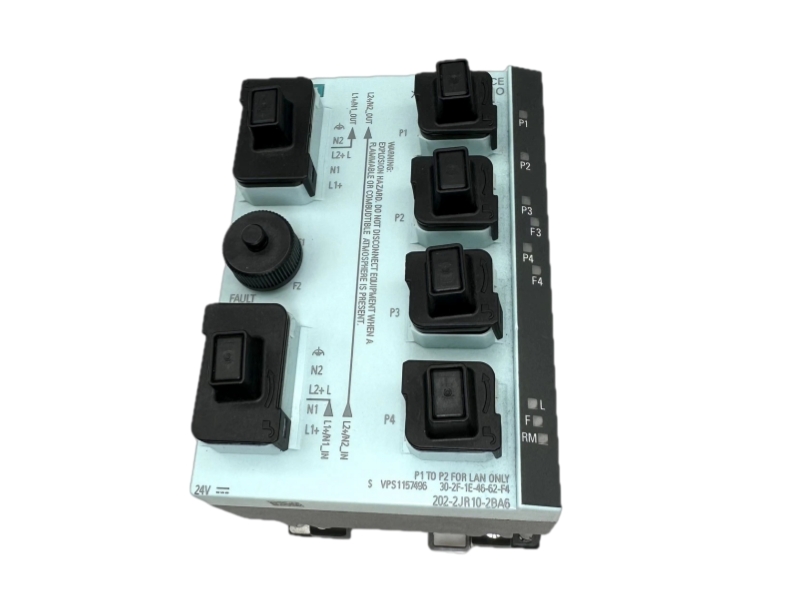

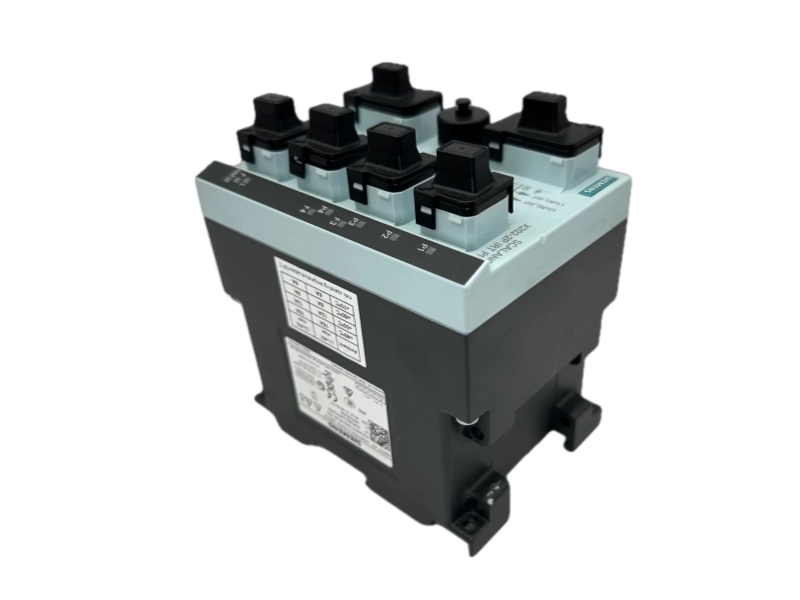

Siemens 6GK5202-2JR10-2BA6 is a SCALANCE X202-2P IRT PRO managed Industrial Ethernet switch for PROFINET networks in demanding machine environments. Its IP65/67 enclosure supports decentralized installation, while two 10/100 Mbps push-pull RJ45 ports and two 100 Mbps push-pull SCRJ ports provide copper and optical connectivity. Siemens identifies it as a PROFINET IO device with network management and an integrated Redundancy Manager. An optional C-PLUG can support configuration handling. Before procurement, verify the complete suffix, connector format, enclosure requirements, power arrangement, network topology, firmware and project configuration.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5202-2JR10-2BA6 |
| Product Type | SCALANCE X202-2P IRT PRO managed IE IRT switch |
| Series | SCALANCE X-200 IRT |
| Degree of Protection | IP65/67 |
| Copper Ports | 2 × 10/100 Mbps push-pull RJ45 |
| Optical Ports | 2 × 100 Mbps push-pull SCRJ |
| Network Role | PROFINET IO device |
| Management | Network management with integrated Redundancy Manager |

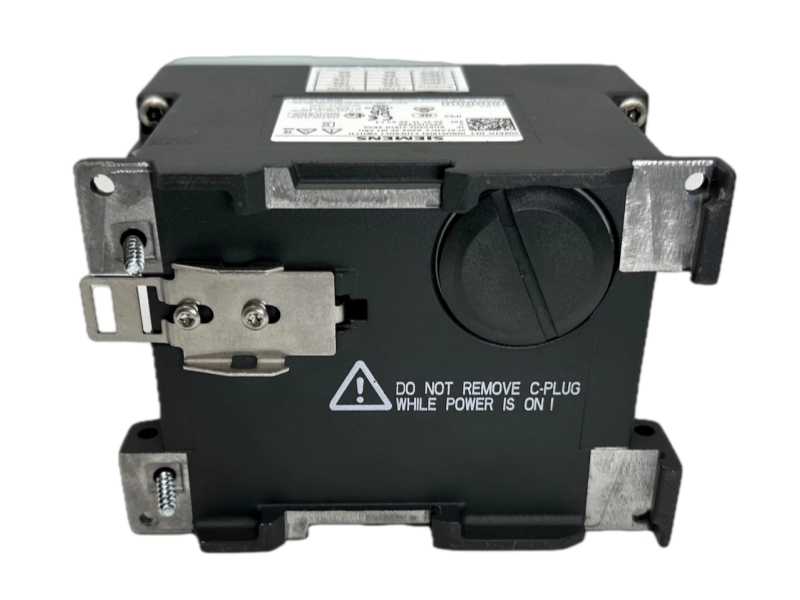

| Configuration Storage | C-PLUG optional |
| Packaging Dimensions | 73.00 × 75.00 × 125.00 mm |
| Net Weight | 1.225 kg |
| Official Lifecycle | Active Product |
| Country of Origin | GERMANY |
| Use Area | Procurement Relevance |
|---|---|
| PROFINET IRT machine networks | Managed real-time switching for installed automation cells. |
| IP65/67 field installation | Decentralized network placement where enclosure protection is required. |
| Copper-to-optical connectivity | Connects push-pull RJ45 and SCRJ network segments. |
| Redundant industrial Ethernet | Integrated Redundancy Manager supports planned resilient topologies. |
Siemens SiePortal lists 6GK5202-2JR10-2BA6 as an Active Product. Procurement should still verify firmware, connector coding, C-PLUG handling and the existing PROFINET project before installation.
It identifies the SCALANCE X202-2P IRT PRO managed switch with push-pull copper and optical ports.
Siemens specifies two 10/100 Mbps push-pull RJ45 ports and two 100 Mbps push-pull SCRJ ports.
The official product description specifies degree of protection IP65/67.
It is a PROFINET IO device with network management and an integrated Redundancy Manager.
Siemens SiePortal lists this complete order number as Active Product.
Check the full suffix, port types, power connections, firmware, C-PLUG data, topology and label photos.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6GK5202-2JR10-2BA6.
| Stage | What We Check | Buyer Input |
|---|---|---|
| 1. Order-code review | Brand, complete part number and suffix | Installed label photos |
| 2. Technical review | Hardware, connections and project requirements | Installed-system details |
| 3. Physical inspection | Housing, labels, interfaces and included hardware | Requested photo angles |
| 4. Dispatch preparation | Protective packing, documents and tracking | Destination and consignee requirements |
For this SCALANCE switch, provide the installed topology, push-pull connector details, power arrangement, firmware, C-PLUG information and clear port and label photos.
Look for complete order-code verification, clear condition statements, traceable product and label photos, written warranty terms, a defined return authorization process and technical claims tied to the exact model.
Altered labels, unclear suffixes, reused photos, unverified compatibility, missing return terms and pressure around delivery or payment are common risk signals.
Compare the full suffix, hardware configuration, connectors, supply data, engineering software, project requirements and revision before accepting any alternative.
