Dual-radio industrial wireless access for outdoor networks, with Gigabit RJ45, PoE and six external antenna connections.

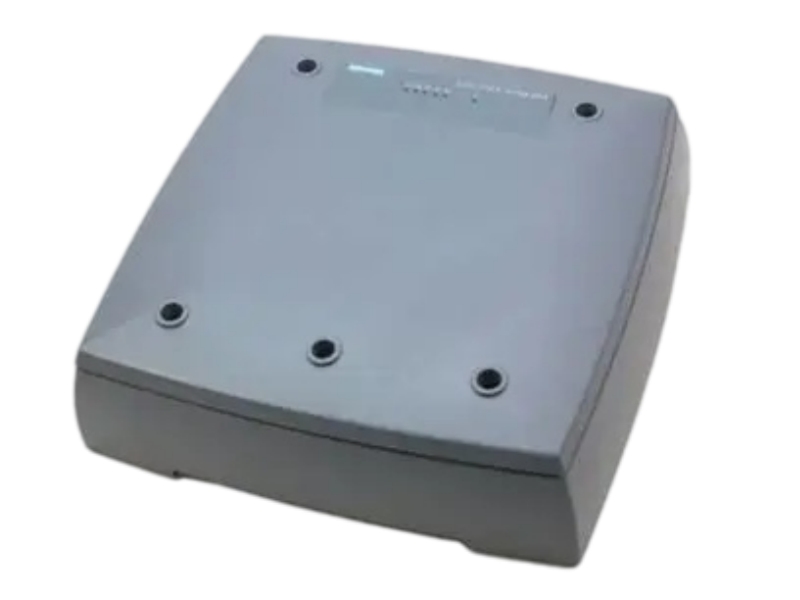

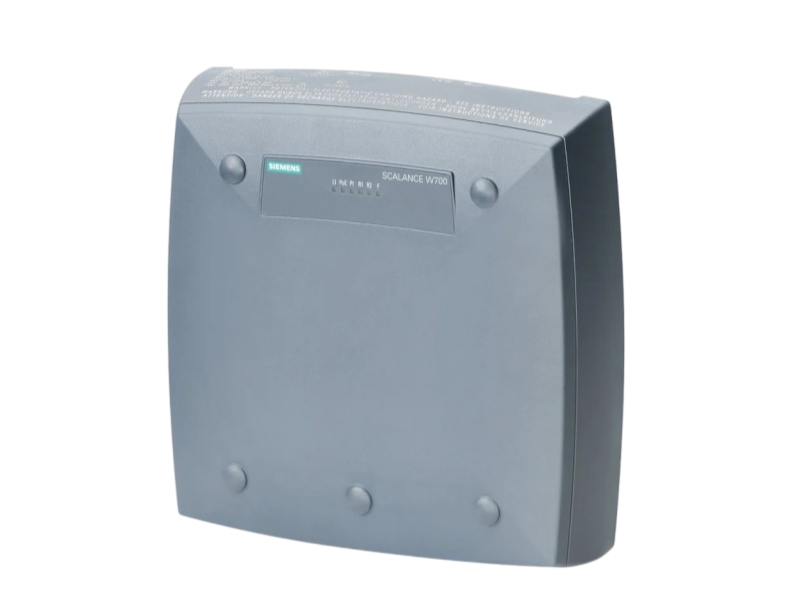

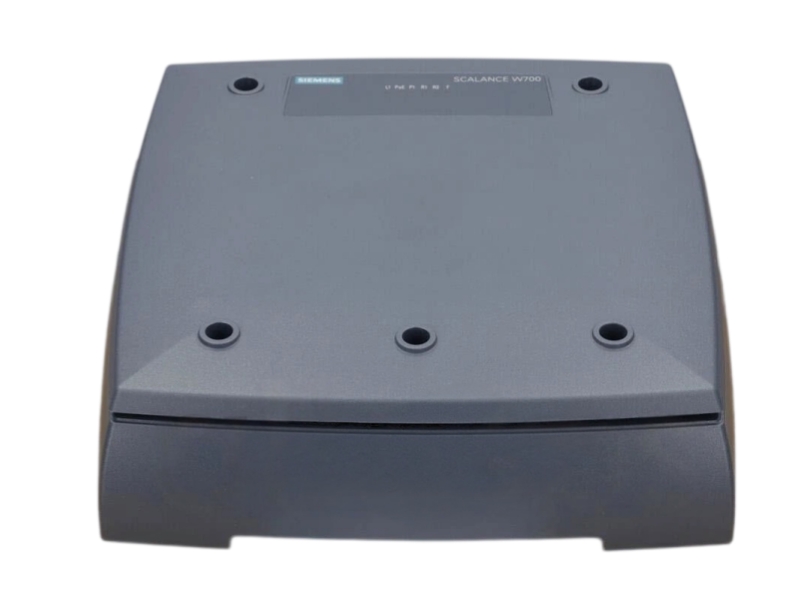

Siemens 6GK5786-2FC00-0AA0 is a SCALANCE W786-2 RJ45 industrial wireless LAN access point designed for outdoor installations and demanding industrial communication networks. The unit integrates two radio modules, six R-SMA antenna sockets, one Gigabit-capable RJ45 interface, Power over Ethernet and redundant 24 V DC supply connections. It supports IEEE 802.11a/b/g/h/n operation in 2.4 GHz and 5 GHz bands, with up to 450 Mbit/s gross data rate per radio. Before replacement or expansion, buyers should verify the complete suffix, national approval region, antenna arrangement, firmware, power method, mounting hardware, network security configuration and readable product-label photographs.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM400: Announcement of product phase-out; product phase-out since 01 May 2022 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK5786-2FC00-0AA0 |
| Product Type | SCALANCE W786-2 RJ45 IWLAN access point |
| Product Family | SCALANCE W786 RJ45 for outdoor use |
| Radio Interfaces | 2 permanently installed radio cards; 3 × 3 MIMO; 3 spatial streams |
| Wireless Standards | IEEE 802.11a/b/g/h/n; 2.4 GHz and 5 GHz |
| Maximum WLAN Rate | 450 Mbit/s gross per radio |
| Industrial Ethernet | 1 × RJ45 socket, up to 1 Gbit/s |
| External Antenna Connections | 6 × R-SMA sockets |
| Power Supply | PoE or redundant 24 V DC terminal connections; optional PS791-2AC supply |
| Operating Temperature | -40 °C to +60 °C |
| Protection Rating | IP65 |
| Dimensions | 251 × 251 × 72 mm enclosure without antenna |
| Mounting | Wall mounting; rail and mast mounting with additional support plate |
| Security Functions | IEEE 802.1X, IEEE 802.11i, WPA/WPA2, TKIP/AES, SSH and RADIUS |
| Successor Listed by Siemens | 6GK5763-1AL00-7DA0 |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| Outdoor industrial WLAN coverage | Confirm national approvals, antenna selection, weather exposure and mounting hardware. |
| Dual-radio plant communication | Review channel planning, frequency bands, roaming design and firmware compatibility. |
| Wireless bridge or access point service | Verify operating mode, iFeatures licensing through KEY-PLUG and network configuration. |
| Maintenance replacement | Do not assume the listed successor is a drop-in replacement; check ports, antennas, power, enclosure and project settings. |
Siemens identifies this exact order code as PM400: Announcement of product phase-out, with product phase-out effective since 01 May 2022. Siemens lists 6GK5763-1AL00-7DA0 as a successor. The successor must not be treated as a direct replacement without checking radio architecture, interfaces, antenna connections, supply method, enclosure, approvals, firmware and project configuration.
It identifies the Siemens SCALANCE W786-2 RJ45 outdoor IWLAN access point variant for operation outside the USA and Israel.
Official data confirms two radio cards and six R-SMA sockets for external antennas.
Check Power over Ethernet or redundant 24 V DC supply requirements, including terminals and any optional power-supply adapter.
Siemens states PM400: Announcement of product phase-out, effective since 01 May 2022. This wording is retained and is not replaced with Discontinued.
No. Review interfaces, antennas, power, enclosure, approvals, firmware and network configuration before replacement.
Availability of product, label, connector and packaging photographs can be checked for the requested quantity before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured verification, inspection coordination, protective handling and worldwide logistics for Siemens SCALANCE equipment.
| Checkpoint | What We Review |
|---|---|
| Model and suffix verification | The complete 6GK5786-2FC00-0AA0 code, approval region and requested quantity. |
| Condition confirmation | Housing, seals, port covers, terminal block, antenna sockets and packaging evidence. |
| Technical compatibility review | Radio plan, interfaces, power method, firmware, KEY-PLUG requirements, mounting and national approvals. |
| Product and label photo confirmation | Readable order-code, certification, connector and packaging images when available. |
The enclosure, antenna ports and terminal areas are protected against impact, moisture and uncontrolled movement.
Shipping options are coordinated after destination, quantity, packaging and documentation needs are reviewed.
Tracking details are shared after carrier acceptance for traceable logistics follow-up.
Commercial documents are prepared according to the confirmed destination and transaction scope.
Our workflow connects model review, label verification, visual inspection, packaging checks, logistics coordination and document preparation in one procurement record. Written warranty terms are supplied with the confirmed transaction. Any return must follow the return authorization process before goods are sent back. After-sales response is coordinated through the same sales channel using the order code, shipment details, photographs and a clear issue description.
Look for exact model and suffix verification, readable label evidence, clear condition terms, compatibility questions, written warranty terms and traceable communication.
Request the complete order code, quantity, condition statement, inspection photographs when available, packaging plan, shipping options, documentation scope and return terms.
Check radio count, antenna interfaces, Ethernet port, power method, firmware, KEY-PLUG functions, mounting, approvals and saved network configuration.
Risk signals include altered suffixes, unreadable labels, copied data from a different model, unsupported compatibility claims, missing return terms and unverified delivery promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
