SCALANCE XB-200 MANAGED INDUSTRIAL ETHERNET
Managed Layer 2 switching with thirteen copper ports, three multimode SC fiber ports and redundant 24 V DC power.

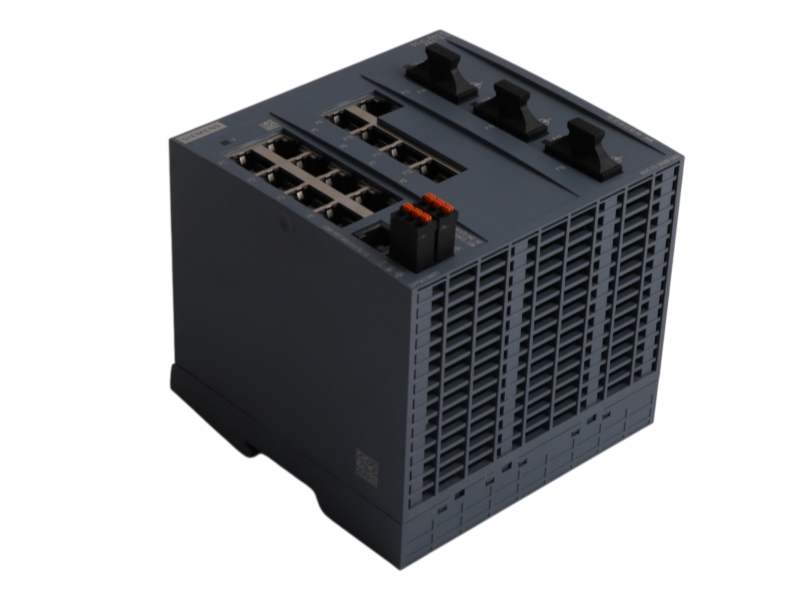

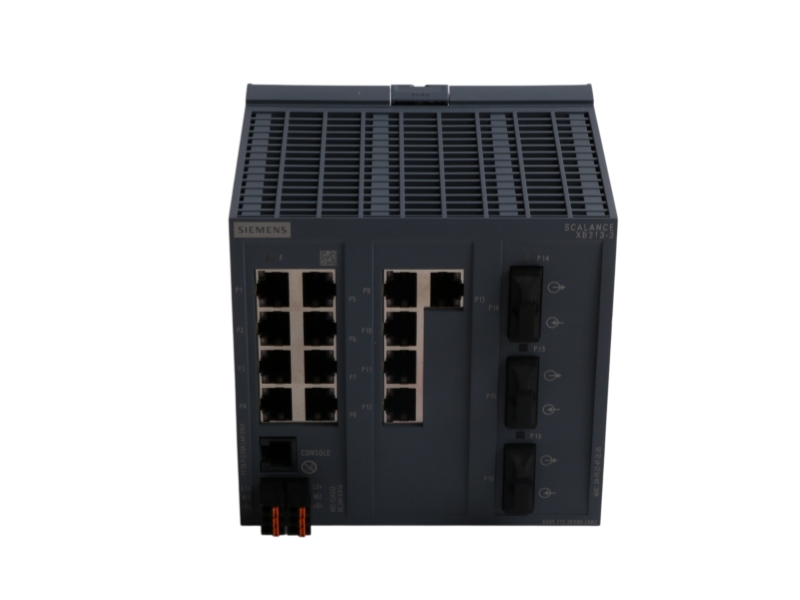

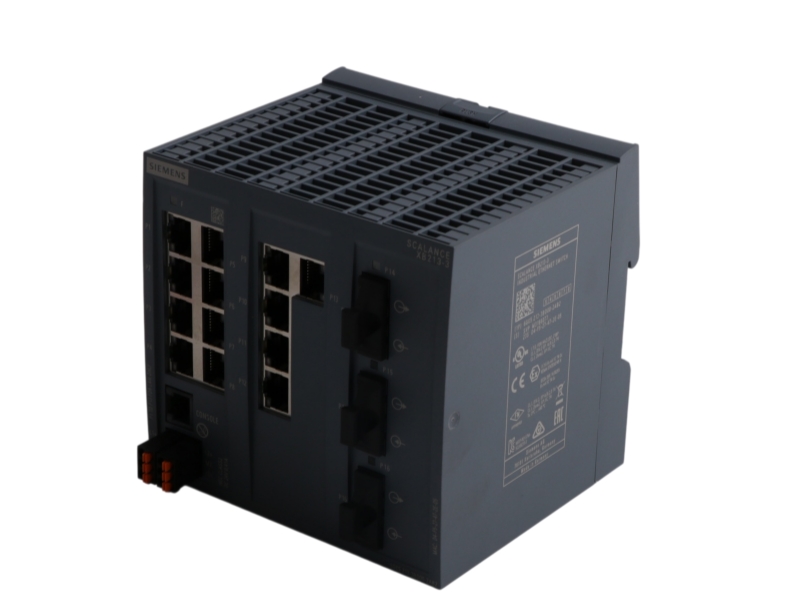

The Siemens 6GK5213-3BD00-2AB2 is a SCALANCE XB213-3 managed Layer 2 Industrial Ethernet switch for compact control-cabinet networks. It combines thirteen 10/100 Mbit/s RJ45 ports with three 100 Mbit/s multimode fiber SC ports, a console connection, diagnostic LEDs and redundant 24 V DC supply capability. The PROFINET-default device supports managed network functions, including diagnostics, VLANs and ring redundancy, and mounts on a 35 mm DIN rail. Procurement and replacement review should confirm the complete suffix, SC fiber interface, PROFINET configuration, firmware level, power terminal arrangement, network project settings and product label before installation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5213-3BD00-2AB2 |
| Product Type | Managed Layer 2 Industrial Ethernet switch |
| Series | SCALANCE XB-200 |
| Product Designation | SCALANCE XB213-3 |
| Copper Ports | 13 x RJ45, 10/100 Mbit/s |
| Fiber Ports | 3 x multimode fiber SC, 100 Mbit/s |
| Console Port | 1 x RJ11 |
| Default Industrial Protocol | PROFINET |
| PROFINET Conformance Class | Class B |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 to 28.8 V DC |
| Redundant Supply Connection | Yes |
| Maximum Current Consumption | 0.41 A |
| Rated Power Loss | 9.8 W |
| Power Connector | 6-pole terminal block |
| Diagnostics | Diagnostic LEDs, port diagnostics, error statistics and SysLog |
| Management | CLI, web-based management, SNMP v1/v2/v3 and STEP 7 configuration |
| Protection Class | IP20 |
| Operating Temperature | 0 to +60 C |
| Dimensions | 120 x 117 x 109 mm (W x H x D) |
| Net Weight | 0.5 kg |
| Enclosure Material | Polycarbonate PC-GF10 |
| Mounting | 35 mm DIN rail |
| Security Certification | IEC 62443-4-2 certified |
| Country of Origin | GERMANY |
| Control-Cabinet Networks | Managed Industrial Ethernet distribution for machines, production cells and compact automation cabinets. |
|---|---|
| Copper and Fiber Links | Connects 10/100 Mbit/s copper devices and multimode fiber segments using SC interfaces. |
| PROFINET Integration | Supports PROFINET diagnostics and STEP 7 configuration; project settings must match the installed network. |
| Maintenance Replacement | Replacement requires verification of suffix, fiber connector type, firmware, configuration backup and power wiring. |
| 01 · Complete Identity | Match every character in 6GK5213-3BD00-2AB2 with the installed switch and product label. |
|---|---|
| 02 · Port Configuration | Confirm thirteen RJ45 ports, three multimode SC ports and the required console connection. |
| 03 · Power | Check 24 V DC supply, redundant feed arrangement, terminal block and cabinet protection. |
| 04 · Network Project | Review PROFINET device name, IP settings, VLANs, ring redundancy and saved configuration. |
| 05 · Firmware and Security | Confirm hardware and firmware versions, engineering compatibility and site cybersecurity requirements. |
| 06 · Installation Evidence | Review label, port face, fiber interfaces, terminal block, accessories and packaging photos. |
Siemens Industry Mall lists 6GK5213-3BD00-2AB2 as PM300: Active Product. Procurement should still confirm the current regional ordering position and required firmware at the time of purchase.
It identifies the PROFINET-default SCALANCE XB213-3 with thirteen RJ45 ports and three multimode SC fiber ports.
Verify 24 V DC supply, 19.2 to 28.8 V range, redundant feed wiring and the 6-pole terminal block.
Check the complete suffix, SC interfaces, firmware, network project, power wiring and DIN-rail installation.
No. Siemens Industry Mall lists this order number as PM300: Active Product.
Switch front, ports, label, terminal block, accessories and packaging photos can be requested before approval.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT SUPPORT
Structured verification, inspection, packaging and international shipment coordination for automation spares and managed industrial switches.
Part number, suffix, firmware evidence and visible condition are checked before order handling.
Label details and compatibility evidence are aligned with the requested configuration.
Protective packing, shipment records and logistics documents are prepared as one controlled route.
| 01 | Model and suffix verification | The requested code is checked character by character against labels and available documentation. |
|---|---|---|
| 02 | Condition confirmation | Visible condition, packaging and supplied accessories are reviewed through photos or inspection records. |
| 03 | Technical compatibility review | Interfaces, firmware, connectors, power and project requirements are compared before replacement decisions. |
| 04 | Product and label photo confirmation | Readable product, nameplate, port and packaging images can be requested before approval. |
| 05 | Protective packaging | Sensitive ports, terminals and enclosures are protected for handling and international transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared according to the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in the Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review of the agreed terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label and installation evidence. |
Check whether the supplier verifies the complete suffix, provides readable label and condition photos, records warranty terms, discusses compatibility limits and supplies traceable shipment documents.
Risks include blurred or missing labels, substituted suffixes, unsupported technical claims, refusal to provide inspection evidence, unclear return terms and payment requests that do not match the supplier identity.
