SCALANCE W · DUAL-BAND INDUSTRIAL WLAN CLIENT
An industrial wireless client with one radio, dual RJ45 Ethernet ports, external antenna connections and optional KEY-PLUG iFeatures.
Siemens 6GK5734-1FX00-0AA0 is a SCALANCE W734-1 RJ45 IWLAN client for 2.4 GHz and 5 GHz networks. It provides one radio, two R-SMA antenna sockets and an integrated two-port RJ45 switch.
The module supports IEEE 802.11a/b/g/h/n with up to 300 Mbit/s gross WLAN rate. Power can be provided through redundant 24 V DC terminals or integrated Power over Ethernet.
| Record | Manufacturer-Verified Position |
|---|---|
| Complete order number | 6GK5734-1FX00-0AA0 |
| Lifecycle | PM300: Active Product |
| Product family | SCALANCE W734 RJ45 for the control cabinet |
| Official evidence | Siemens Industry Mall and technical data sheet for the complete order number |
| Parameter | Verified Detail |
|---|---|
| Product designation | SCALANCE W734-1 RJ45 IWLAN client |
| Wireless role | Client mode |
| WLAN standards | IEEE 802.11a/b/g/h/n |
| Frequency bands | 2.4 GHz and 5 GHz |
| Gross WLAN data rate | Maximum 300 Mbit/s |
| Industrial Ethernet | 2 × RJ45, maximum 100 Mbit/s |
| External antenna connections | 2 × R-SMA sockets |
| Power supply | Redundant 24 V DC terminal input or 48 V PoE |
| Power loss | 6 W |
| Protection class | IP30 |
| Operating temperature | -20 to +60 °C |
| Dimensions | 26 × 156 × 127 mm |
| Net weight | 0.52 kg |

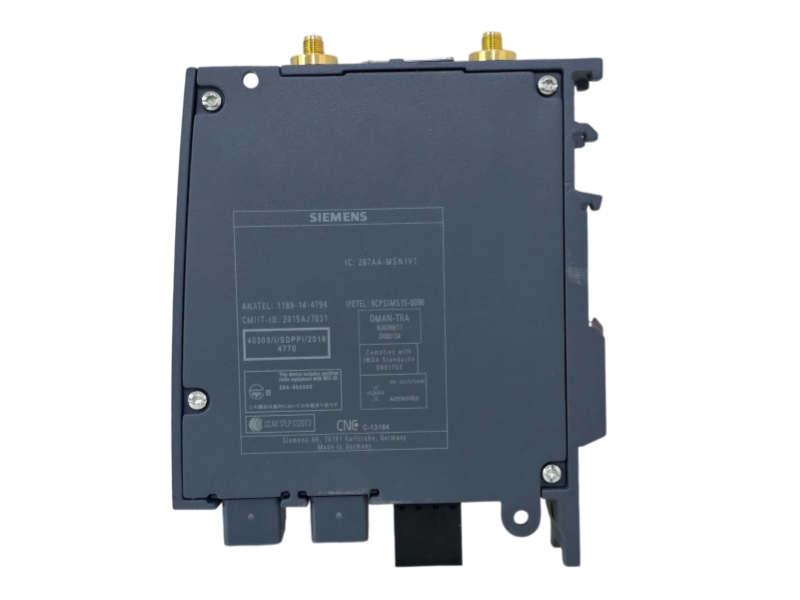

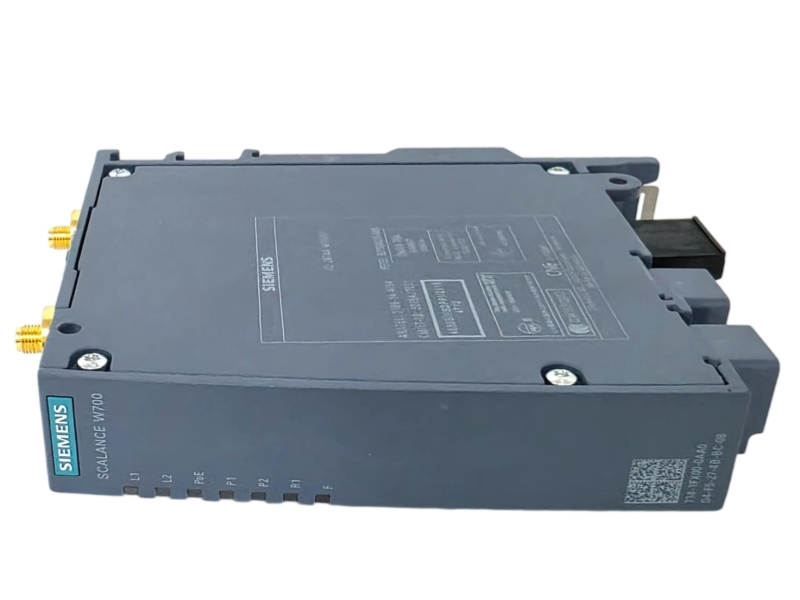

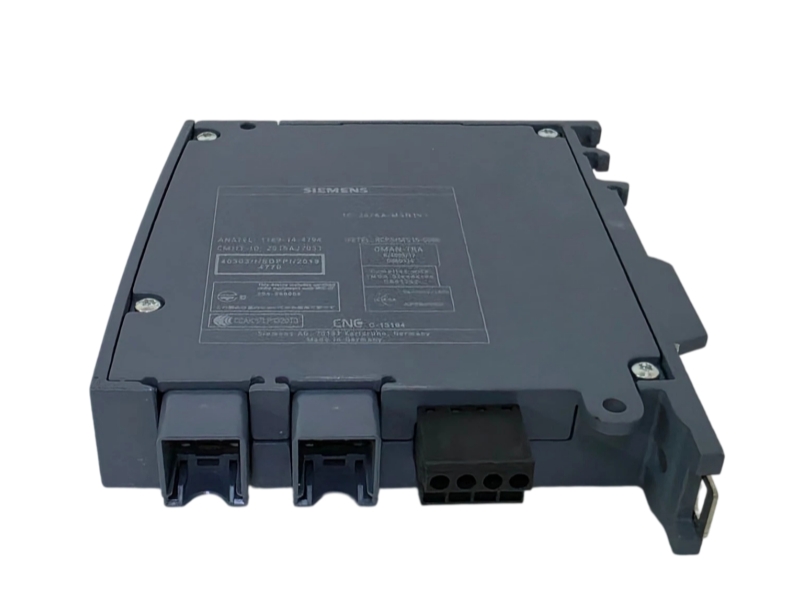

Use current photos of the label, RJ45 ports, R-SMA connectors and power terminal to confirm the exact wireless variant.
Connects Ethernet-capable automation devices to a configured industrial WLAN infrastructure in client mode.
Provides two RJ45 ports through an integrated switch for local wired device integration at up to 100 Mbit/s.
Supports compact rail or wall installation with external antennas selected for the site radio design and approvals.
Match the complete order number 6GK5734-1FX00-0AA0 and the W734-1 RJ45 device label.
Confirm the approved 2.4 GHz or 5 GHz channel plan, country approval and required external antennas.
Review the WLAN security profile, SSID, client-mode configuration and any required KEY-PLUG iFeatures.
Verify 24 V DC or PoE power, cabinet mounting clearance and the two connected Ethernet devices.
Siemens Industry Mall lists the complete order number 6GK5734-1FX00-0AA0 as PM300: Active Product.
It is a SCALANCE W734-1 RJ45 industrial WLAN client with one radio and an integrated two-port Ethernet switch.
Siemens documents IEEE 802.11a/b/g/h/n operation in the 2.4 GHz and 5 GHz bands, subject to national approvals.
Siemens Industry Mall lists the complete order number as PM300: Active Product.
Check country approvals, antennas, WLAN security, SSID, frequency plan, power method and optional KEY-PLUG functions.
Send the label, antenna plan and WLAN configuration for availability and compatibility review.
