SINAMICS S120 · MULTI-AXIS CONTROL VIA PROFINET
A CU320-2 PN control unit for open-loop and closed-loop coordination of SINAMICS S120 Line and Motor Modules.
Siemens 6SL3040-1MA01-0AA0 is a CU320-2 PN Control Unit for multi-axis SINAMICS S120 systems. It communicates with higher-level control through a two-port PROFINET interface using the PROFIdrive V4 profile.
The unit is supplied without a CompactFlash card. Siemens requires a CompactFlash card with firmware V4.4 or higher, and commissioning is performed with SINAMICS Startdrive, STARTER or an AOP30 panel.
| Record | Manufacturer-Verified Position |
|---|---|
| Complete order number | 6SL3040-1MA01-0AA0 |
| Lifecycle | PM300: Active Product |
| Product family | CU320-2 Control Unit |
| Official evidence | Siemens Industry Mall and SiePortal records for the complete order number |
| Parameter | Verified Detail |
|---|---|
| Product designation | SINAMICS CU320-2 PN Control Unit without CompactFlash card |
| Primary role | Multi-axis open-loop and closed-loop drive control |
| PROFINET | Two RJ45 ports with PROFIdrive V4 profile |
| DRIVE-CLiQ interfaces | 4 sockets |
| Digital inputs | 12 isolated inputs |
| Bidirectional digital I/O | 8 non-isolated inputs/outputs |
| Electronics supply | 24 V DC; maximum 1 A excluding connected loads |
| CompactFlash requirement | Firmware V4.4 or higher |
| Commissioning tools | SINAMICS Startdrive, STARTER or AOP30 |
| Power loss | 24 W |
| Dimensions | 50 × 300 × 226 mm |
| Approximate weight | 2.3 kg |
| Country of origin | Germany |

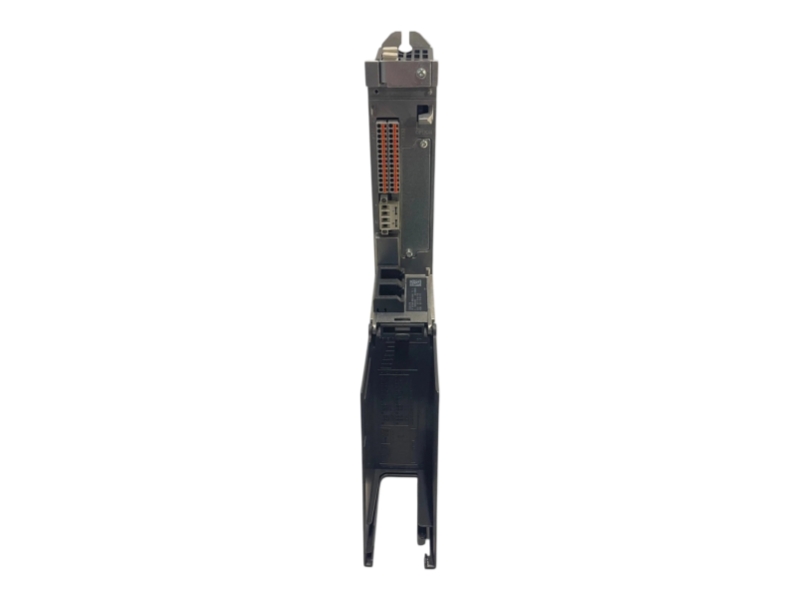

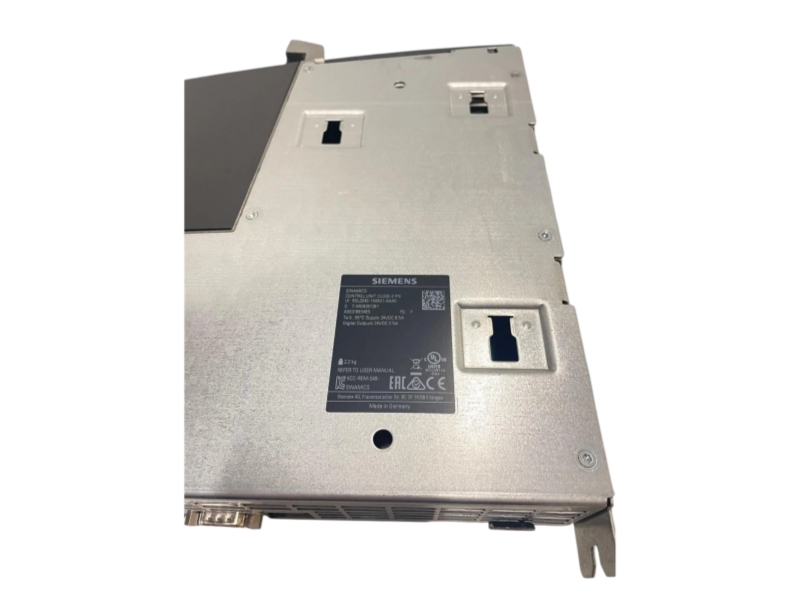

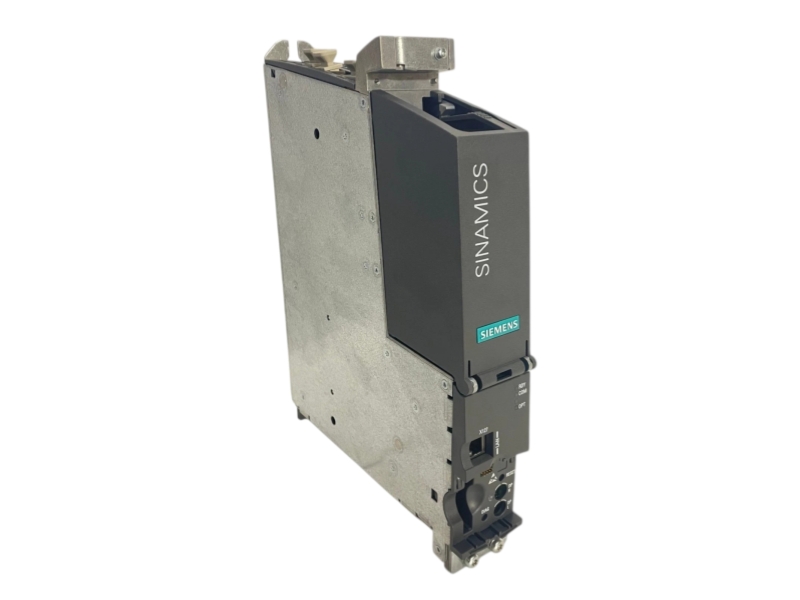

Use current photos of the front label, PROFINET ports, DRIVE-CLiQ connectors and option-slot area to confirm the hardware.
Coordinates communication and control functions for connected SINAMICS S120 Line and Motor Modules.
Links the drive system to the higher-level controller through the two-port PROFINET interface and PROFIdrive V4.
Connects DRIVE-CLiQ modules and sensors through four integrated sockets for system-specific drive topologies.
Match the complete order number 6SL3040-1MA01-0AA0 and CU320-2 PN hardware revision.
Confirm the CompactFlash card contains compatible firmware V4.4 or higher and the correct project parameters.
Review the PROFINET device name, IP configuration, PROFIdrive telegrams and higher-level controller project.
Check the connected Line Modules, Motor Modules, DRIVE-CLiQ topology and required option-slot hardware.
Siemens Industry Mall lists the complete order number 6SL3040-1MA01-0AA0 as PM300: Active Product.
It is a SINAMICS S120 CU320-2 PN Control Unit for multi-axis drive control through PROFINET and DRIVE-CLiQ.
No. Siemens identifies this order number as supplied without a CompactFlash card.
Siemens states that CU320-2 PN operation requires a CompactFlash card with firmware V4.4 or higher.
Check the CompactFlash firmware, PROFINET configuration, DRIVE-CLiQ topology, connected modules and saved drive project.
Send the nameplate, CompactFlash version and SINAMICS topology for availability and compatibility review.
