Siemens 6SL3120-1TE13-0AD0 is a SINAMICS S120 Single Motor Module in booksize D-type format. The official product description specifies a DC 600 V input class, 3-phase 400 V output, 3 A rated output current, internal air cooling, optimized pulse patterns and support for extended Safety Integrated functions.
The module is supplied with a DRIVE-CLiQ cable T1 and is intended for coordinated use inside a properly engineered SINAMICS S120 drive line-up. DC-link arrangement, motor data, control unit, firmware and safety commissioning must be verified as a system.
| Item | Verified Position |
|---|---|
| Exact order number | 6SL3120-1TE13-0AD0 |
| Lifecycle | PM300: Active Product |
| Evidence | Confirmed for the complete order number in Siemens SiePortal |
| Parameter | Verified Detail |
|---|---|
| Product family | SINAMICS S120 Single Motor Modules in booksize format |
| DC-link voltage | DC 510 to 720 V |
| Output voltage class | 3-phase AC 400 V |
| Rated output current | 3.0 A |
| Motor power rating | 1.6 kW based on IN; 1.4 kW based on IH |
| Construction | Booksize D-type |
| Cooling | Internal air cooling |
| Rated pulse frequency | 4.00 kHz |
| Degree of protection | IP20 / UL open type |
| Dimensions (W × H × D) | 50 × 380 × 270 mm |
| Net weight | 4.6 kg |
| Motor cable length | Shielded 50 m max.; unshielded 75 m max. |
| Safety Integrated | SIL 2, PL d, Category 3 |
| Lifecycle | PM300: Active Product |

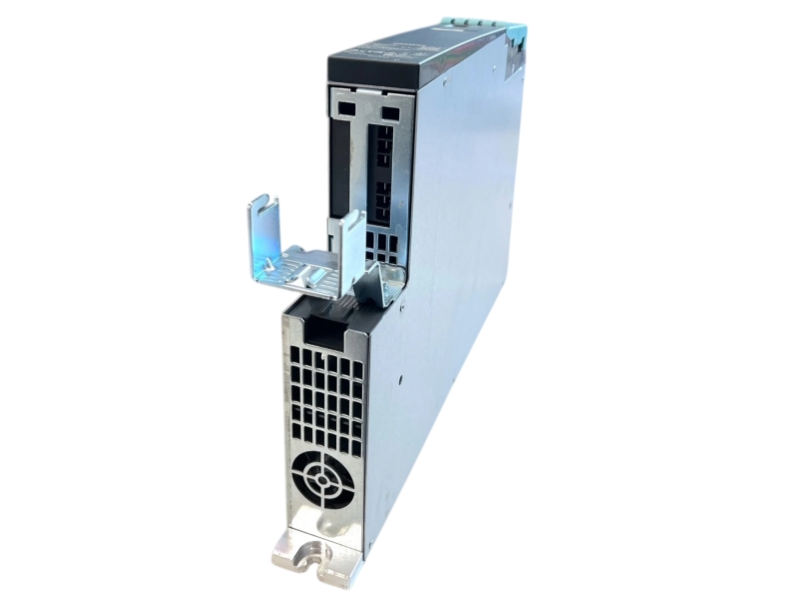

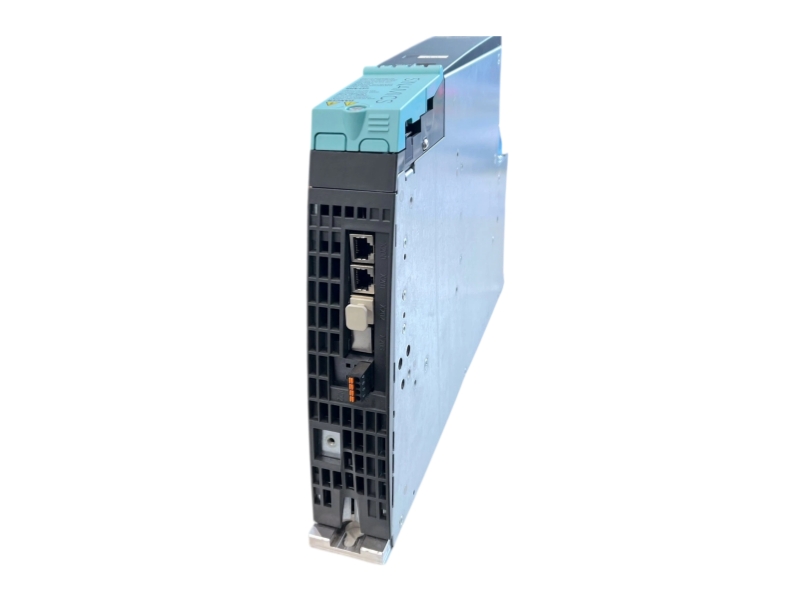

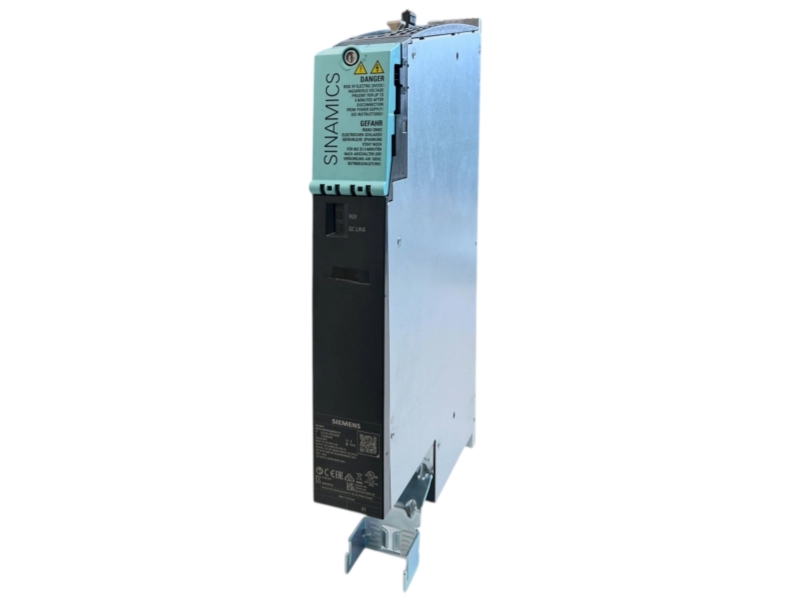

Use current photos of the front label, connector area and complete unit to confirm the full part number and hardware configuration.
| Application | Engineering Relevance |
|---|---|
| Servo and motion drive axes | Provides controlled motor-side power within a SINAMICS S120 multi-axis drive system. |
| Booksize drive cabinets | Fits modular booksize line-ups using shared DC-link and 24 V busbar architecture. |
| Safety-integrated machinery | Supports extended Safety Integrated functions when engineered and commissioned with compatible components. |
Siemens SiePortal lists the complete order number as PM300: Active Product. This wording is retained without alteration.
It is a SINAMICS S120 3 A Single Motor Module in booksize D-type format.
Siemens specifies a DC-link range of 510 to 720 V and a 3-phase 400 V output class.
Yes, the official description states support for extended Safety Integrated functions; the complete safety chain still requires engineering and validation.
Confirm the full suffix, current rating, firmware, DRIVE-CLiQ topology, motor data and mechanical fit.
Siemens lists the complete product as PM300: Active Product.
Share the full nameplate and system details for availability, revision and interchange review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Practical verification, compatibility review, inspection, packing and shipment support for SINAMICS S120 hardware.
We compare the full part number, label, hardware revision and visible connector layout before order confirmation.
Platform generation, system topology, firmware and replacement expectations are reviewed with supplied system data.
Sensitive automation hardware is packed for handling protection, with shipment options arranged for the confirmed destination.
Final supply, warranty terms, lead time and compatibility scope are confirmed against the exact 6SL3120-1TE13-0AD0 request rather than a similar model.
