Multi-axis setpoint signals
Provides several analog commands for compatible drive or motion setpoints.

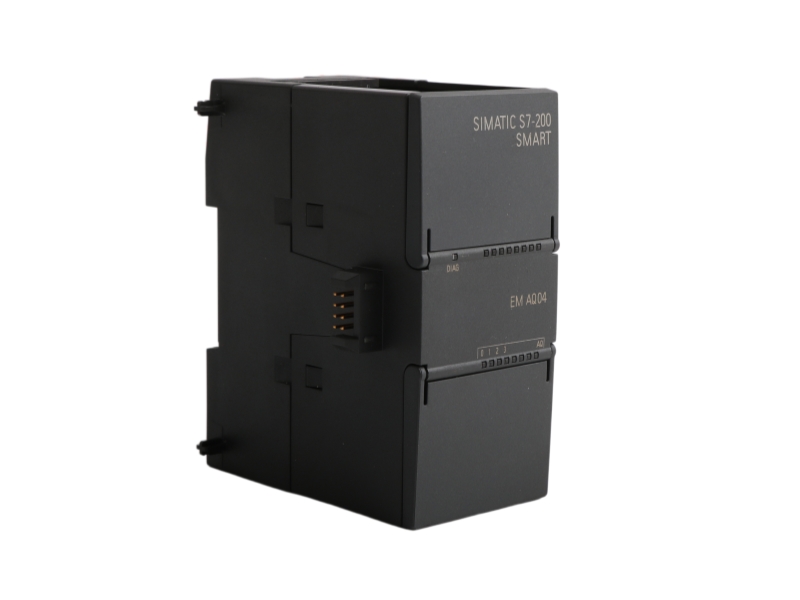

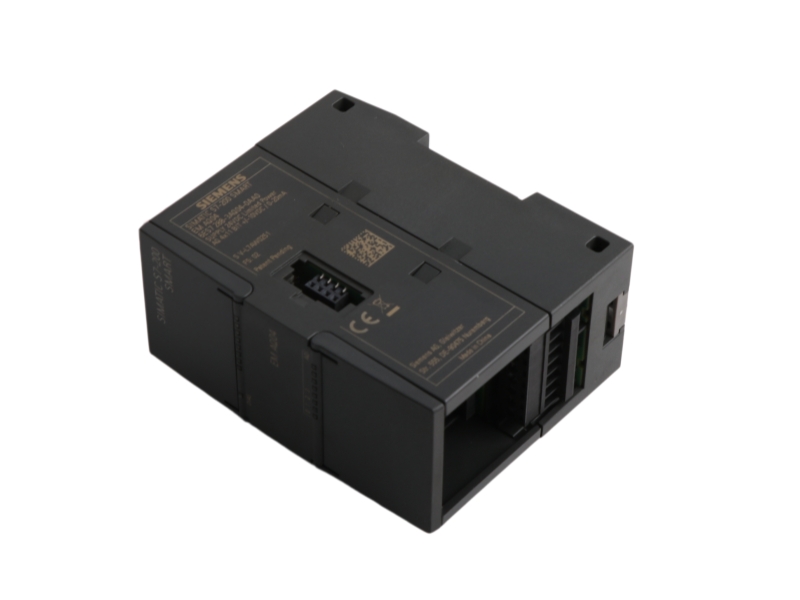

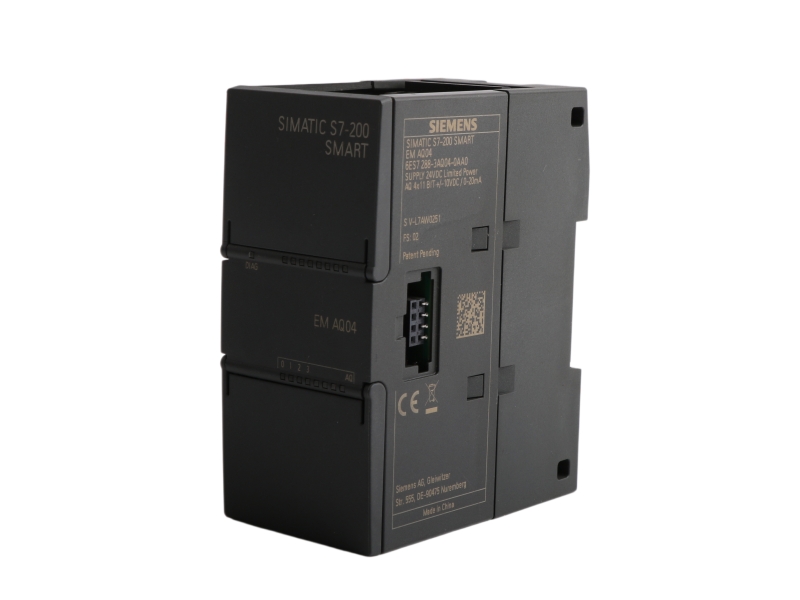

Siemens 6ES7288-3AQ04-0AA0 is the SIMATIC S7-200 SMART SM AQ04 analog output module for applications that need four independent command channels.
Siemens 6ES7288-3AQ04-0AA0 is the SIMATIC S7-200 SMART SM AQ04 analog output module for applications that need four independent command channels. Siemens identifies the module with four analog outputs that can be configured for ±10 V or 4–20 mA operation, both with 11-bit resolution. This channel density is useful for machines and process skids that coordinate several drive setpoints, valve positions or external analog setpoints from one expansion module. Procurement teams should match the complete article number rather than the family name alone. Before installation, confirm the required channel ranges, field-device loads, terminal wiring, controller configuration and available expansion capacity.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7288-3AQ04-0AA0 |
| Product Type | SIMATIC S7-200 SMART SM AQ04 4-Channel Analog Output Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 4 analog outputs |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm |
| Firmware / Software Version | Contact us to confirm |
| Country of Origin | China |
| Compatibility | SIMATIC S7-200 SMART; confirm controller, project, signal ranges, wiring and expansion configuration |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm |
| Shipping | Worldwide dispatch options confirmed with the written quotation |
| Analog outputs | 4 channels |
|---|---|
| Voltage output range | ±10 V |
| Current output range | 4–20 mA |
| Resolution | 11 bit for the stated voltage and current configurations |
| System family | SIMATIC S7-200 SMART |
| Module designation | SM AQ04 |
| Protection / installation | Use in the specified control enclosure and follow Siemens installation documentation |
| Net weight | 0.207 kg |
| Packaging dimensions | 11.40 × 12.80 × 7.80 cm |
| Compliance | Official Siemens conformity documentation lists EMC and RoHS requirements |
Provides several analog commands for compatible drive or motion setpoints.
Supports up to four analog valve or actuator setpoints when signal and load requirements match.
Consolidates four output channels in an S7-200 SMART expansion module.
Suitable for replacing an existing AQ04 after exact model, wiring and range verification.
Mount the SM AQ04 in the specified S7-200 SMART expansion position with the installation de-energized. Verify every channel range, load, terminal assignment and shielding method before reconnecting field devices. Configure the corresponding output type in the controller project before commissioning.
Match the complete article number 6ES7288-3AQ04-0AA0. Confirm the controller model, expansion position, channel configuration, signal range, terminal assignment and installed module label. Hardware revision, available unit details and any project-specific compatibility requirement must be confirmed before ordering.
6ES7288-3AQ04-0AA0 provides four analog output channels.
The official product description specifies ±10 V or 4–20 mA outputs.
Siemens specifies 11-bit resolution for the stated voltage and current configurations.
Do not assume interchangeability; confirm the complete part number, channel count, wiring and project configuration.
Available unit photos and label details can be reviewed as part of the written quotation process.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented service route for industrial automation purchases, with each commercial and technical point confirmed in writing before dispatch.
Check the complete article number, suffix, quantity and available unit label.
Confirm NEW condition and provide available product and label photos for review.
Review signal type, wiring, controller family, expansion position and project requirements.
Use suitable module protection, moisture control and export packing for the agreed route.
Confirm carrier options, freight cost, tracking and customs documentation in the quotation.
Provide one year warranty under written terms, return authorization guidance and after-sales response.
Send the complete part number, required quantity, destination country and available product label photos for compatibility review, shipping options and written warranty terms.
