Compact process measurement
Acquires two compatible analog sensor signals within one expansion module.

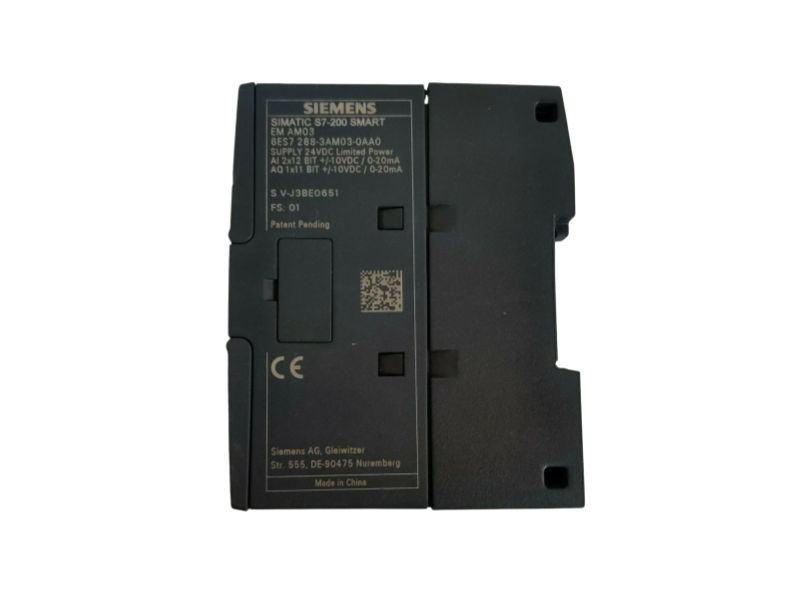

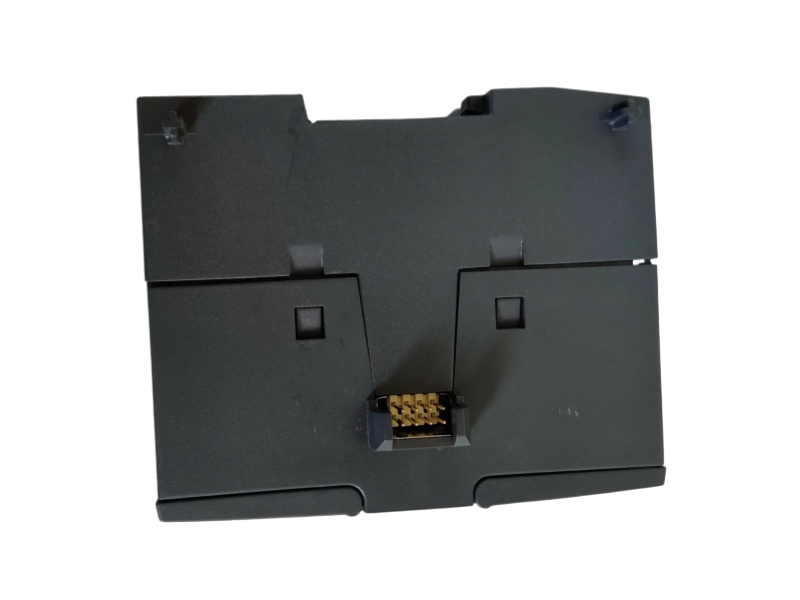

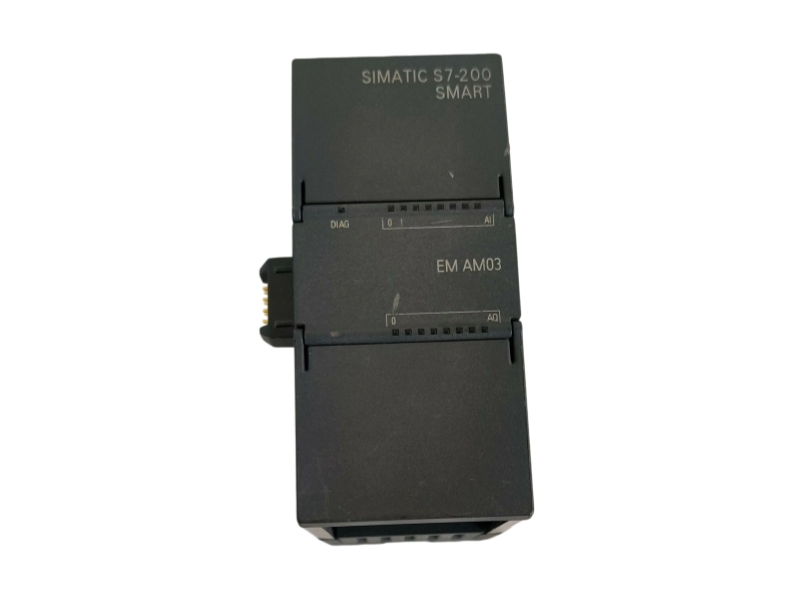

Siemens 6ES7288-3AM03-0AA0 is the SIMATIC S7-200 SMART SM AM03 mixed analog expansion module with two analog inputs and one analog output.
Siemens 6ES7288-3AM03-0AA0 is the SIMATIC S7-200 SMART SM AM03 mixed analog expansion module with two analog inputs and one analog output. The compact arrangement supports measurement and control tasks that need sensor acquisition together with a command signal in one module position. Siemens lists voltage and current ranges including 0–10 V, 0–5 V, 0/4–20 mA, ±5 V and ±2.5 V for the supported configurations, with 12-bit input conversion and an 11-bit output class for the stated output ranges. Before ordering, confirm the exact signal range, wiring method, channel configuration, module revision and compatibility with the installed S7-200 SMART project.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7288-3AM03-0AA0 |
| Product Type | SIMATIC S7-200 SMART SM AM03 2AI/1AO Analog I/O Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 2 analog inputs + 1 output |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm |
| Firmware / Software Version | Contact us to confirm |
| Country of Origin | China |
| Compatibility | SIMATIC S7-200 SMART; confirm controller, project, signal ranges, wiring and expansion configuration |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm |
| Shipping | Worldwide dispatch options confirmed with the written quotation |
| Analog inputs | 2 channels |
|---|---|
| Analog outputs | 1 channel |
| Supported signal families | 0–10 V, 0–5 V, 0/4–20 mA, ±5 V and ±2.5 V configurations |
| Additional output configuration | 4–20 mA or ±10 V as stated for the output function |
| Input conversion | 12-bit class |
| Output conversion | 11-bit class for the stated output ranges |
| Module designation | SM AM03 |
| System family | SIMATIC S7-200 SMART |
| Power loss | 1.1 W typical |
| Compliance | Official Siemens conformity documentation lists EMC and RoHS requirements |
Acquires two compatible analog sensor signals within one expansion module.
Combines analog feedback inputs with one analog command output.
Supports compact monitoring-and-control arrangements with limited module space.
Allows like-for-like AM03 replacement planning after range, terminal and project verification.
De-energize the controller before mounting or removing the module. Identify the voltage or current mode for each channel, follow the official terminal diagram and keep analog conductors separated from switching power wiring. Verify scaling and channel diagnostics in the S7-200 SMART project before returning the machine to service.
Match the complete article number 6ES7288-3AM03-0AA0. Confirm the controller model, expansion position, channel configuration, signal range, terminal assignment and installed module label. Hardware revision, available unit details and any project-specific compatibility requirement must be confirmed before ordering.
It combines two analog input channels with one analog output channel.
The module supports the official voltage and current configurations; verify each channel setup before wiring.
It identifies the exact AM03 orderable product and prevents confusion with higher-channel-count analog modules.
Provide the complete part number, quantity, signal ranges, controller type and photos of the existing module label.
The product is offered with one year warranty under written quotation terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented service route for industrial automation purchases, with each commercial and technical point confirmed in writing before dispatch.
Check the complete article number, suffix, quantity and available unit label.
Confirm NEW condition and provide available product and label photos for review.
Review signal type, wiring, controller family, expansion position and project requirements.
Use suitable module protection, moisture control and export packing for the agreed route.
Confirm carrier options, freight cost, tracking and customs documentation in the quotation.
Provide one year warranty under written terms, return authorization guidance and after-sales response.
Send the complete part number, required quantity, destination country and available product label photos for compatibility review, shipping options and written warranty terms.
