Machine temperature monitoring
Connects compatible RTDs for bearing, enclosure or process-temperature supervision.

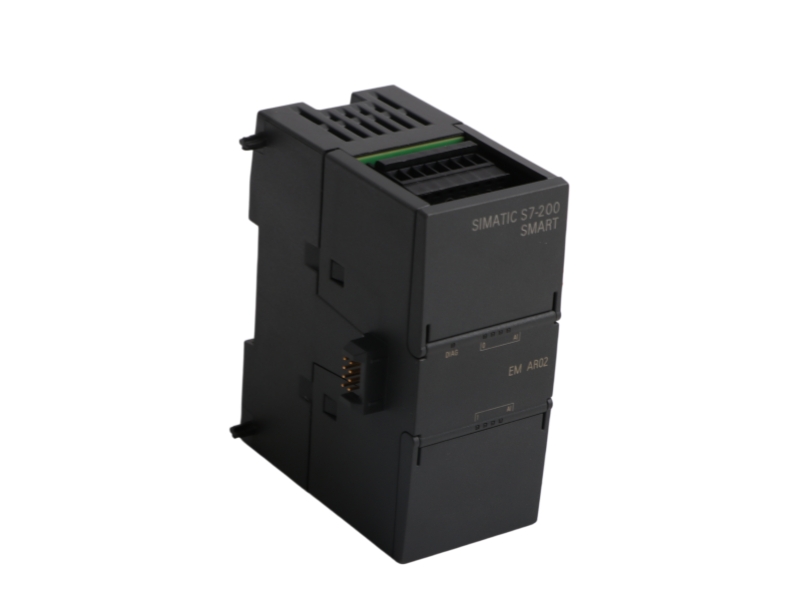

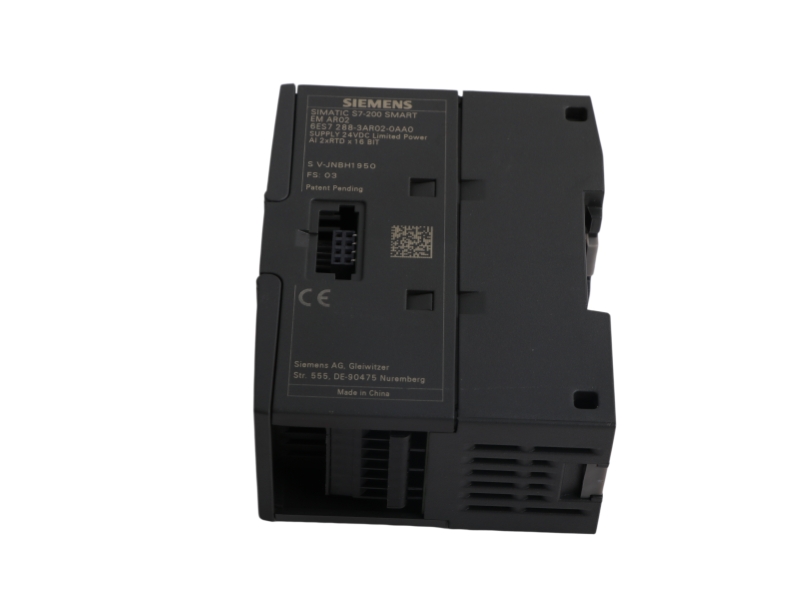

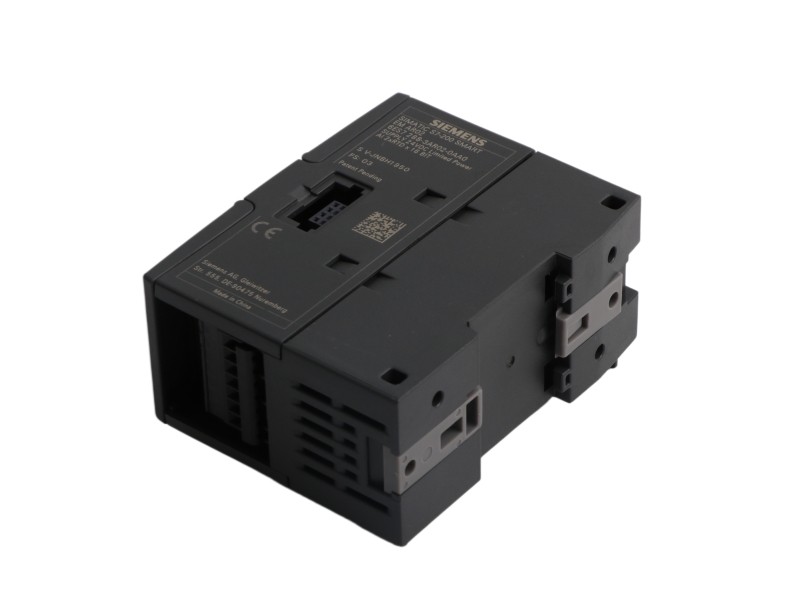

Siemens 6ES7288-3AR02-0AA0 is the SIMATIC S7-200 SMART SM AR02 expansion module for two resistance-temperature or resistance measurement channels.
Siemens 6ES7288-3AR02-0AA0 is the SIMATIC S7-200 SMART SM AR02 expansion module for two resistance-temperature or resistance measurement channels. The module is intended for applications that bring compatible Pt, Ni, Cu or resistance signals into an S7-200 SMART controller for monitoring and control. Siemens specifies sigma-delta conversion, configurable integration times and selectable interference suppression for industrial measurement environments. The module is appropriate for maintenance, panel upgrades and machine-temperature monitoring where two RTD channels are required. Before ordering, confirm the complete article number, sensor type, resistance range, wiring method, controller configuration, module revision and available expansion position.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7288-3AR02-0AA0 |
| Product Type | SIMATIC S7-200 SMART SM AR02 2-Channel RTD Analog Input Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 2 RTD input channels |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm |
| Firmware / Software Version | Contact us to confirm |
| Country of Origin | China |
| Compatibility | SIMATIC S7-200 SMART; confirm controller, project, signal ranges, wiring and expansion configuration |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm |
| Shipping | Worldwide dispatch options confirmed with the written quotation |
| Supply voltage | 24 V DC; permissible range −15% to +20% |
|---|---|
| RTD / resistance inputs | 2 channels |
| Sensor families | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000; Ni100, Ni120, Ni200, Ni500, Ni1000; Cu10, Cu50, Cu100; LG-Ni1000 |
| Resistance ranges | 48 Ω, 150 Ω, 300 Ω, 600 Ω and 3000 Ω |
| Conversion method | Sigma-delta |
| Integration times | 10, 16.67, 20 or 100 ms |
| Interference suppression | 10, 50, 60 or 400 Hz |
| Protection | IP20 |
| Dimensions | 45 × 100 × 81 mm |
| Approximate module weight | 148.7 g |
Connects compatible RTDs for bearing, enclosure or process-temperature supervision.
Supplies two measured temperature values to an S7-200 SMART control sequence.
Accepts supported resistance ranges for appropriate industrial sensing circuits.
Supports replacement of an existing AR02 after sensor type, range and wiring verification.
Select the correct RTD or resistance type in the controller project before commissioning. De-energize the panel, follow the official wiring diagram, route sensor cables away from power conductors and verify the configured integration and interference-suppression settings for the installation environment.
Match the complete article number 6ES7288-3AR02-0AA0. Confirm the controller model, expansion position, channel configuration, signal range, terminal assignment and installed module label. Hardware revision, available unit details and any project-specific compatibility requirement must be confirmed before ordering.
Siemens lists supported Pt, Ni, Cu and resistance measurement configurations; select the exact type in the project.
The SM AR02 provides two resistance-temperature or resistance input channels.
No. This order number is identified for RTD and resistance inputs, not general voltage or current measurement.
Confirm the sensor type, wiring, configured range, module position and complete article number.
The requested configuration is NEW and offered with one year warranty under written quotation terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented service route for industrial automation purchases, with each commercial and technical point confirmed in writing before dispatch.
Check the complete article number, suffix, quantity and available unit label.
Confirm NEW condition and provide available product and label photos for review.
Review signal type, wiring, controller family, expansion position and project requirements.
Use suitable module protection, moisture control and export packing for the agreed route.
Confirm carrier options, freight cost, tracking and customs documentation in the quotation.
Provide one year warranty under written terms, return authorization guidance and after-sales response.
Send the complete part number, required quantity, destination country and available product label photos for compatibility review, shipping options and written warranty terms.
