Drive setpoint control
Provides analog speed or torque setpoints where the receiving drive accepts the configured signal range.

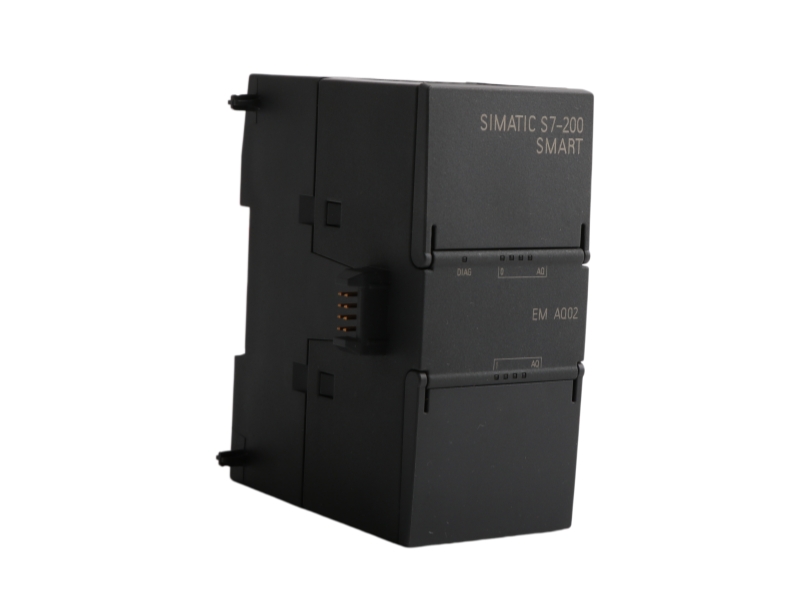

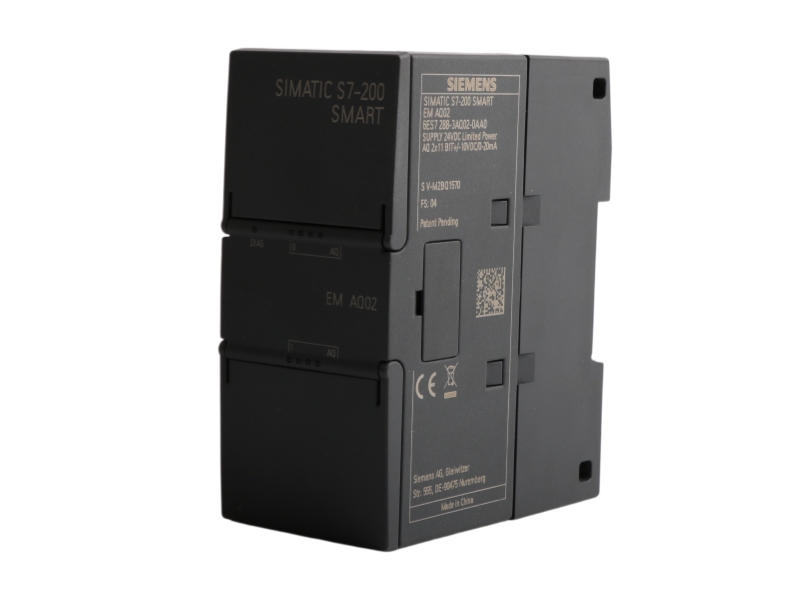

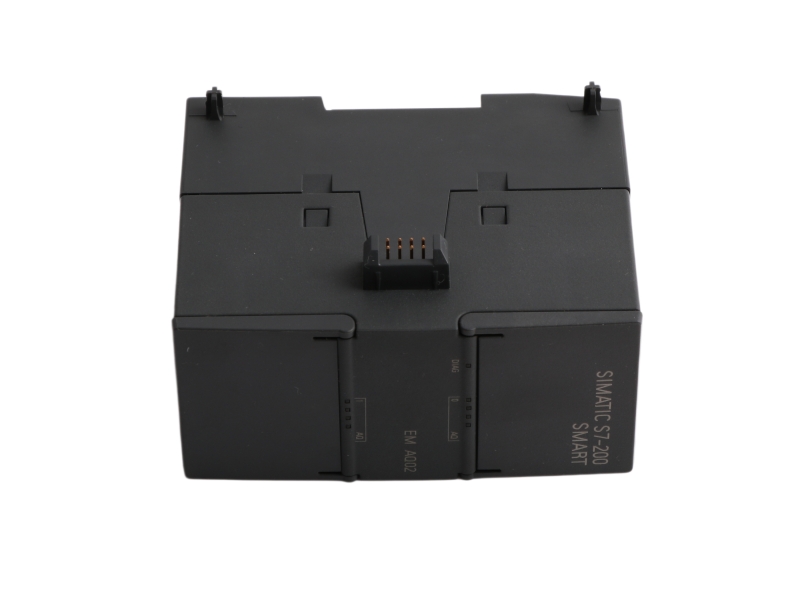

Siemens 6ES7288-3AQ02-0AA0 is the SIMATIC S7-200 SMART SM AQ02 analog output expansion module with two configurable output channels.
Siemens 6ES7288-3AQ02-0AA0 is the SIMATIC S7-200 SMART SM AQ02 analog output expansion module with two configurable output channels. The module converts controller values into analog voltage or current signals for field devices such as drive setpoints, valve positioners and other analog actuators. Siemens specifies a ±10 V output range with 11-bit resolution, or a 4–20 mA output range with 10-bit resolution. It is suited to maintenance replacements and compact machine upgrades where two analog command signals are required. Before ordering, confirm the complete article number, selected output mode, load requirements, wiring arrangement and available expansion position.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7288-3AQ02-0AA0 |
| Product Type | SIMATIC S7-200 SMART SM AQ02 2-Channel Analog Output Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 2 analog outputs |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm |
| Firmware / Software Version | Contact us to confirm |
| Country of Origin | China |
| Compatibility | SIMATIC S7-200 SMART; confirm controller, project, signal ranges, wiring and expansion configuration |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm |
| Shipping | Worldwide dispatch options confirmed with the written quotation |
| Supply voltage | 24 V DC; permissible range 20.4–28.8 V DC |
|---|---|
| Analog outputs | 2 current or voltage outputs |
| Voltage output range | −10 V to +10 V |
| Current output range | 4–20 mA product configuration; verify programmed range |
| Maximum resolution | 11 bit |
| Voltage load | Minimum 1 kΩ |
| Current load | Maximum 500 Ω |
| Diagnostics | Supply monitoring, wire-break and short-circuit functions |
| Protection | IP20 |
| Dimensions | 45 × 100 × 81 mm |
Provides analog speed or torque setpoints where the receiving drive accepts the configured signal range.
Supplies analog command values to compatible process valve positioners.
Creates two independent analog setpoints for compact automation cells.
Supports replacement planning for an existing SM AQ02 installation after wiring and load verification.
Install the module in the intended S7-200 SMART expansion position with power removed. Confirm 24 V DC supply polarity, select the required voltage or current mode, observe the stated load limits and separate analog wiring from noise-producing conductors.
Match the complete article number 6ES7288-3AQ02-0AA0. Confirm the controller model, expansion position, channel configuration, signal range, terminal assignment and installed module label. Hardware revision, available unit details and any project-specific compatibility requirement must be confirmed before ordering.
It provides two configurable analog output channels for voltage or current signals.
Yes, when each connected device, signal range and load meet the configured channel requirements.
Confirm the full article number, wiring, output range, load impedance and the available S7-200 SMART expansion position.
Please contact us to confirm the exact revision available for quotation.
Worldwide shipping options are confirmed according to destination, packing requirements and written quotation terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented service route for industrial automation purchases, with each commercial and technical point confirmed in writing before dispatch.
Check the complete article number, suffix, quantity and available unit label.
Confirm NEW condition and provide available product and label photos for review.
Review signal type, wiring, controller family, expansion position and project requirements.
Use suitable module protection, moisture control and export packing for the agreed route.
Confirm carrier options, freight cost, tracking and customs documentation in the quotation.
Provide one year warranty under written terms, return authorization guidance and after-sales response.
Send the complete part number, required quantity, destination country and available product label photos for compatibility review, shipping options and written warranty terms.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
