Product Summary

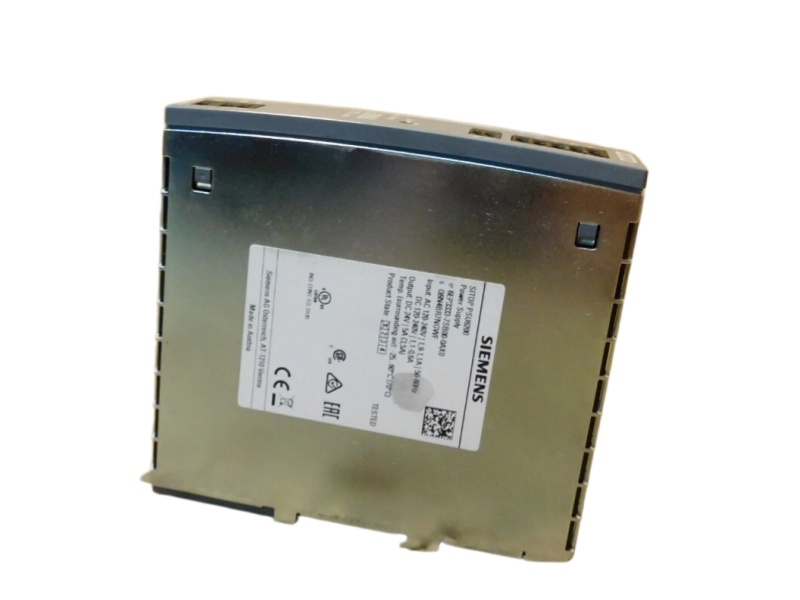

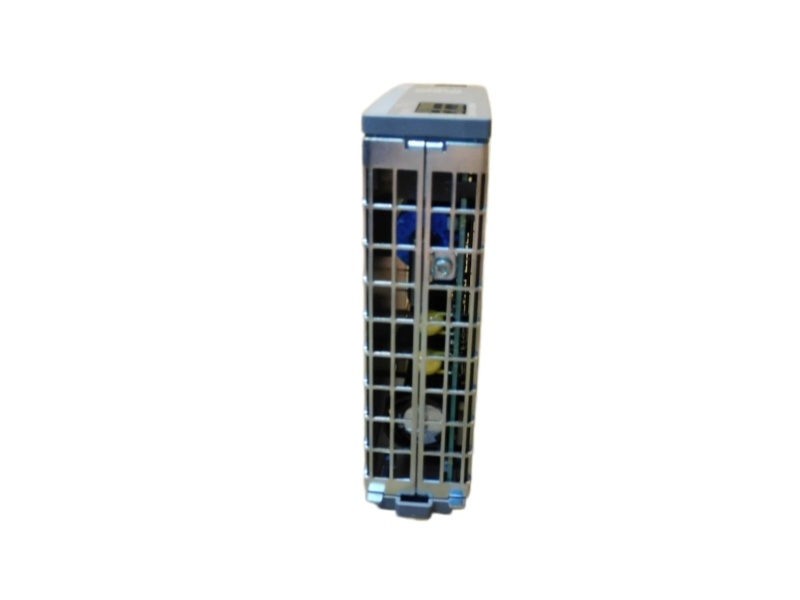

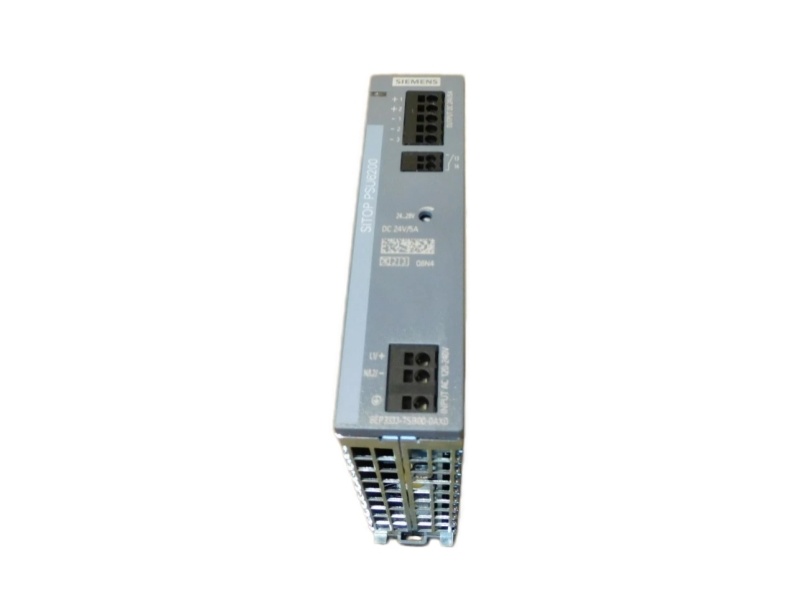

Siemens 6EP3333-7SB00-0AX0 is a SITOP PSU6200 stabilized power supply rated for 24 V DC at 5 A. It accepts 120–240 V AC or DC nominal input and permits front adjustment of the output from 24 to 28 V DC. Siemens specifies 150% extra power for five seconds per minute, supporting short-duration load peaks within documented limits. The 35 mm-wide DIN-rail unit is intended for industrial control cabinets and replacement procurement. Before ordering, verify input source, output current, conductor sizing, cabinet temperature, mounting clearances, load behavior, dimensions and complete label details.

Key Product Information

Power Conversion and Load Support

The PSU6200 converts the permitted AC or DC input to a stabilized 24 V DC control supply. The adjustable output supports voltage-drop compensation within the 24 to 28 V range. Short-term extra power must not be used as a continuous 7.5 A rating.

Electrical and Mechanical Data

Installation and Wiring

• Isolate the input and follow qualified-electrical-work procedures.
• Verify AC or DC input, protection, conductor cross-sections and terminal tightening.
• Provide documented clearance and airflow, particularly above 60 °C.
• Calculate continuous and peak 24 V loads separately.
• Confirm that any raised output voltage is suitable for every connected device.

Maintenance and Troubleshooting

Record incoming voltage, measured load, startup current, output setting and cabinet temperature. Inspect wiring and downstream loads before energizing a replacement; repeated overload can indicate a system fault rather than a power-supply defect.

Applications

• Supplying regulated 24 V DC to PLC, HMI and control circuitry within the 5 A limit.
• Replacing a 35 mm-wide DIN-rail supply after electrical and dimensional verification.
• Supporting short startup peaks using the documented extra-power capability.
• Control-cabinet builds with 120–240 V nominal AC or DC input.

Compatibility and Revision Notice

Confirm the complete 6EP3333-7SB00-0AX0 number, nominal input, AC or DC connection, 24 V load and peak current, terminal wiring, hardware status, output setting, installation space, DIN rail, cabinet temperature and original label photos.

Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
