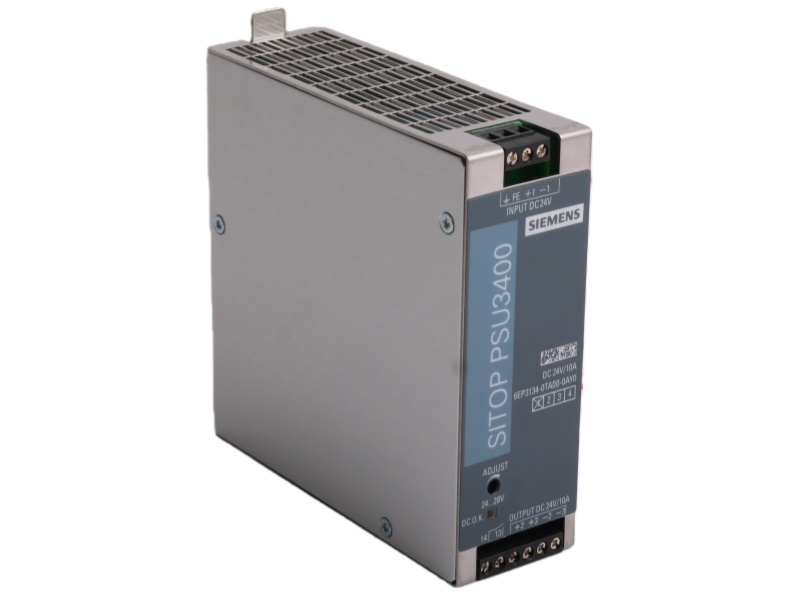

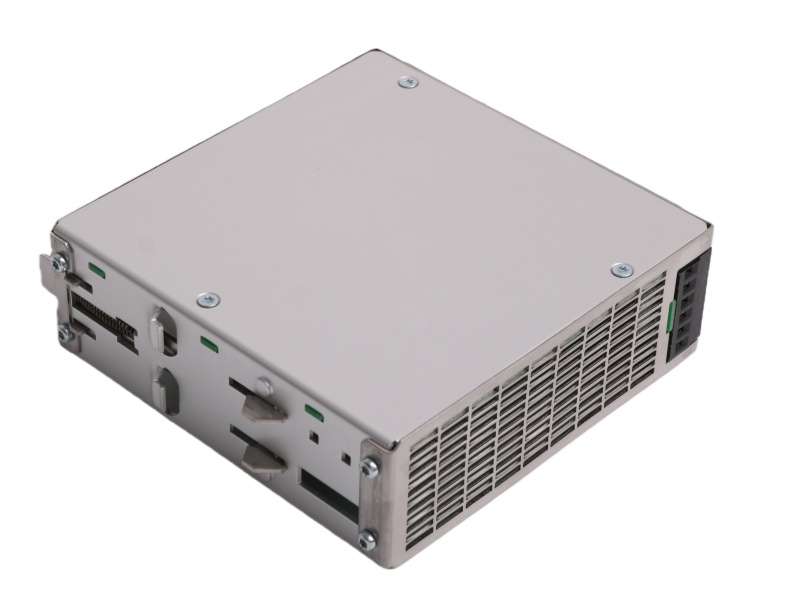

6EP3134-0TA00-0AY0 Overview

The Siemens Stabilized Power Supply 6EP3134-0TA00-0AY0 is a stabilized DC-DC power supply, converting 14-32 V DC input to a regulated 24 V DC/10 A output with high precision, suitable for industrial control applications.

Technical Data Summary of Siemens 6EP3134-0TA00-0AY0

Input: DC voltage, range 14-32 V; startup from 18 V.

Output: Regulated 24 V DC, rated current 10 A.

Voltage Precision: 1% overall tolerance; 0.1% regulation vs. input fluctuation.

Ripple & Noise: Max. 150 mV residual ripple; max. 250 mV voltage peak.

Adjustability: Output adjustable from 24 V to 28 V via potentiometer.

Status Indication: Features green LED and relay contact for 24 V OK signal.

FAQ

Q1: What is the basic function of this power supply?

A1: It is a DC-DC stabilized power supply that converts a DC input of 18-32V to a regulated 24V DC output.

Q2: What is the rated output current?

A2: The rated output current is 10 Amperes (A).

Q3: Is the output voltage adjustable?

A3: Yes, the output voltage is adjustable within a range of 24V to 28V.

Q4: How is the operational status indicated?

A4: Status is indicated by a green "24V OK" LED and a relay contact signal.

Q5: What protection features does it have?

A5: It includes internal fuse protection and is designed with inrush current limitation.
