A compact S7-1500 controller with PROFINET IRT, 150 KB program memory and 1 MB data memory.

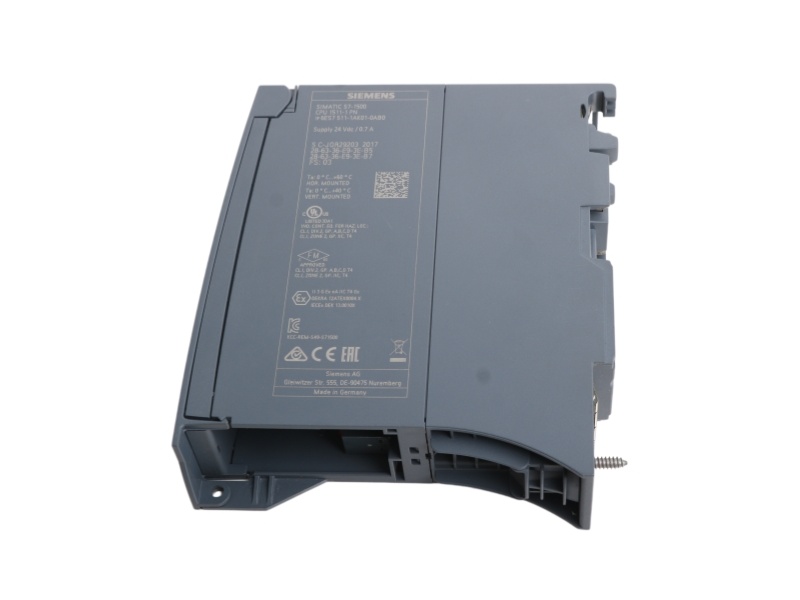

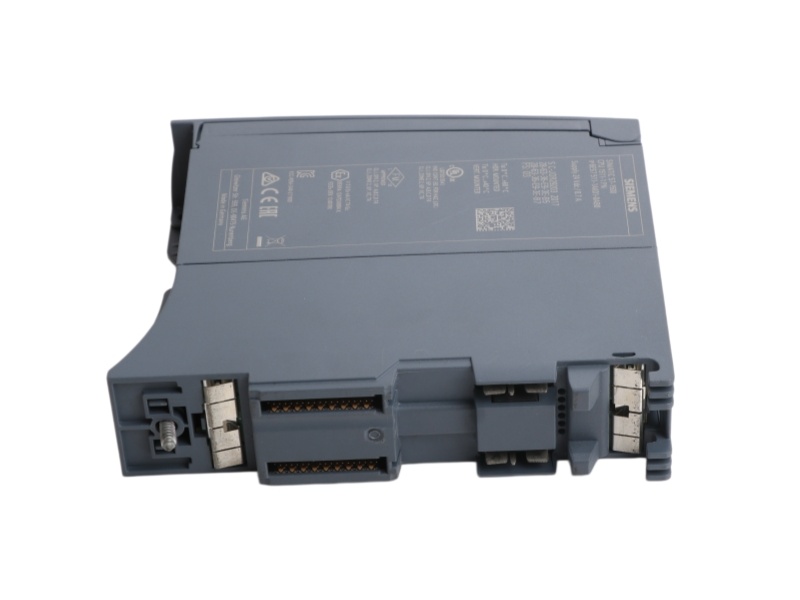

Siemens 6ES7511-1AK01-0AB0 is a SIMATIC S7-1500 CPU 1511-1 PN for compact automation tasks. The CPU provides 150 KB program work memory, 1 MB data work memory and a PROFINET IRT interface with an integrated two-port switch. Siemens specifies 60 ns bit performance, and a SIMATIC Memory Card is required for operation. This order number is suited to maintenance of an existing S7-1500 installation where the precise CPU generation matters. Before ordering, compare the complete suffix, hardware status, firmware version, TIA Portal project, memory-card requirements, network configuration and front-label photographs.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7511-1AK01-0AB0 |
| Product Type | CPU 1511-1 PN Central Processing Unit |
| Series | SIMATIC S7-1500 |
| Model Configuration | 150 KB program memory; 1 MB data memory; PROFINET IRT two-port switch |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the TIA Portal project, firmware, hardware status, memory card and PROFINET configuration. |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm. |
| Shipping | Worldwide options are checked in the written quotation. |

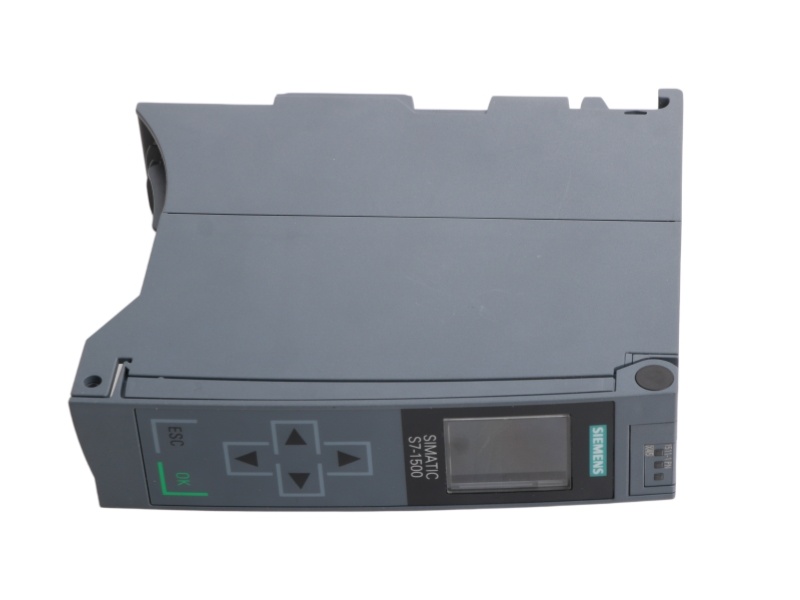

The CPU 1511-1 PN combines program execution, data handling and PROFINET communication in a narrow S7-1500 central unit. Its integrated display and diagnostics support commissioning and service work, while the two-port interface supports line-oriented connection planning.
| Program work memory | 150 KB |
|---|---|
| Data work memory | 1 MB |
| Bit performance | 60 ns |
| Communication | PROFINET IRT with integrated two-port switch |
| Memory card | SIMATIC Memory Card required |
| Supply voltage | 24 V DC nominal |
| Permitted range | 19.2 to 28.8 V DC |
| Rated current | 0.7 A |
| Power-failure buffering | 5 ms |
| Manufacturer comparison data | Hardware FS03 and firmware V2.9 for this catalog revision |
| Engineering for firmware V2.9 | TIA Portal V17 or later |
| Lifecycle | Cancelled since 7 May 2018; spare-part status |
| Siemens-listed successor | 6ES7511-1AL03-0AB0; compatibility review required |
Siemens identifies 6ES7511-1AL03-0AB0 as a successor. A successor can require engineering review, firmware alignment or project changes and must not be treated as a direct substitute without validation.
Confirm all characters in 6ES7511-1AK01-0AB0, the rack arrangement, 24 V DC supply, PROFINET ports, hardware status, firmware, TIA Portal release, memory-card data, mounting dimensions, project functions and original label photos.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Siemens lists it as cancelled since 7 May 2018 and as a spare part. Availability must be checked.
Official data specifies 150 KB program memory and 1 MB data memory.
Comparison data associates firmware V2.9 with TIA Portal V17 or later; confirm actual firmware.
Yes. Siemens states that a SIMATIC Memory Card is required.
Do not assume direct interchangeability; review firmware, engineering software, interfaces and project.
Photos and international options can be requested and confirmed in the quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Copyable inquiry contacts: sales6@apterpower.com | +86 18159889985
Support for 6ES7511-1AK01-0AB0 enquiries is based on exact identification, documented terms and careful industrial handling.
Availability and delivery timing are confirmed only in a written quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Copyable inquiry contacts: sales6@apterpower.com | +86 18159889985
Each entry identifies an independent product and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
