SITOP UPS500S / CAPACITOR DC UPS

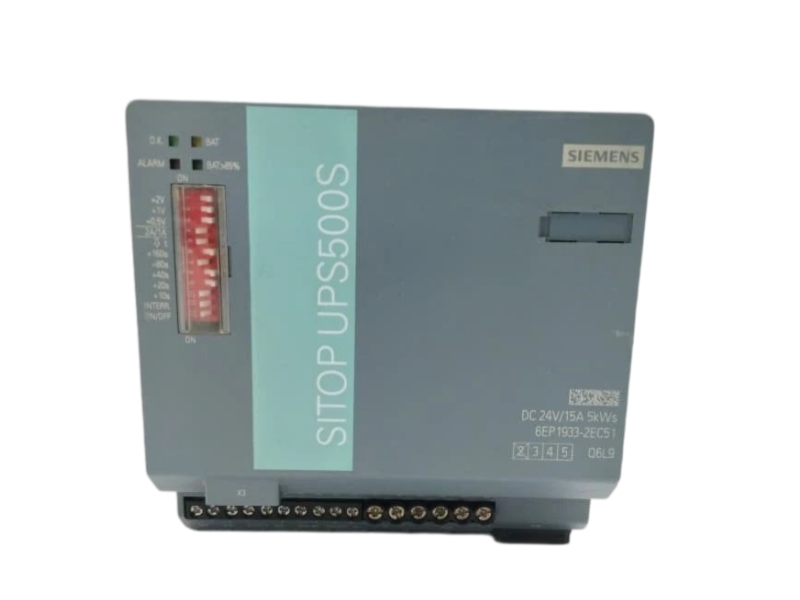

SITOP UPS500S Capacitor DC UPS
The Siemens 6EP1933-2EC51 is a SITOP UPS500S basic unit for buffering 24 V DC control power. It uses capacitor energy storage rather than a conventional battery and combines 5 kWs of stored energy with an output rating of 15 A. A USB interface supports status integration, while the IP20 enclosure is intended for installation in a suitable control cabinet. Buffer duration depends on the connected load and available stored energy. The unit is relevant where short power interruptions must be bridged, provided the complete DC supply, load and shutdown requirements are assessed together.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments. Worldwide shipping options are reviewed for the destination.
Supply range from 22 to 29 V DC
Capacitor-based energy buffering
Rated output current of 15 A
During normal operation, the connected DC supply powers the system and charges the energy storage. If the supply falls below the configured response level, stored energy supports the load. Select the buffering arrangement from the actual load profile rather than treating the 5 kWs energy value as a fixed runtime.
| Technical parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6EP1933-2EC51 |
| Product Type | Capacitor DC UPS basic unit |
| Series | SITOP UPS500S |
| Rated input | 24 V DC |
| Input voltage range | 22 to 29 V DC |
| Energy storage | Capacitors; 5 kWs |
| Rated output voltage | 24 V DC |
| Rated output current | 15 A |
| Interface | USB |
| Degree of protection | IP20 |

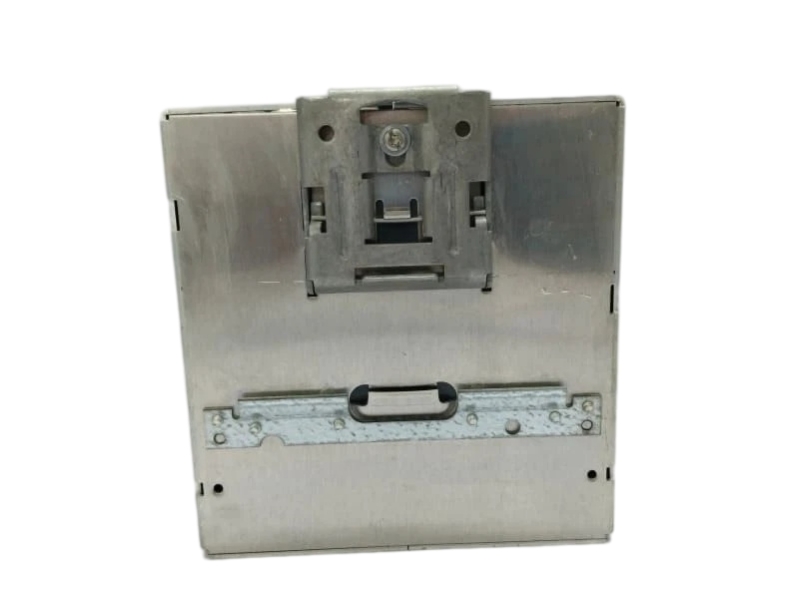

| Mounting | DIN rail |
| Official Life Cycle | Active |
Check the input supply, total load current, required buffering duration and installed energy-storage arrangement. Maintain the required ventilation and cabinet protection. This DC UPS is not a substitute for the upstream AC-to-DC power supply.
Match the complete part number, terminals, USB integration and buffer settings to the existing system. Check shutdown timing with the connected equipment. Do not assume an alternative energy capacity or enclosure version is interchangeable.
Its energy storage uses capacitors. The basic unit provides 5 kWs of stored energy.
The nominal output is 24 V DC with a rated current of 15 A. The connected load must remain within the permitted ratings.
No. Runtime depends on the load and available energy. Size and configure the system for the required interruption or shutdown interval.
The unit includes a USB interface for integration with the supported monitoring arrangement.
Check the incoming supply, charging state, load current, buffer settings and reported status before assessing the unit. Follow the equipment documentation for safe troubleshooting.
