SIMATIC S7-200 SMART / CPU ST60
S7-200 SMART CPU ST60 DC/DC/DC

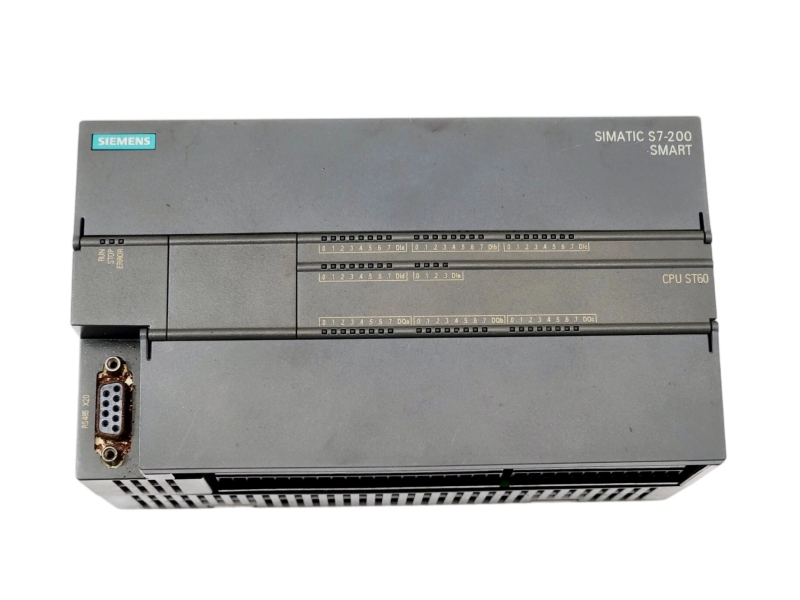

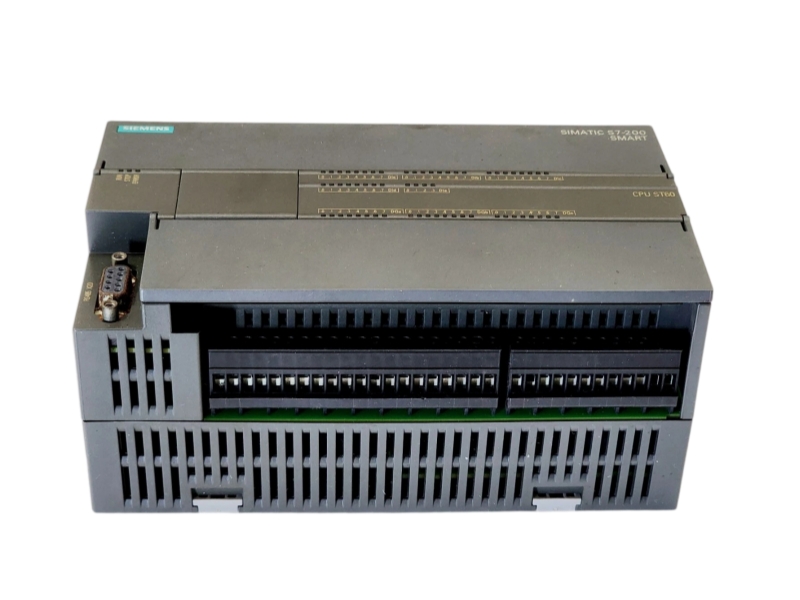

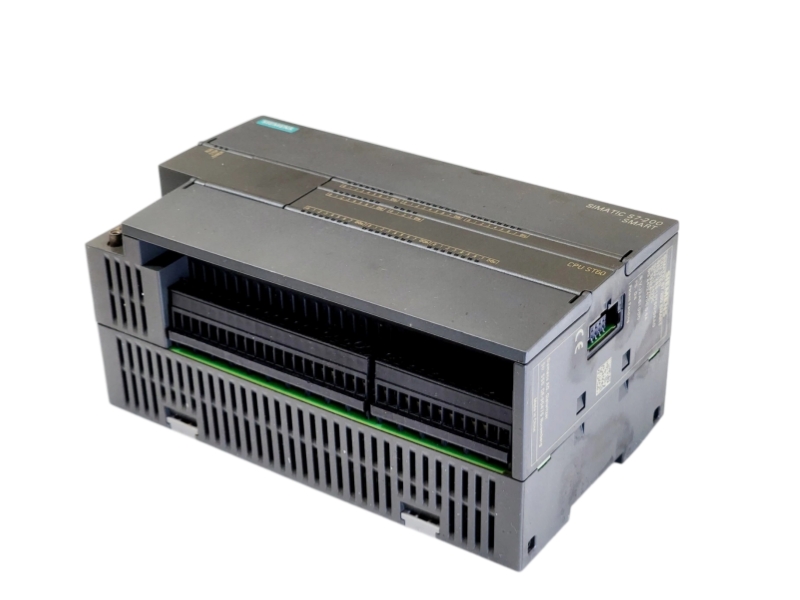

The Siemens 6ES7288-1ST60-0AA0 is a SIMATIC S7-200 SMART CPU ST60 with a DC/DC/DC configuration. It combines 36 digital inputs and 24 digital outputs with a nominal 24 V DC supply in one controller. Programming uses STEP 7 Micro/WIN SMART, with 30 KB of program memory and 20 KB for user data. This combination supports compact automation projects that need numerous discrete signals without starting with a separate I/O module for every function. For replacement work, compare the complete order code, terminal assignment and existing project before transferring a program or reconnecting field wiring.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments. Worldwide shipping options are reviewed for the destination.
24 V DC field signal acquisition
STEP 7 Micro/WIN SMART project
DC transistor output configuration
The CPU processes the user program and links the onboard digital inputs to the configured output logic. Its DC/DC/DC designation identifies DC power, DC inputs and DC outputs. Check each output circuit against the permitted load and wiring arrangement before commissioning.
| Technical parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-1ST60-0AA0 |
| Product Type | CPU ST60 DC/DC/DC |
| Series | SIMATIC S7-200 SMART |
| Onboard digital inputs | 36; 24 V DC |
| Onboard digital outputs | 24; 24 V DC |
| Rated supply | 24 V DC |
| Supply range | 20.4 to 28.8 V DC |
| Program memory | 30 KB |
| User data memory | 20 KB |
| Engineering software | STEP 7 Micro/WIN SMART |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 175 x 100 x 81 mm |
Match the complete part number and DC/DC/DC configuration, not only the ST60 designation. Compare the terminal layout and I/O allocation with the machine drawings. Isolate the equipment before wiring and follow the permitted supply and load ratings.
Retain the machine program and configuration before replacement. Check firmware and STEP 7 Micro/WIN SMART compatibility, and restrict network access to authorized engineering devices. A shared family name does not establish interchangeability.
It is a SIMATIC S7-200 SMART CPU ST60 in the DC/DC/DC configuration.
The controller provides 36 digital inputs and 24 digital outputs, both specified for 24 V DC operation.
Use STEP 7 Micro/WIN SMART with the project and CPU version supported by the installation.
The rated supply is 24 V DC, with a permissible range from 20.4 to 28.8 V DC.
Compare the complete suffix, terminal assignment, output load requirements, firmware and saved project. Do not treat a different CPU configuration as a direct replacement.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
A clear procurement process for industrial automation spare parts.
Model and suffix verification starts with the complete order code. Product and label photo confirmation helps compare the offered item with the required unit.
Condition confirmation and technical compatibility review cover the stated condition, installed configuration and available product details. Inspection focuses on visible condition, labels and packaging; functional testing is not implied unless separately agreed.
Protective packaging is selected for the equipment. Worldwide shipping coordination includes destination details, shipment tracking and customs documentation appropriate to the order.
Written warranty terms define the agreed coverage. A return authorization process and after-sales response provide a documented route for reporting an issue and discussing the next step.
Stockoems coordinates model checks, photo review, protective handling, logistics and order documentation through a consistent sales contact. Provide the required quantity and destination so that the offer can address the actual purchasing requirement. Dispatch timing and shipping arrangements are agreed for the individual order; no fixed lead time or stock quantity is implied.
Ask for an identifiable business entity, a clear quotation, current product and label photos, and written condition and warranty terms. Compare those details with the equipment requirement rather than relying on a stock statement alone.
Specify the manufacturer, complete part number and suffix, quantity, accepted condition, destination and required documentation. Record the agreed warranty, return process and shipping terms in writing.
Compare the exact order code, hardware details, interface, power requirements and engineering configuration with the installed system. A similar appearance or shared product family is not sufficient evidence of compatibility.
Inconsistent labels, incomplete suffixes, reused or unclear photos, unexplained substitutions and refusal to provide written terms are reasons to pause. An unusually low offer alone does not prove a problem, but it should not replace technical and commercial checks.
No. Photographs support identity and visible-condition checks but cannot establish internal condition or operational performance. Agree any additional inspection or testing requirements and the evidence to be supplied before ordering.
