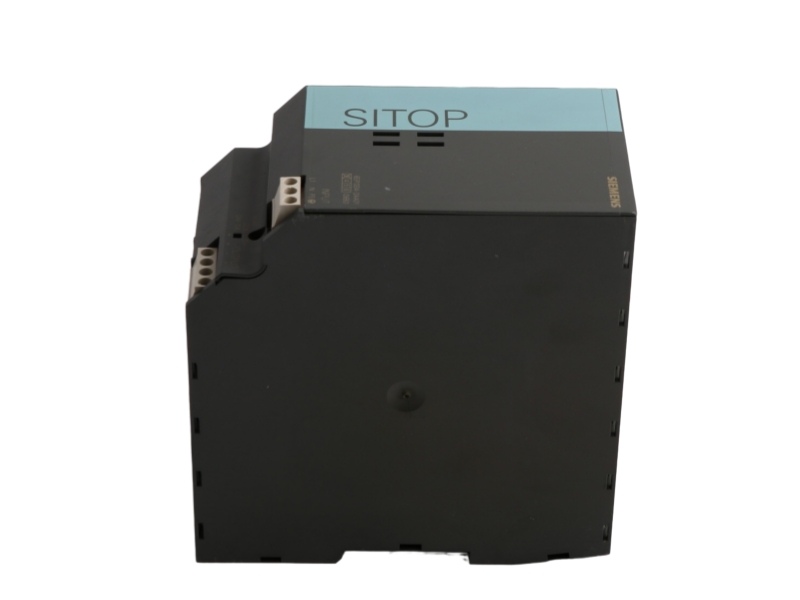

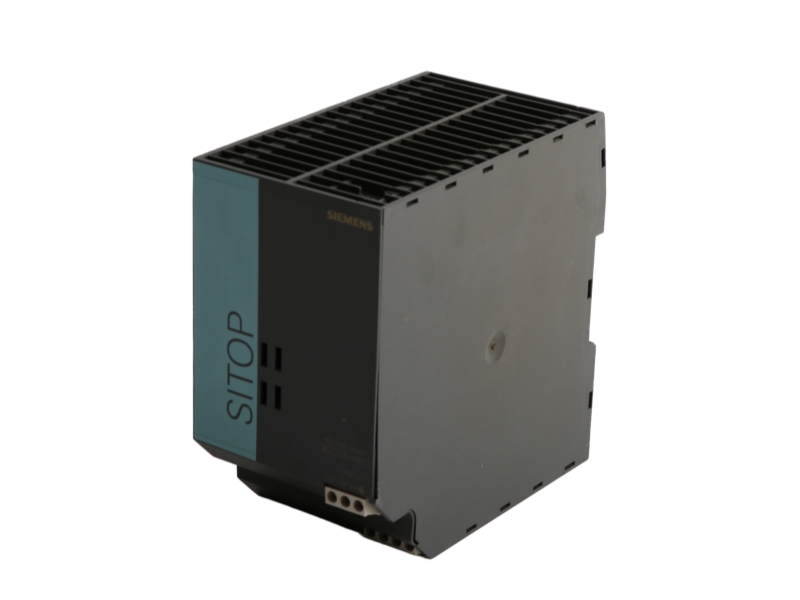

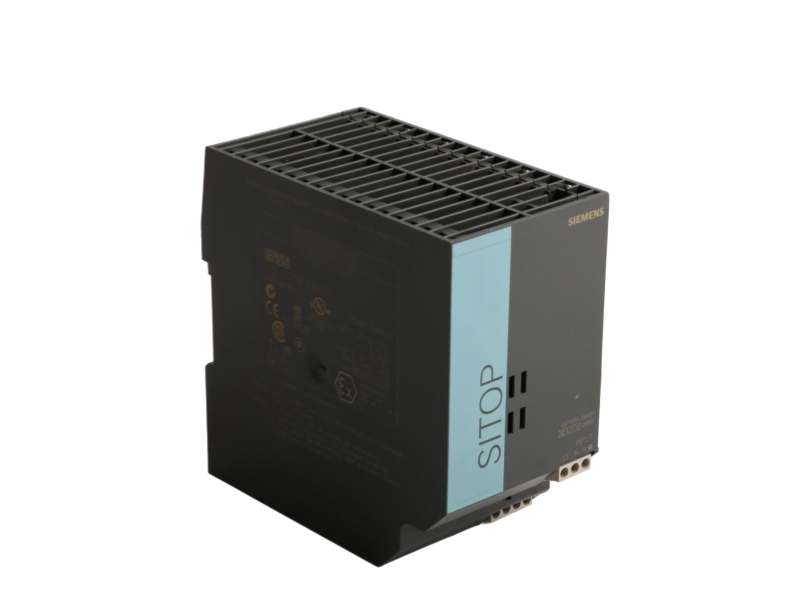

Siemens 6EP1334-2AA01 is a SITOP smart 240 W stabilized power supply for industrial 24 V DC control loads. A selector switch configures the unit for 120 V or 230 V AC networks, while the regulated, galvanically isolated output supplies 24 V DC at 10 A. Output voltage is adjustable from 22.8 to 28 V, and a green indicator supports routine operating checks. The enclosure snaps onto an EN 60715 DIN rail and uses screw terminals. For maintenance replacement, verify the complete part number, selected input range, load current, wiring, rail space and panel clearances before installation.
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6EP1334-2AA01 |
| Series | SITOP smart |
| Product Type | Stabilized power supply |
| Rated Input | 120/230 V AC, selectable; 50/60 Hz |
| Input Voltage Ranges | 85–132 V AC and 170–264 V AC |
| Rated Output | 24 V DC, 10 A, 240 W |
| Adjustable Output | 22.8–28 V DC |
| Housing Dimensions | 70 × 125 × 125 mm (W × H × D) |
| Approximate Weight | 0.75 kg |
| Mounting | DIN rail EN 60715 35 × 7.5/15 |
| Connections | Screw terminals |
| Degree of Protection | IP20 |
| Official Catalog Status | Spare part |
Match the full order number 6EP1334-2AA01, selected 120/230 V input range, 24 V/10 A load requirement, wiring, DIN-rail space and panel clearances before replacement.
It is a SITOP smart stabilized industrial power supply rated for 24 V DC at 10 A.
The unit uses selectable 120 V or 230 V AC input, with specified ranges of 85–132 V and 170–264 V AC.
Yes. Siemens specifies an adjustable output range of 22.8 to 28 V DC.
It snaps onto an EN 60715 35 × 7.5/15 DIN rail and uses screw terminals.
Siemens identifies 6EP1334-2AA01 as a spare part in the current technical product data.
