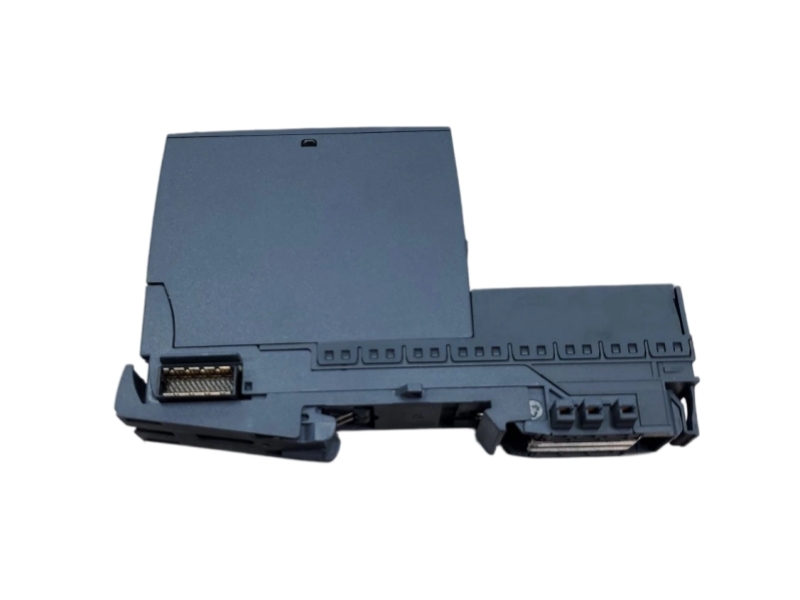

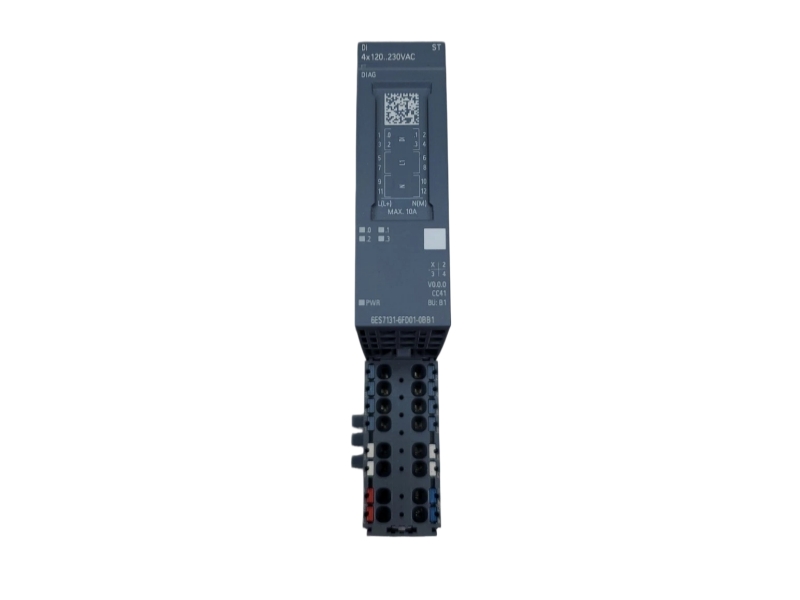

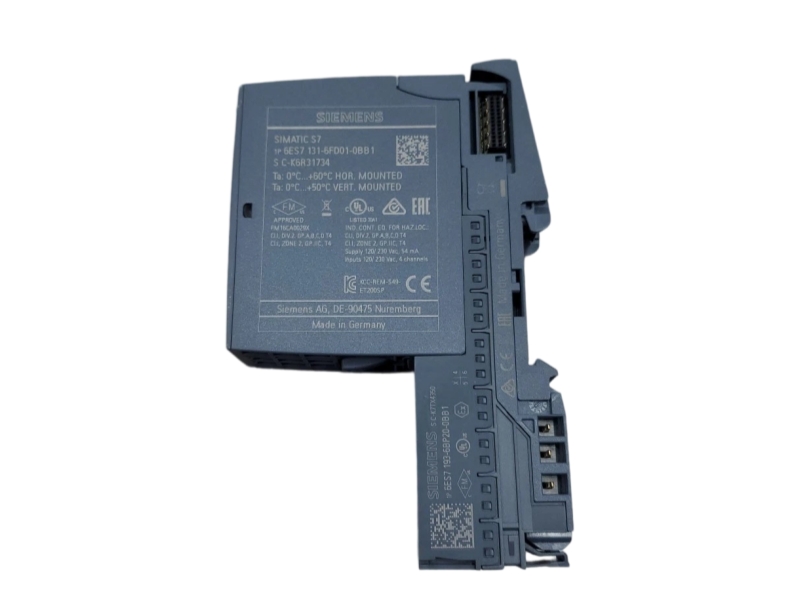

Siemens 6ES7131-6FD01-0BB1 is a SIMATIC ET 200SP digital input module for acquiring four 120–230 V AC field signals. Siemens classifies the module as Standard and specifies type 3 input behavior according to IEC 61131. It is designed for a BaseUnit type B1 and carries color code CC41. Status and module diagnostic indication support commissioning and maintenance. Its 20 mm width suits compact distributed I/O stations. Before replacement, verify the complete suffix, signal voltage, BaseUnit type, wiring scheme, mechanical coding and configured channel addresses in the existing ET 200SP station.
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7131-6FD01-0BB1 |
| Series | SIMATIC ET 200SP |
| Product Type | Digital input module |
| Digital Inputs | 4 |
| Input Range | 120–230 V AC |
| Performance Class | Standard |
| Input Type | Type 3 according to IEC 61131 |
| Compatible BaseUnit | Type B1 |
| Color Code | CC41 |
| Dimensions | 20 × 73 × 58 mm (W × H × D) |
| Approximate Weight | 36 g |
| Official Catalog Listing | ET 200SP DI 4x120..230 V AC ST |
Match the full order number 6ES7131-6FD01-0BB1, 120–230 V AC signal level, BaseUnit type B1, color code CC41, wiring, coding and configured channel addresses before replacement.
It is a SIMATIC ET 200SP Standard digital input module with four 120–230 V AC inputs.
Siemens specifies a BaseUnit type B1 for 6ES7131-6FD01-0BB1.
The official Siemens data sheet specifies 20 mm width, 73 mm height and 58 mm depth.
The official Siemens data sheet lists an approximate weight of 36 g.
Verify the full suffix, input voltage, BaseUnit type, wiring, mechanical coding and project configuration.
