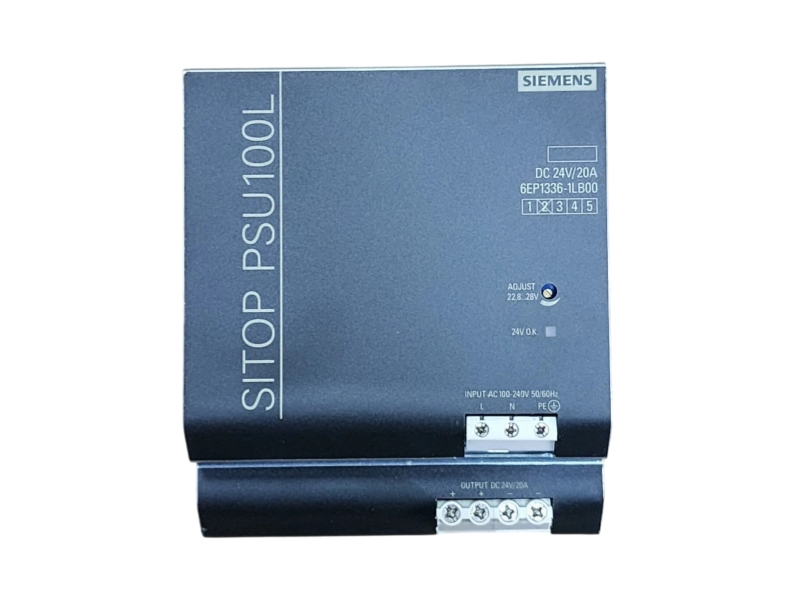

Siemens 6EP1336-1LB00 is a SITOP PSU100L stabilized power supply for basic industrial 24 V DC control loads. Its wide-range 100–240 V AC input supports common single-phase supply networks, while the regulated, galvanically isolated output delivers 24 V DC at 20 A. The unit mounts on a standard DIN rail and uses screw terminals for line and load wiring. A green 24 V O.K. indicator assists routine checks, and the U-I output characteristic supports controlled behavior during overload conditions. For replacement work, engineers should verify the complete suffix, input arrangement, current demand, mounting space, and the official successor before installation.
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6EP1336-1LB00 |
| Series | SITOP PSU100L |
| Product Type | Stabilized power supply |
| Product Family | 1-phase, 24 V DC |
| Rated Input | 100–240 V AC, 50/60 Hz |
| Rated Output | 24 V DC, 20 A, 480 W |
| Housing Dimensions | 110 × 125 × 125 mm (W × H × D) |
| Approximate Weight | 1.65 kg |
| Mounting | TH35-15/7.5 standard DIN rail |
| Connections | Screw terminals |
| Degree of Protection | IP20 |
| Official Life Cycle | PM400: Announcement of product phase-out |
| Phase-out Effective Date | 1 October 2025 |
| Official Substitute | 6EP3336-3SB00-0AX0 |
Match the full order number 6EP1336-1LB00, input network, 24 V/20 A load requirement, wiring, DIN-rail space and panel clearances before replacement. Siemens identifies 6EP3336-3SB00-0AX0 as the official substitute; the successor must be checked against the existing installation before conversion.
It is a SITOP PSU100L stabilized industrial power supply with a 24 V DC, 20 A rated output.
The rated AC input is 100–240 V at 50/60 Hz, with a wide-range input design.
The unit snaps onto a TH35-15/7.5 standard DIN rail and uses screw terminals.
Siemens currently states PM400, announcement of product phase-out, effective 1 October 2025. This wording is retained without changing it to Discontinued.
Siemens lists 6EP3336-3SB00-0AX0 as the substitute. Installation compatibility should be reviewed before replacement.
