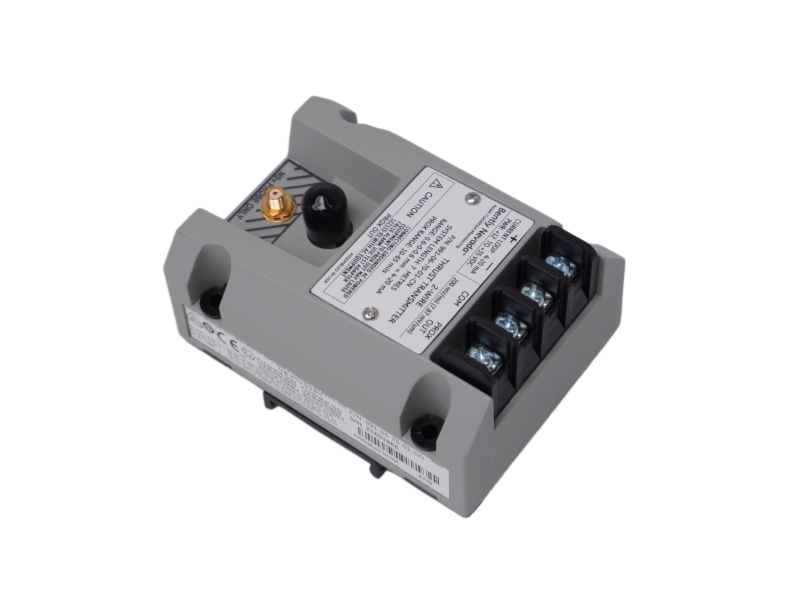

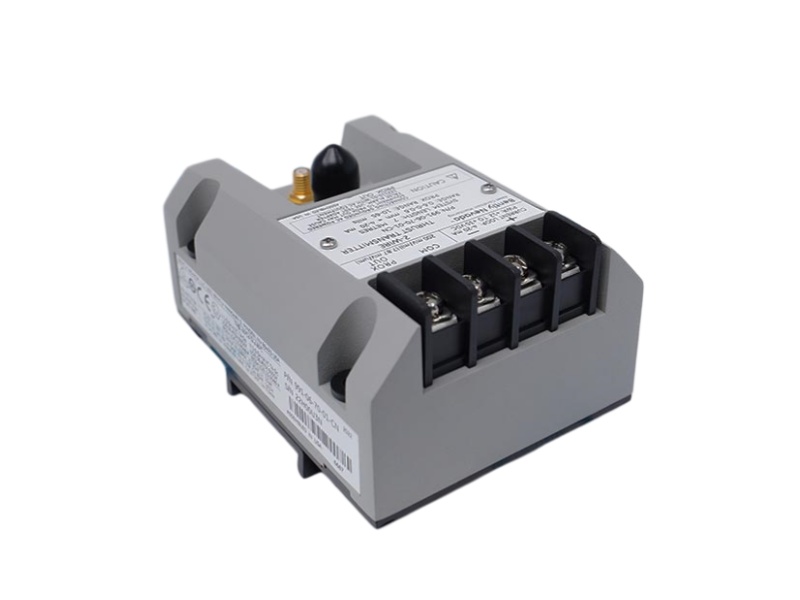

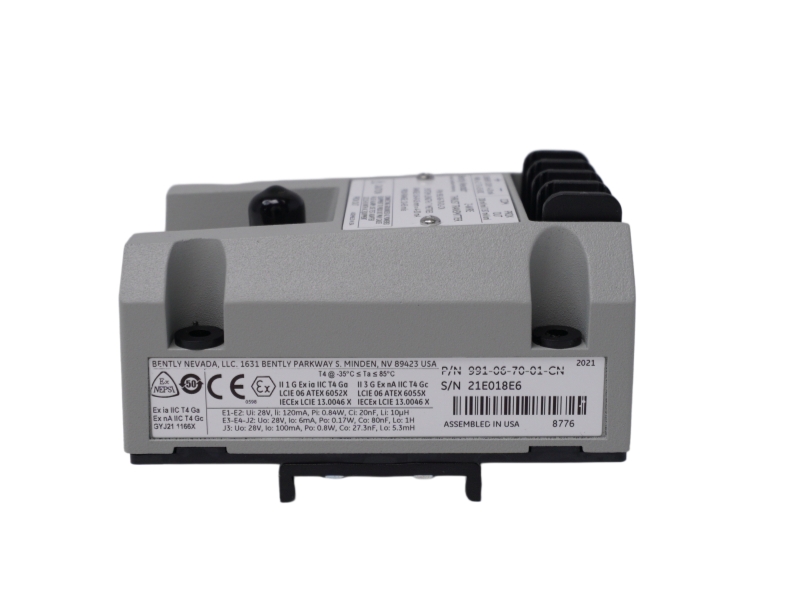

Bently Nevada 991-06-70-02-05 is a two-wire, loop-powered thrust transmitter that converts a matching 3300 NSv probe and extension-cable signal into a 4-20 mA output proportional to axial shaft position. Option 06 specifies a 0.6-0-0.6 mm full-scale range, 70 specifies a 7.0-meter system, 02 specifies bulkhead-screw mounting, and 05 selects the listed multi-agency approval package. It is intended for machinery control integration on compact rotating equipment. Before ordering, confirm the NSv sensor chain, loop supply, mounting, alarm logic, approval labels and engineering units.
| Manufacturer | Bently Nevada |
| Complete Part Number | 991-06-70-02-05 |
| Product Type | 991 Thrust Transmitter |
| Series | 991 Thrust Transmitter |
| Model Configuration | 0.6-0-0.6 mm full scale; 7.0 m system; bulkhead screws; multi-agency approval option 05 |
| Product Condition | Contact us to confirm. |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | Contact us to confirm. |
| Compatibility | Requires a matching 3300 NSv probe and extension cable configured for a 7 m system. Confirm the control-system input and loop design. |
| Certification | Option 05 lists CSA Division 2, ATEX Zone 0, ATEX Zone 2 and ABS maritime approval; verify actual markings. |
| Warranty | Contact us to confirm. |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| 991 | Two-wire loop-powered thrust transmitter |
| 06 | 0.6-0-0.6 mm full-scale range |
| 70 | 7.0 m (23.0 ft) system length |
| 02 | Bulkhead-screw mounting |
| 05 | CSA Division 2, ATEX Zone 0/2 and ABS approval option |
System-level values apply only when required components and installation conditions match the manufacturer documentation.
| Sensor input | Matching 3300 NSv proximity probe and extension cable |
| Supply | +12 to +35 Vdc at transmitter terminals |
| Signal output | 4 to 20 mAdc over the specified full-scale range |
| Loop configuration | Two wire |
| Typical accuracy | Within +/-1.5% over full scale under the published test condition |
| Maximum loop resistance | 1,000 ohms including cable at 35 Vdc |
| Current limiting | 23 mA typical |
| Diagnostics | PROX OUT, COM and coaxial dynamic/gap output |
Verify the full-scale range, 7-meter NSv probe and extension-cable system, bulkhead mounting, +12 to +35 Vdc supply, receiving input resistance and alarm logic. Confirm transmitter and probe labels, approval markings, wiring and installation zone. Machinery alarming and shutdown logic occur in the receiving control system.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
